Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years
Deeply committed to high-performance thermal-break windows and doors.
|
 |
100,000㎡
Four modern intelligent manufacturing bases.
|
 |
200+
High-performance thermal-break window and door technology patents.
|
 |
≥97%
3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass.
|
Sales Colo
| English Label |
Color Options |
| Indoor Color |
Starry Sky Gray, Cream White, Mocha Brown, Elegant Black |
| Outdoor Color |
Starry Sky Gray, Cream White, Mocha Brown, Elegant Black |
Profile Information
| English Label |
Specifications |
| Material Thickness |
Wall thickness of frame (inside & outside): 2.0mm; Local wall thickness: 1.6mm; Sash wall thickness: 1.4mm |
| Glass Sash Width - Thickness |
Sash width: 73.2mm; Sash thickness: 65.8mm |
| Screen Sash Width - Thickness |
Sash width: 48mm; Sash thickness: 30.3mm |
| Frame Width - Height |
Frame wall occupancy: 115mm; Frame width: 41mm |
Brand Information
| English Label |
Specifications |
| Name |
Supplier Name |
| Profiles |
Boguan |
| Thermal Insulation Strips |
Luterdam |
| Sealing Strips |
Fanxiang |
| Hardware |
Rinas Hardware Fittings + Rinas Hardware Handles |
| Original Glass Sheets |
Xinyi |

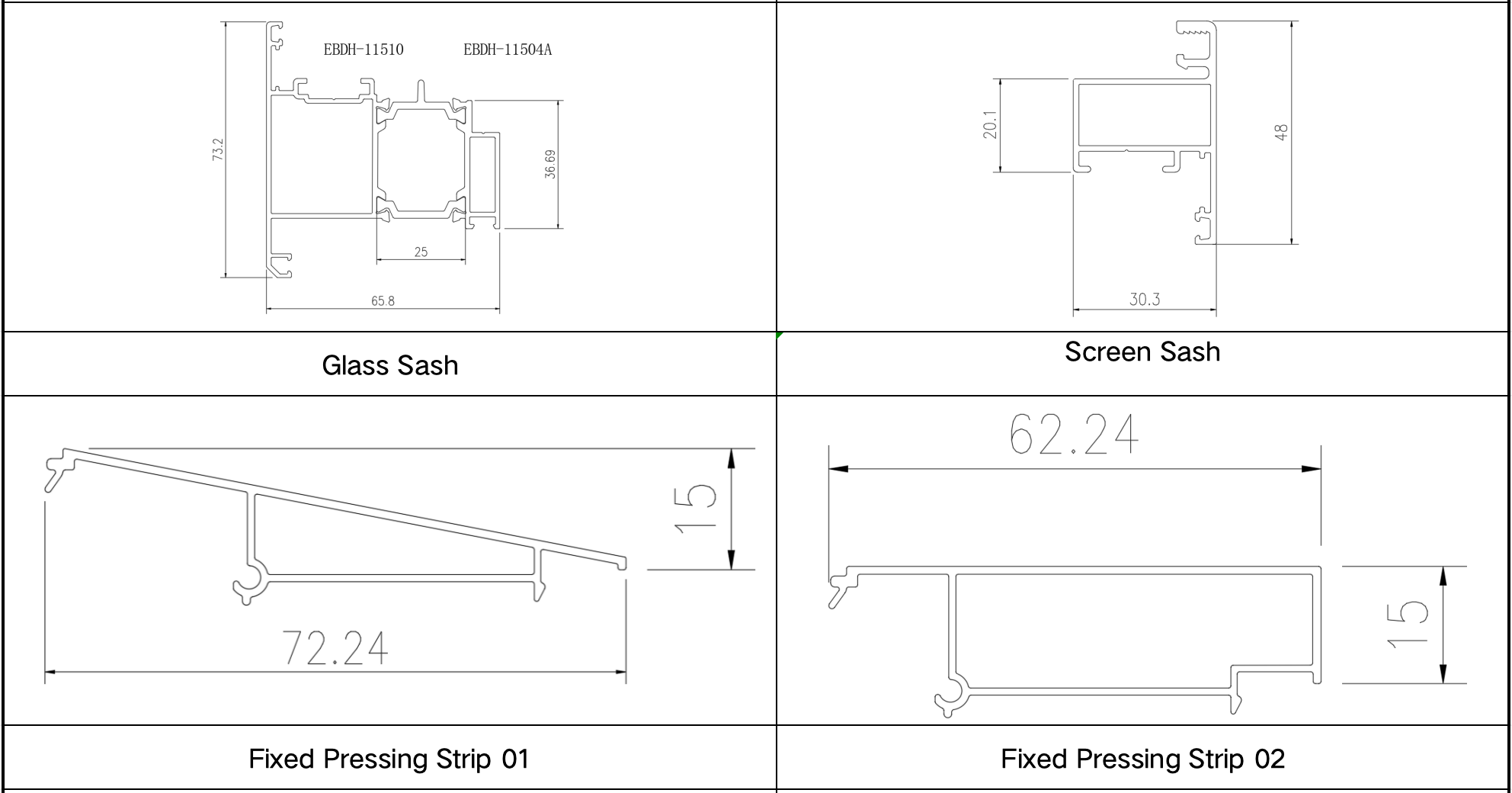

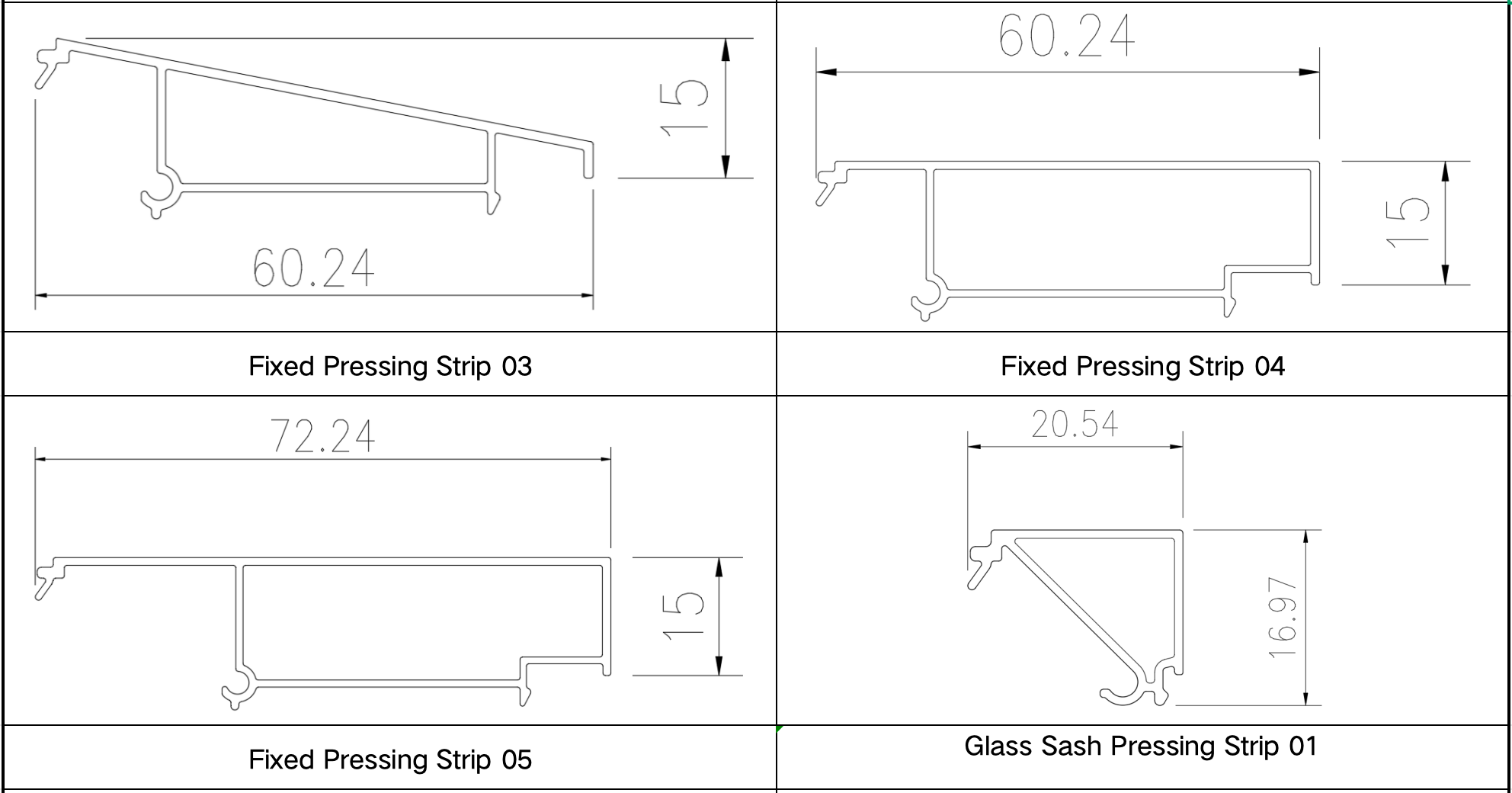

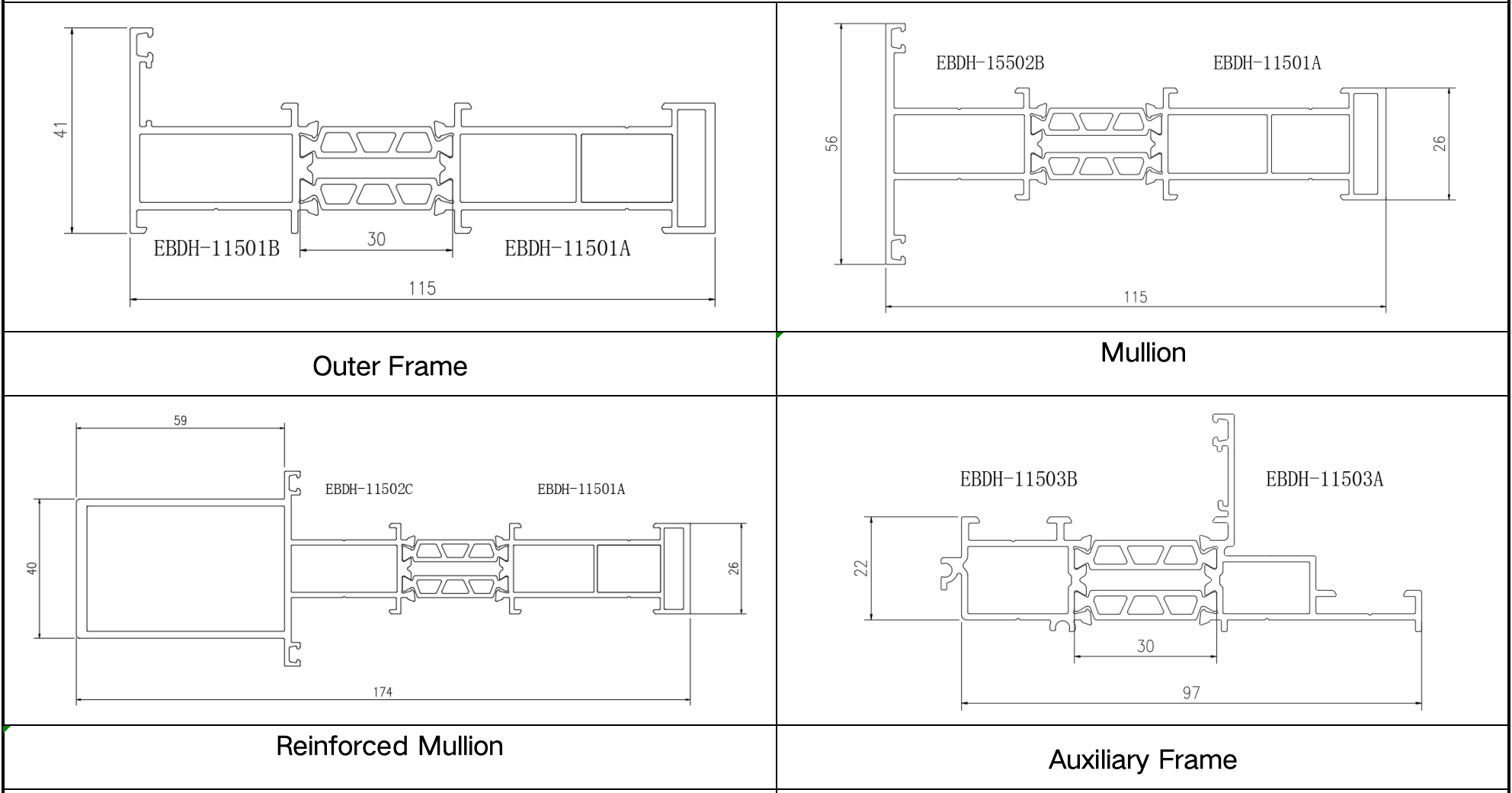

Profile Display Drawing

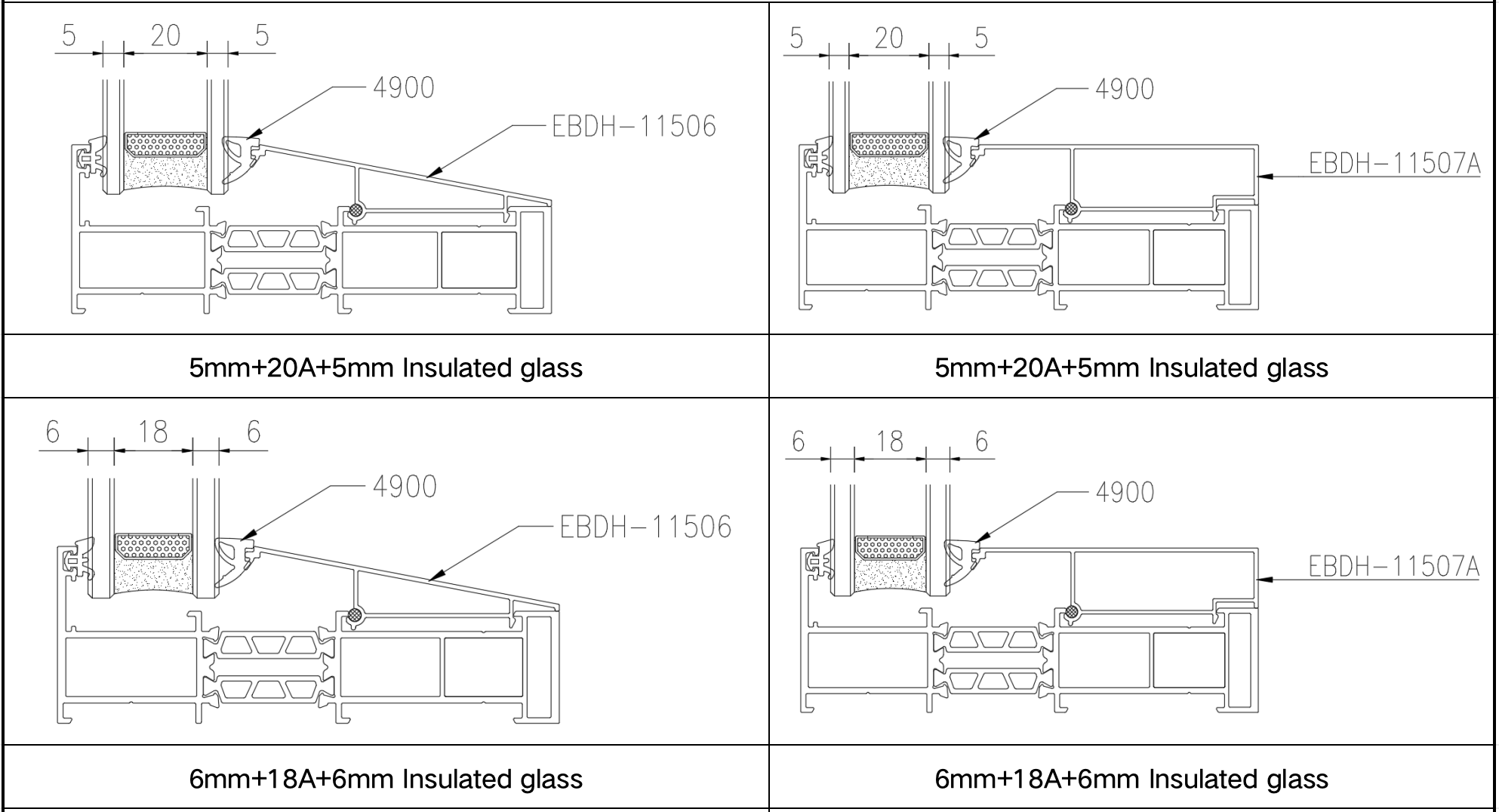

Glass Configuration
| Configuration |
Casement Glass |
| Standard for Double-glazing Solution |

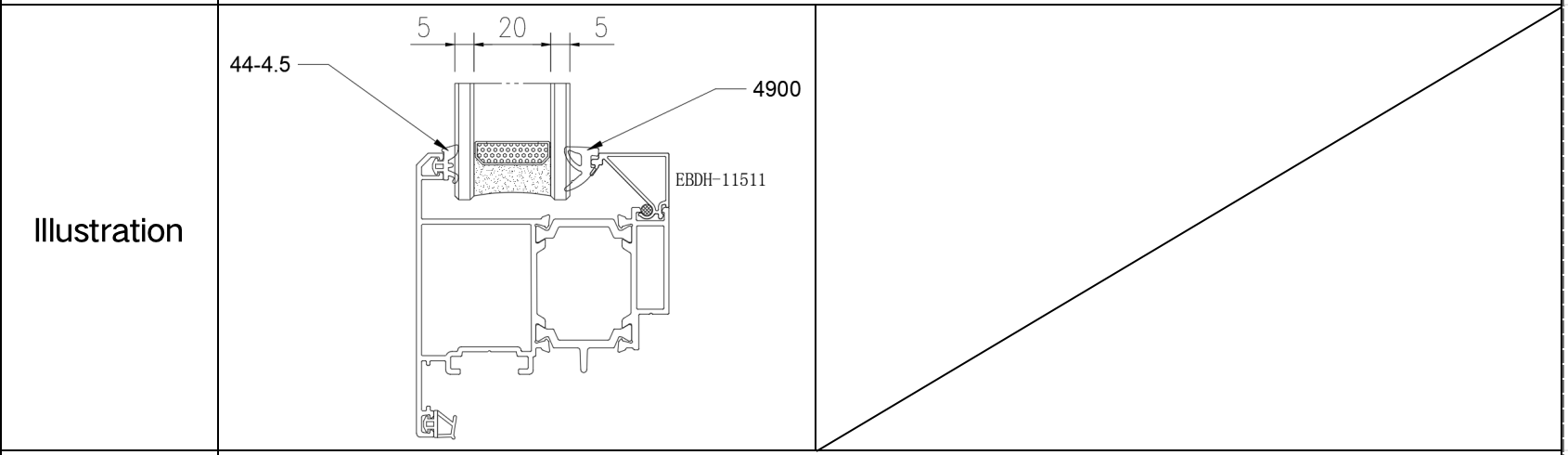

5mm+20A+5mm insulated glass, internal & external glazing tapes, glazing bead adopts EBDH-11511 |
| Configuration |
Fixed Glass |
| Standard for Double-glazing Solution |
5mm+20A+5mm insulated glass (30mm thick), internal & external glazing tapes, glazing bead: beveled edge EBDH-11506 / straight edge EBDH-11507A |
| Optional for Double-glazing Solution |
6mm+18A+6mm insulated glass (30mm thick), internal & external glazing tapes, glazing bead: beveled edge EBDH-11506 / straight edge EBDH-11507A |
| Optional for Double-glazing Solution |

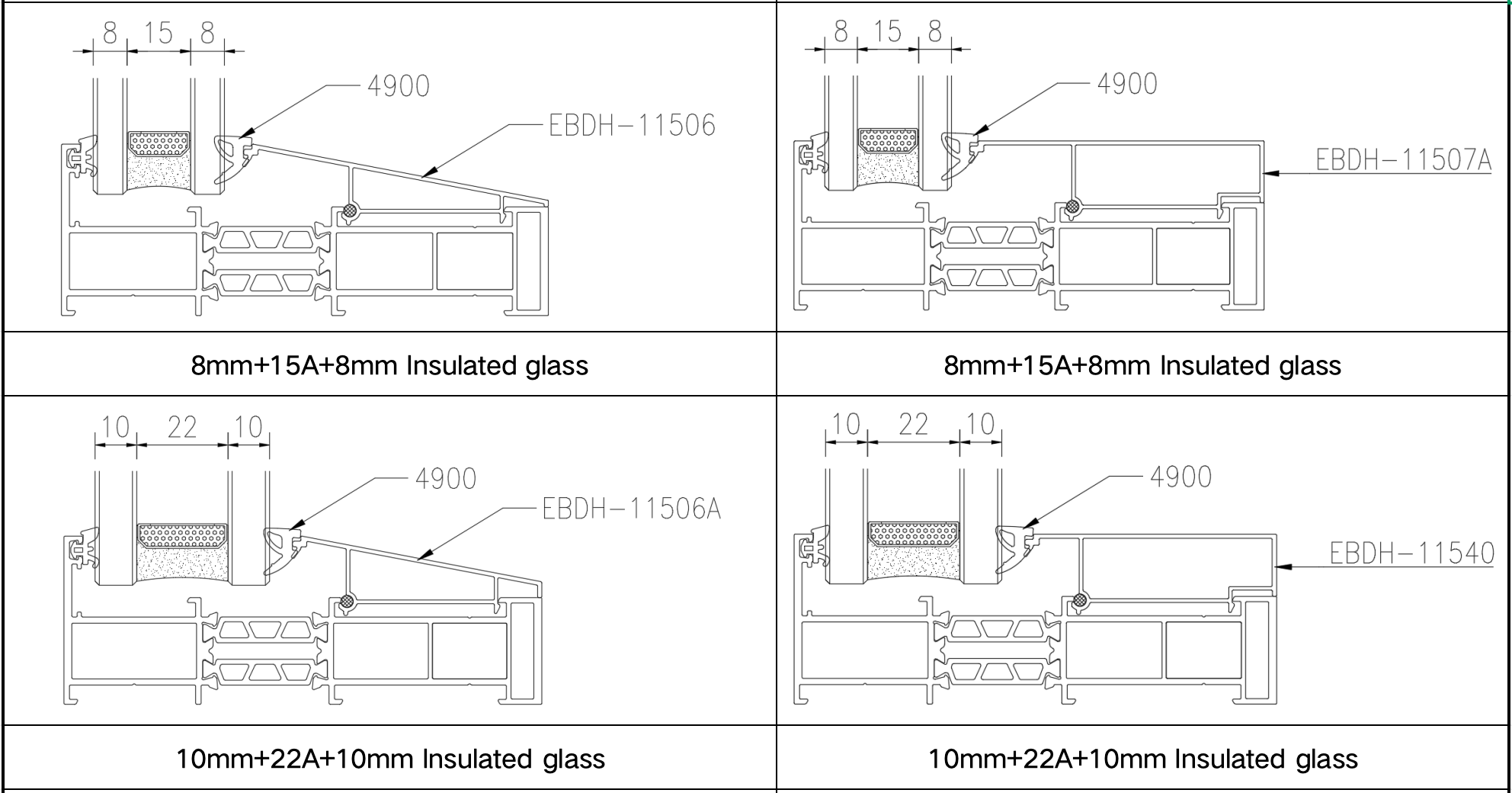

8mm+15A+8mm insulated glass (31mm thick), internal & external glazing tapes, glazing bead: beveled edge EBDH-11506 / straight edge EBDH-11507A |
| Optional for Double-glazing Solution |
10mm+22A+10mm insulated glass (42mm thick), internal & external glazing tapes, glazing bead: beveled edge EBDH-11506A / straight edge EBDH-11540 |
| Optional for Double-glazing Solution |

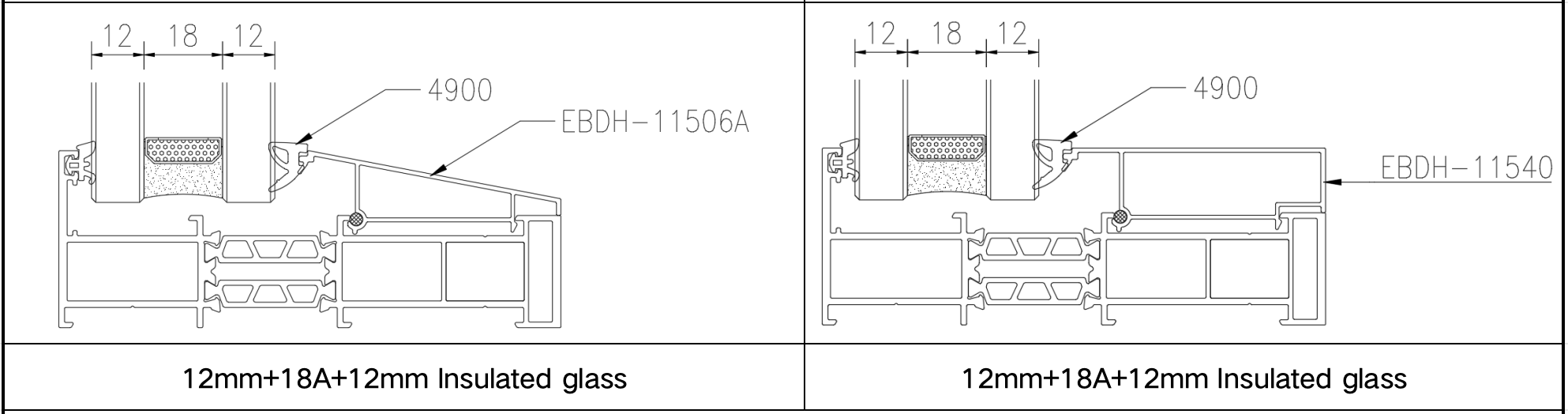

12mm+18A+12mm insulated glass (42mm thick), internal & external glazing tapes, glazing bead: beveled edge EBDH-11506A / straight edge EBDH-11540 |
| Optional for Double-glazing Solution |
5mm+27A+4mm insulated glass (37mm thick), internal & external glazing tapes, glazing bead: straight edge EBDH-11507 |
 |
 |
High-rise large glass requires review; consult technical department for special specifications
Basic Technical Requirements and Parameters
| Category |
Details |
| Standard Configuration |
1) Standard: Outward casement (glass outside & screen inside)
2) Standard: RENAS hardware internal components + RENAS external components (Black/Silver)
3) Screen sash: Standard 0.25 high-definition mesh (Note: Other mesh types are not available for selection temporarily)
4) Standard: Integrated vulcanized welded duckbill gasket
5) Standard: End milling machine for rounded corners
6) Standard: Size recommendation (sash width: 450-700mm, sash height: 600-1500mm). Handle height shall not be less than 280mm (based on sash height). (Load capacity: 45KG). Lifting blocks shall be added when sash width ＞ 550mm |
| Optional Configuration |
1) Fixed guardrail, opening guardrail
2) Child limiter
3) Strength calculation for oversized glass shall be conducted according to the environment, and mullions shall be selected based on the strength calculation results |
| Process Requirements |
1) 45° miter joints shall be coated with section adhesive; section adhesive shall be applied to the joints of outer frame and mullion, and waterproof adhesive shall be applied to the joints of outer frame and mullion; glue injection process shall be adopted for new corner brace screws |

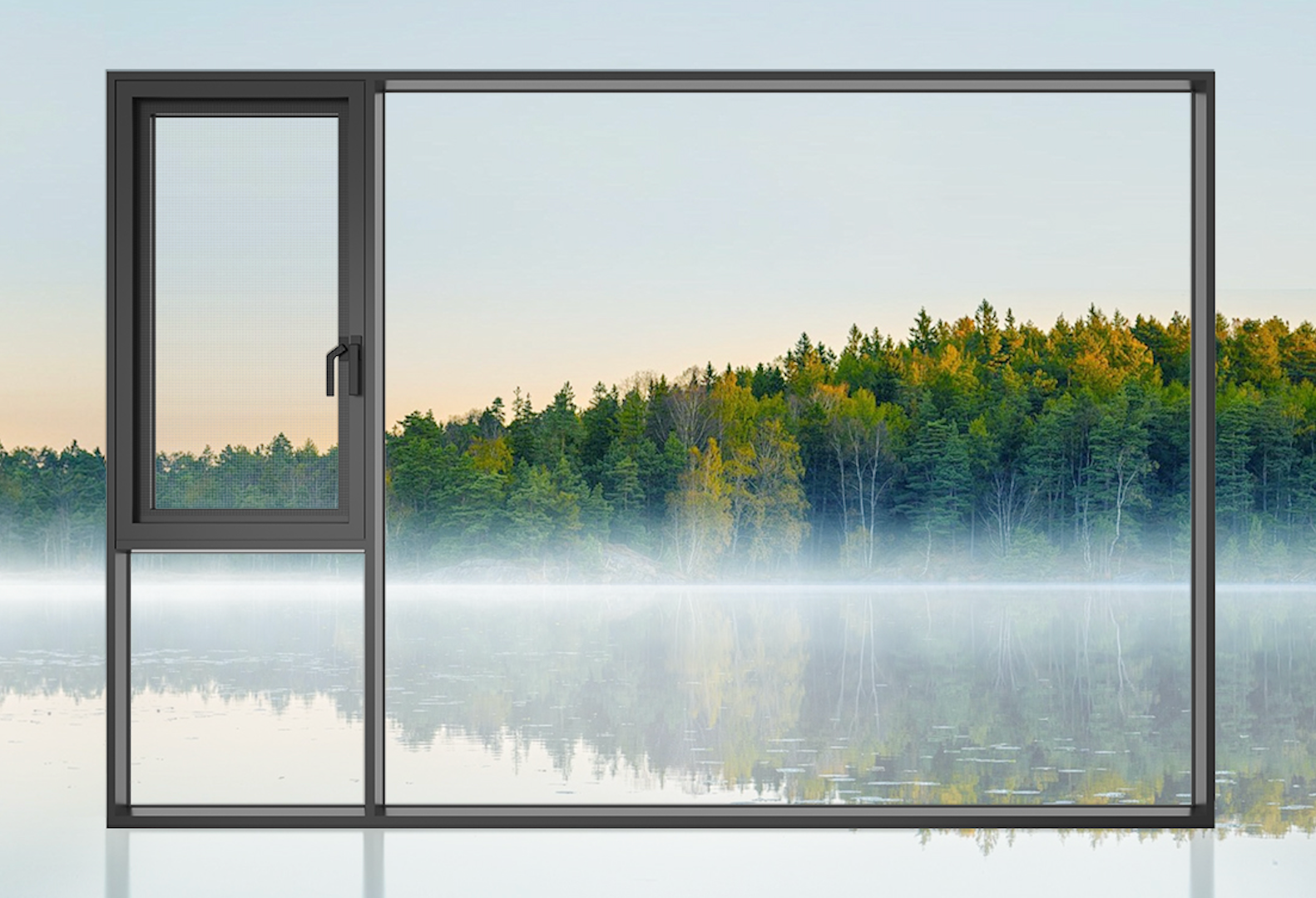

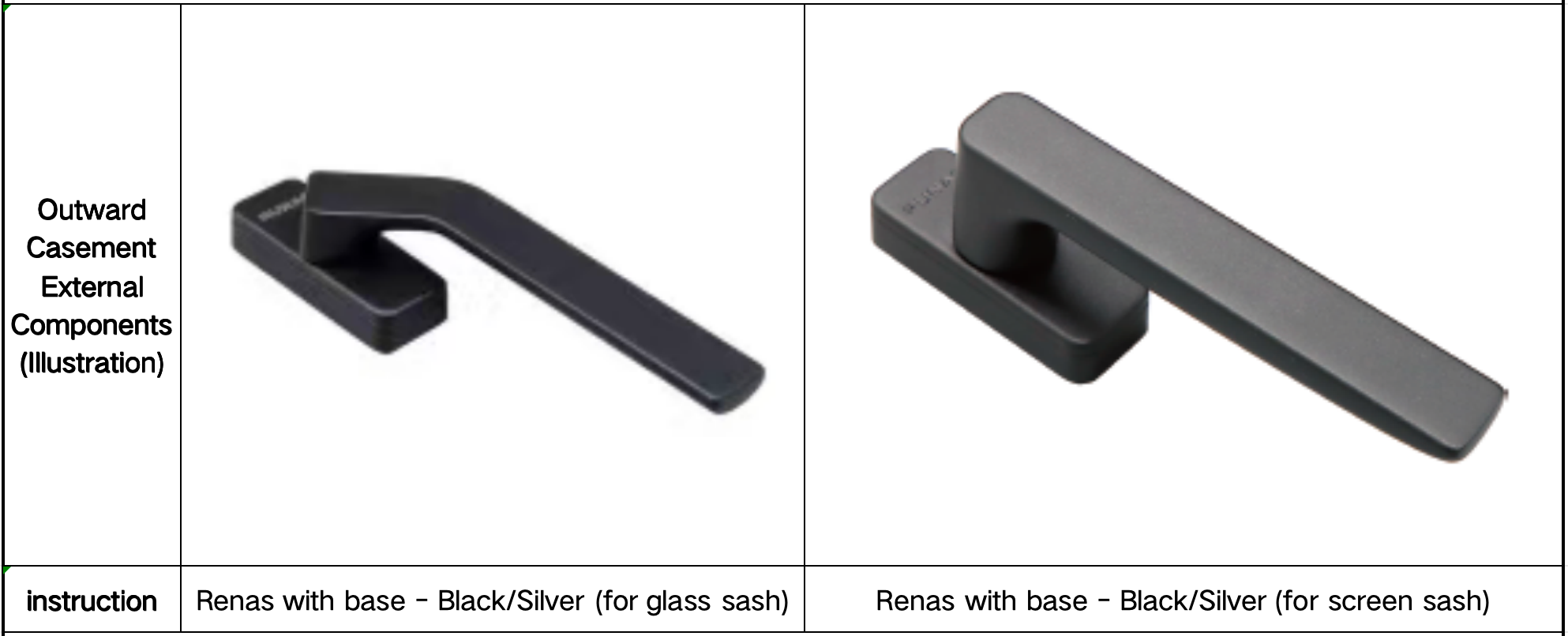

Appearance & Handle Photos

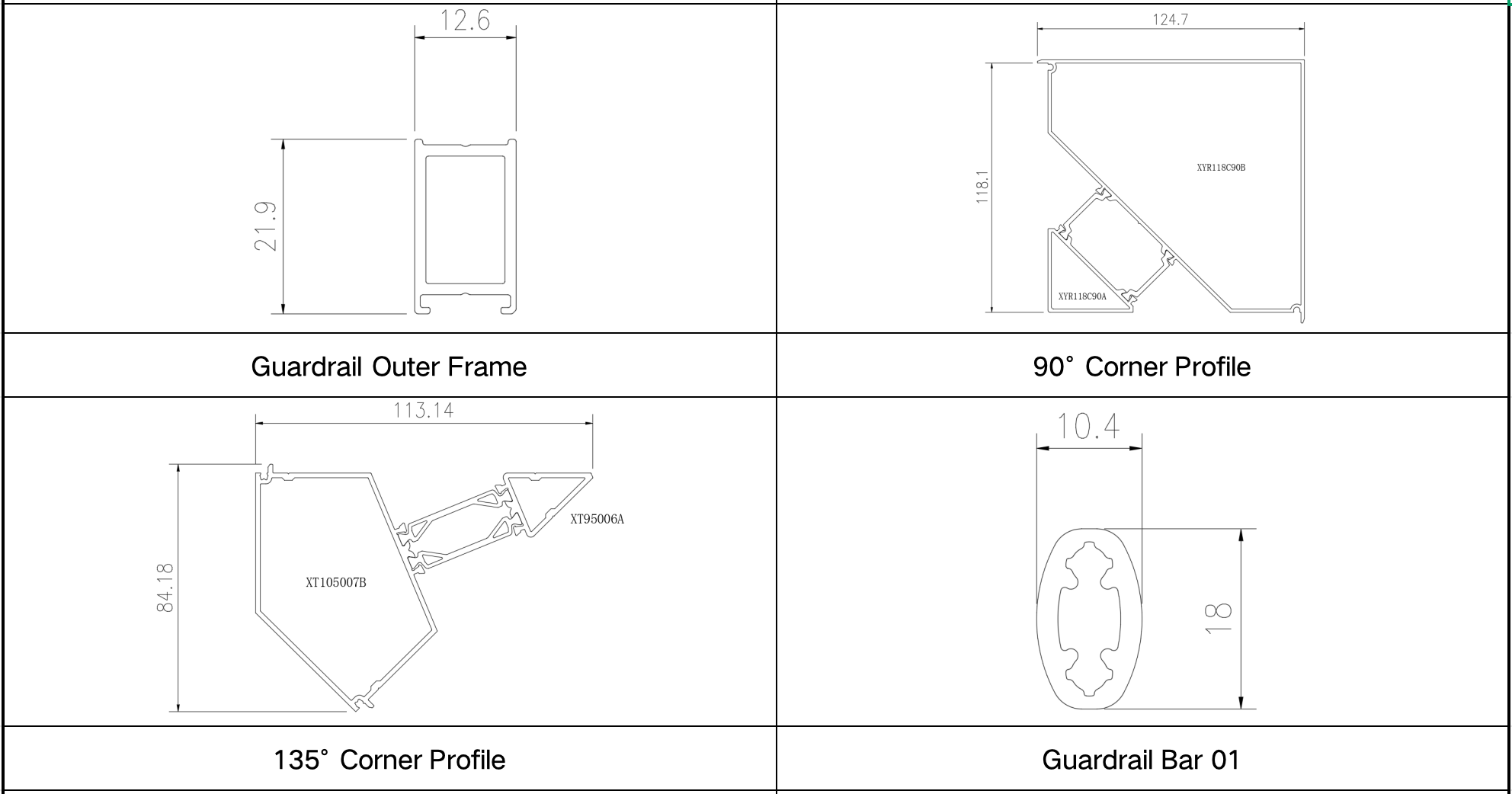

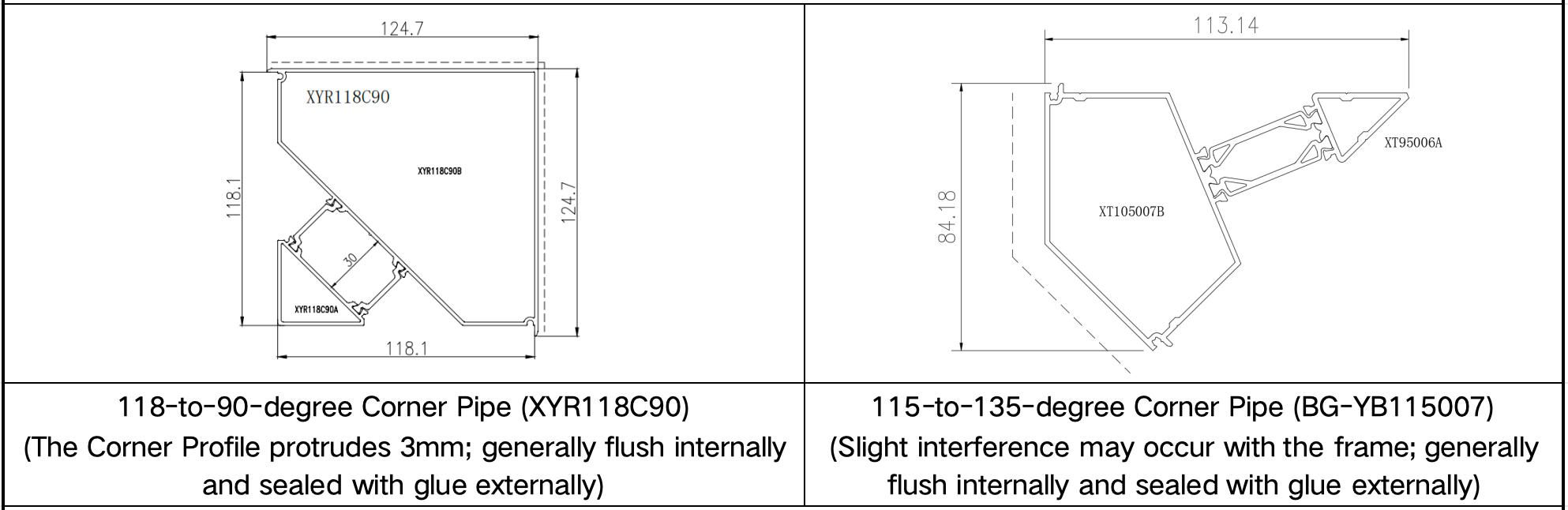

Corner Profile
| Product Features |

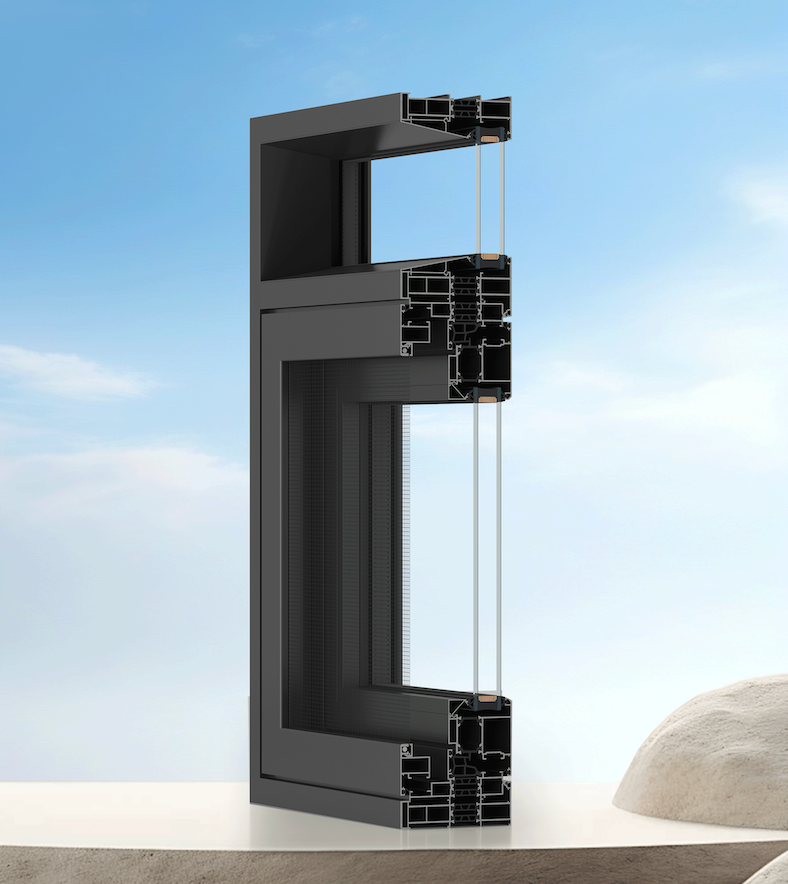

EBP115 Outward-opening Integrated Window |
| 1 |

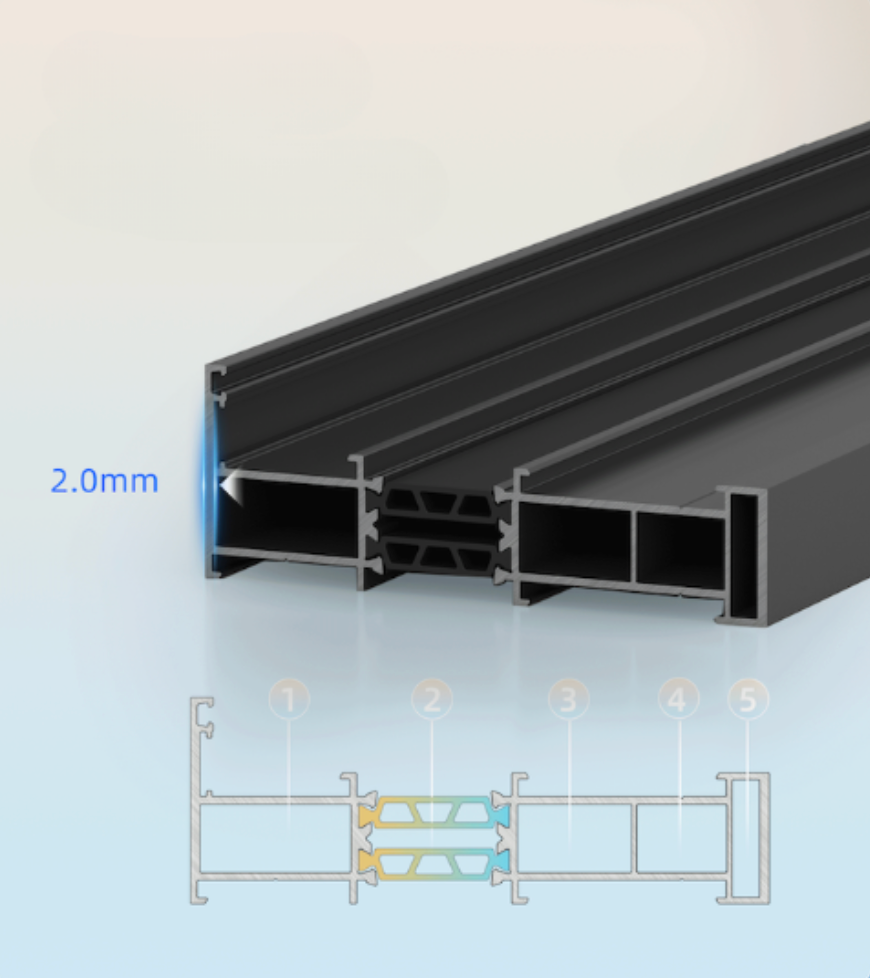

Frame local wall thickness: 2.0mm |
| 2 |
Frame and sash are flush internally and externally, featuring a simple and stylish design |
| 3 |

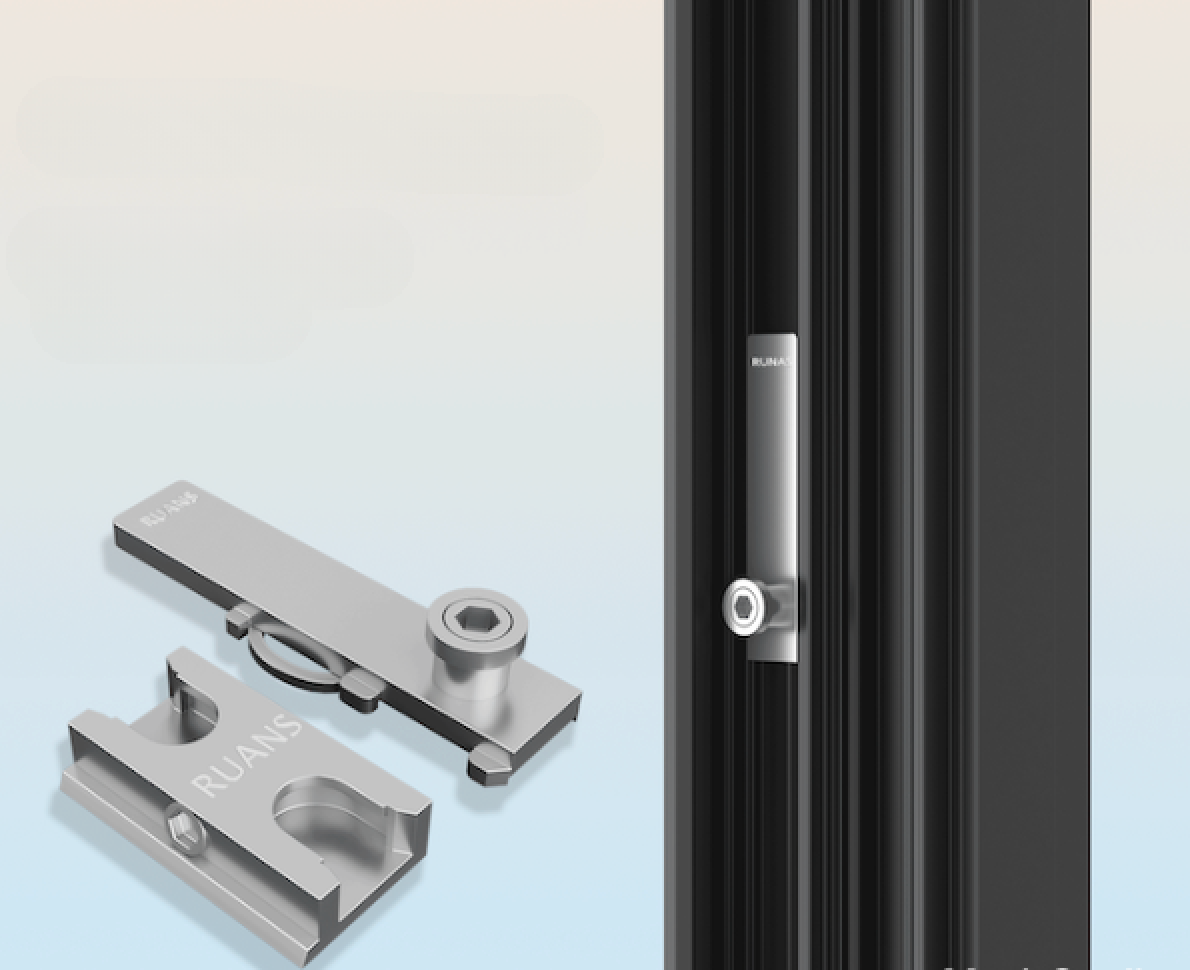

Mushroom-head locking points and strike plates, combined with anti-dropping devices, ensuring safety and reliability |
| 4 |
5-chamber frame structure, guaranteeing profile strength |
| 5 |
Glue-injection corner brace connection process, enhancing corner joint strength |
| 6 |

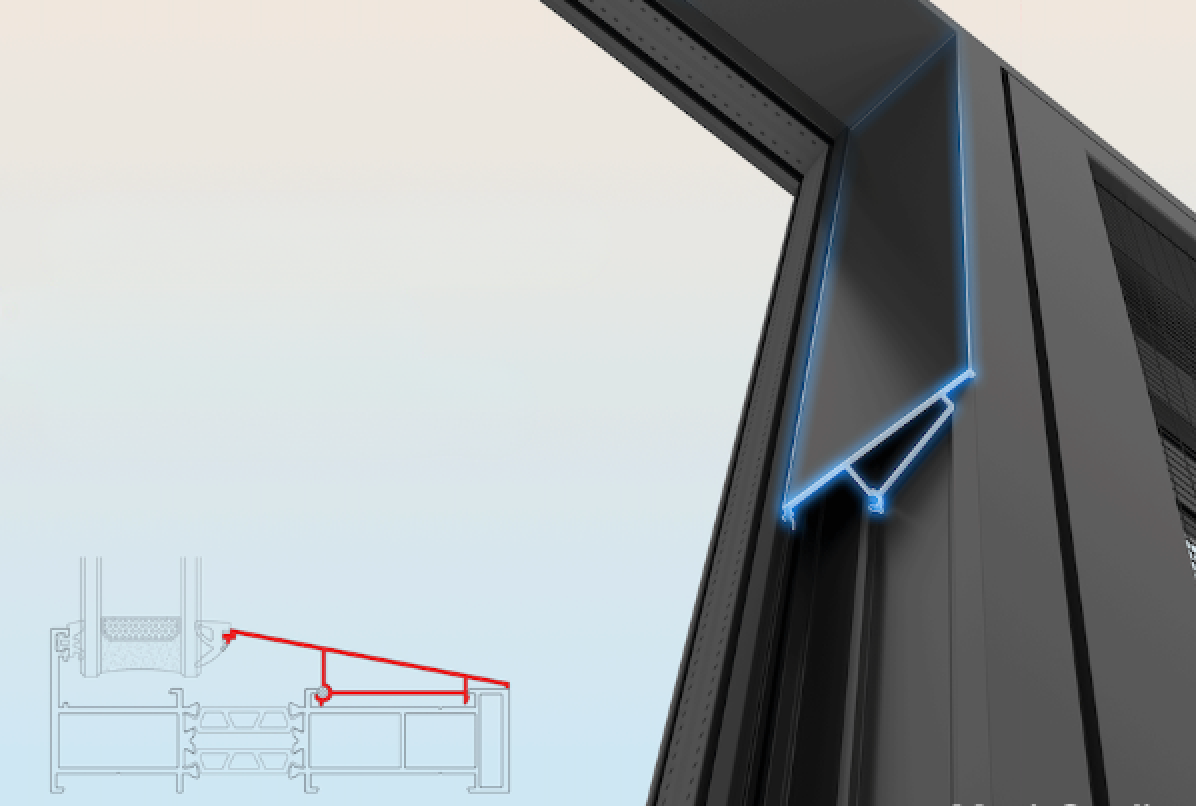

Full closed-chamber glazing beads for frame and sash, ensuring safety |
| 7 |

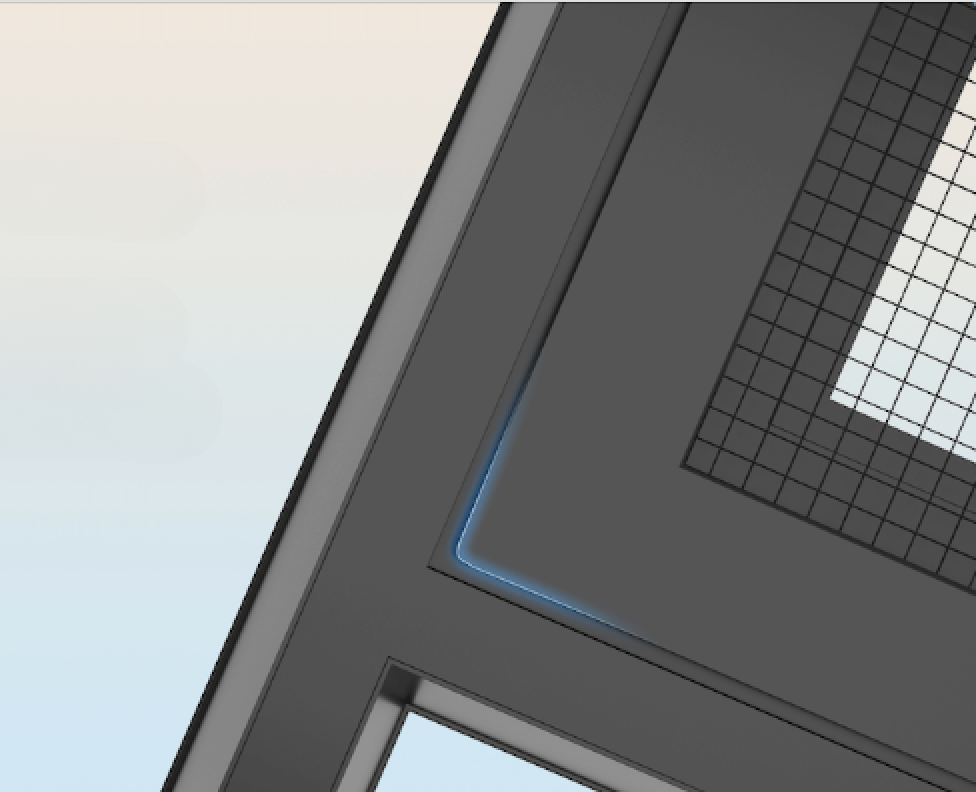

Screen sash adopts integrated machine + rounded corner process + C-channel corner guards, preventing scratches, elegant and durable |
| 8 |
Optional fixed guardrails and child safety limiters, ensuring safety |
| 9 |

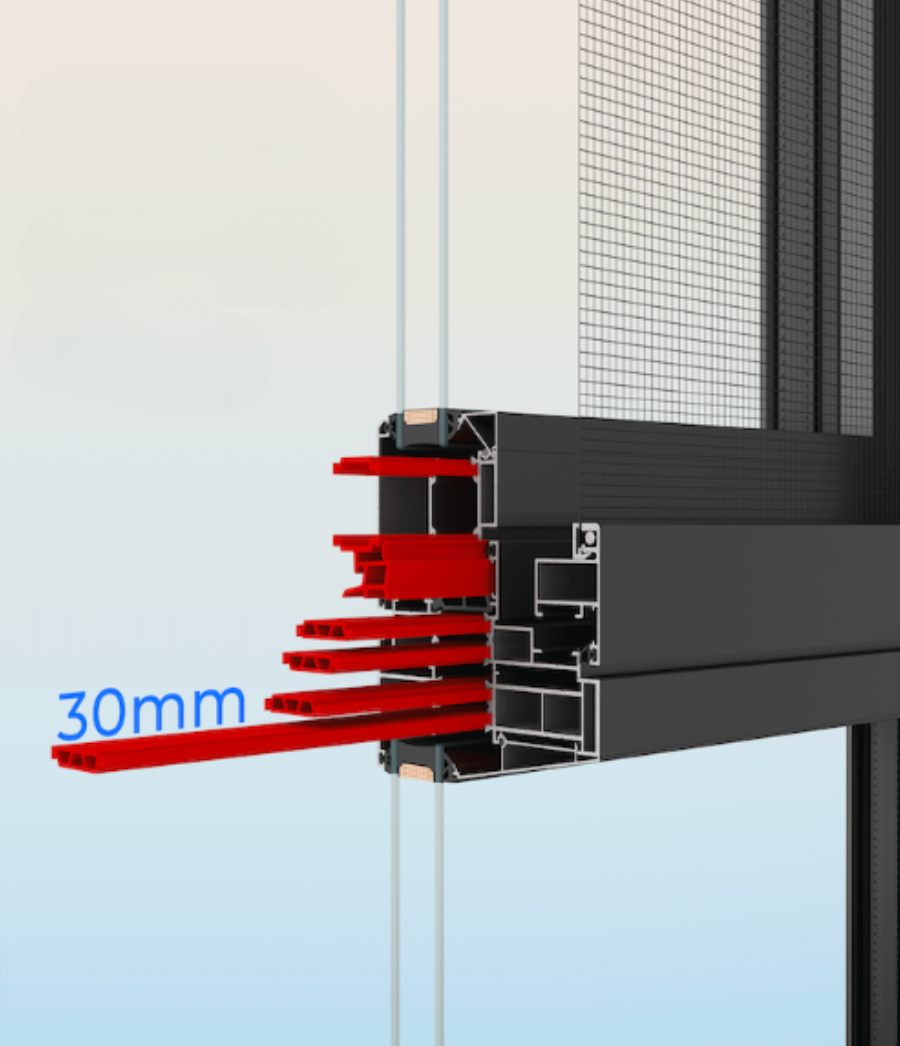

30mm-wide multi-chamber thermal insulation strip for frame, with excellent thermal insulation performance |
| 10 |
Standard equipped with high-load-bearing RENAS hardware from Germany |
| 11 |

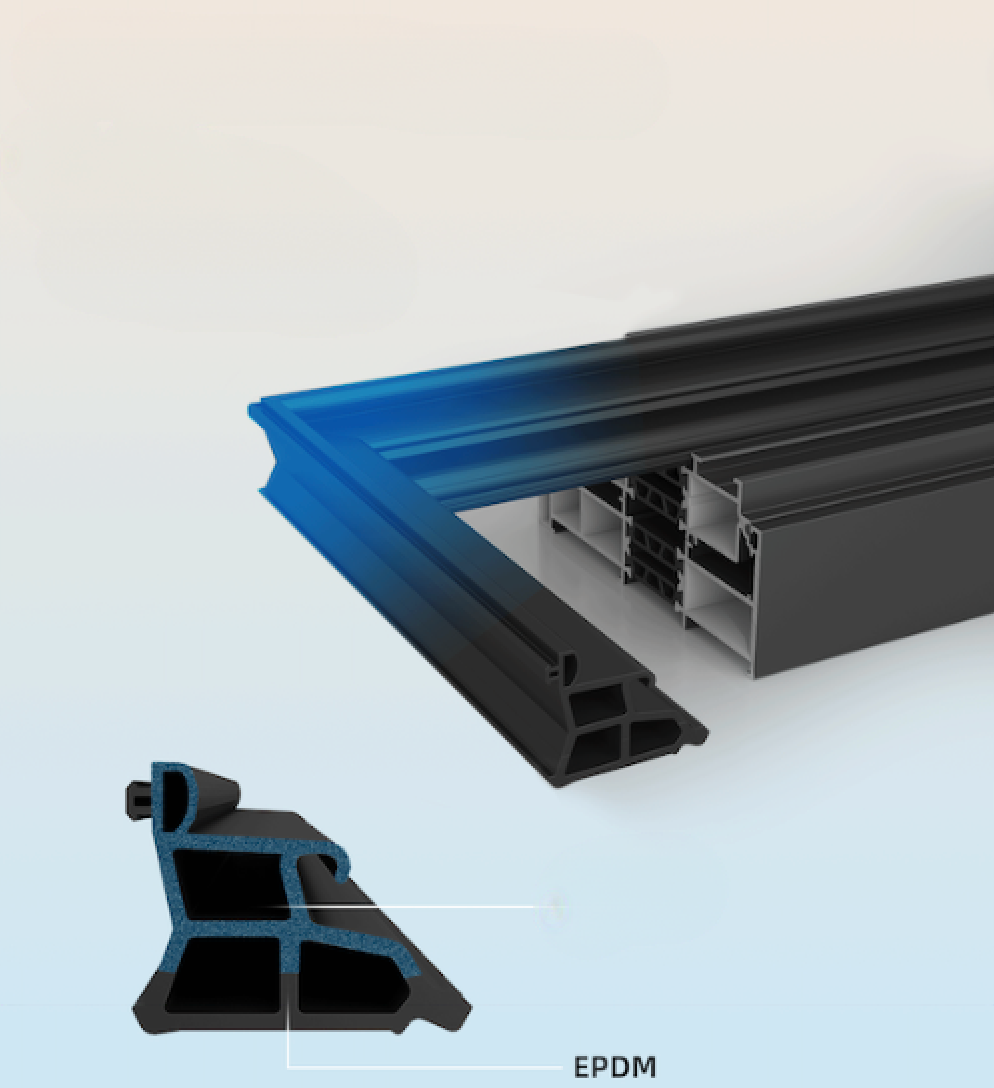

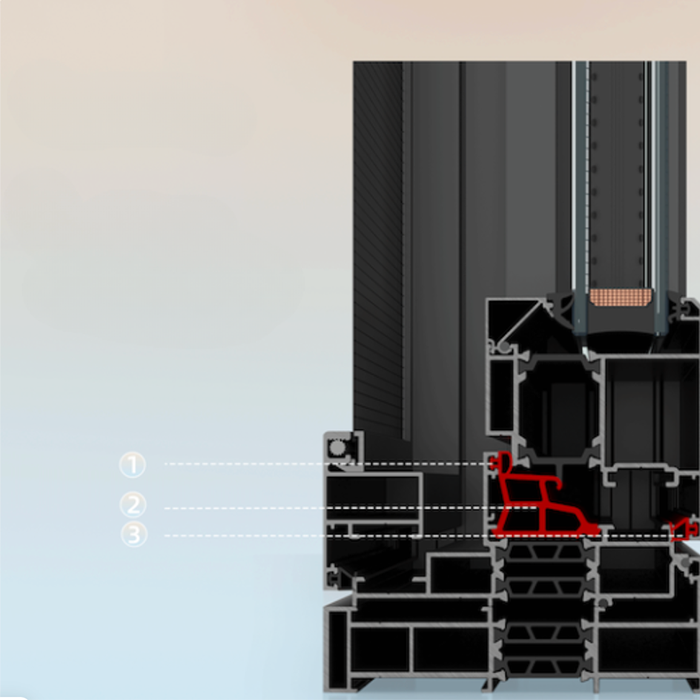

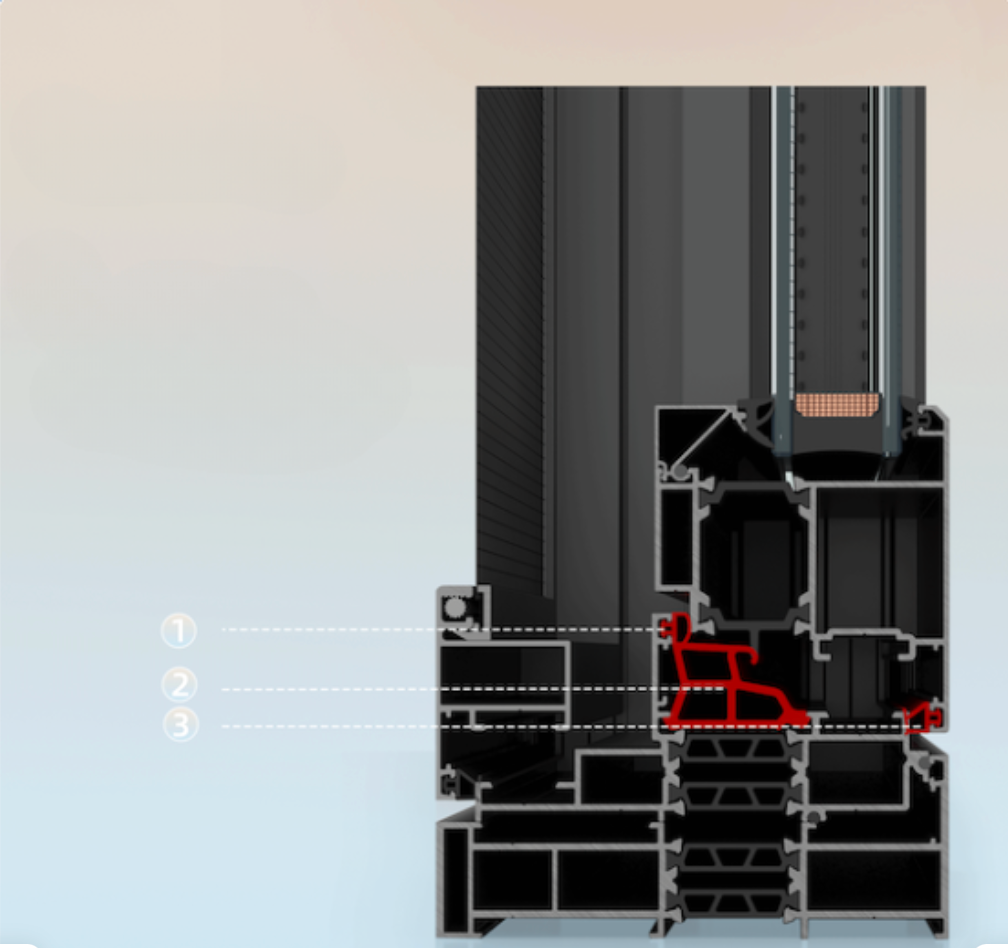

3 seals at the opening position + integrated vulcanized welded gaskets, providing excellent sealing performance |
| 12 |
2 seals for the adapter frame, preventing rainwater penetration |
| 13 |
Large water collection tank, improving water storage capacity |
 |
 |
Order Taking Notes & Technical Parameters
1.Before window and door design, it is necessary to know the thickness of the installation wall and select the corresponding series and wrapping sleeves.
2.Clearly indicate the internal and external colors when placing an order.
3.The glass specifications must be specified when placing an order. In the absence of special instructions, all products shall be manufactured according to the standard - equipped glass.
4.For construction scenarios where transportation is mainly by elevator or staircase, a reasonable mullion - joint design can be adopted.
5.The opening sash must be strictly controlled within the reasonable design range; otherwise, hardware installation may not be possible or potential safety hazards may arise.
6.Technical Parameters—The data and information shall be subject to the updated information and version of the company.
