Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
Sales Colors
| Item | Color Options |
|---|---|
| Standard Colors | Kraft Black, First Love White |
| Optional Colors | Dopamine · Elegant Green, Dopamine · Northern Mountains, Dopamine · Bordeaux Red, Morandi · Creamy Coffee |
| Item | Dimension Data |
|---|---|
| Project Name | - |

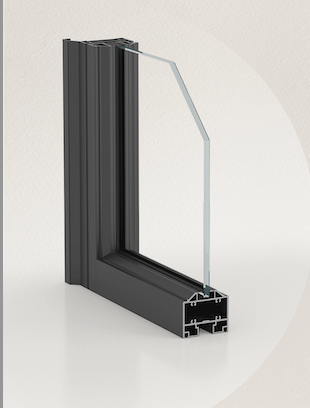

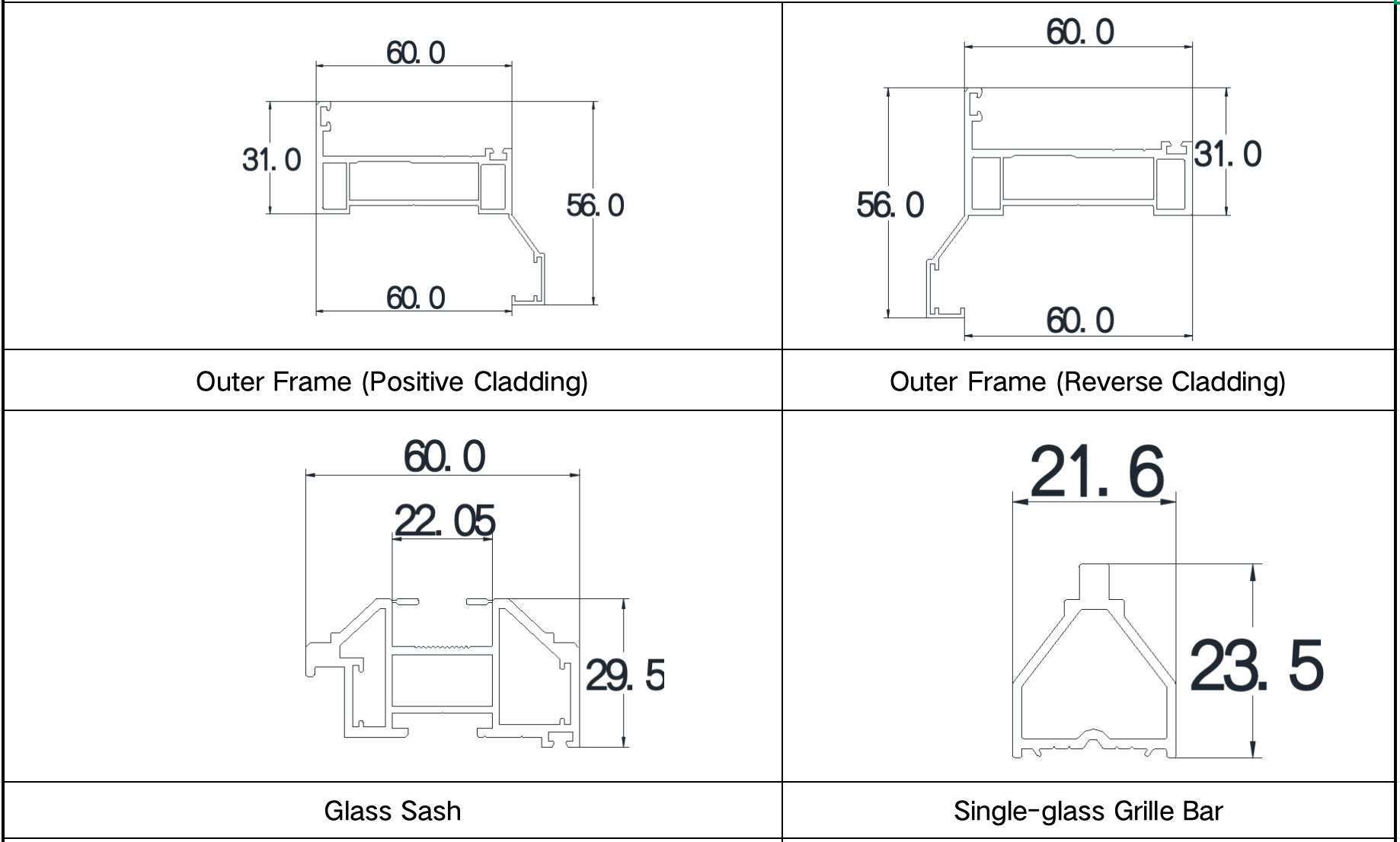

| Main Material Thickness | 2.0 mm |

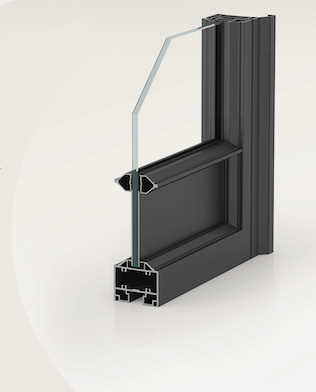

| Sash Width - Sash Thickness | Sash width: 29.5 mm, Sash thickness: 60 mm, Glass notch: 10.5 mm for single glass, 22 mm for insulated glass |

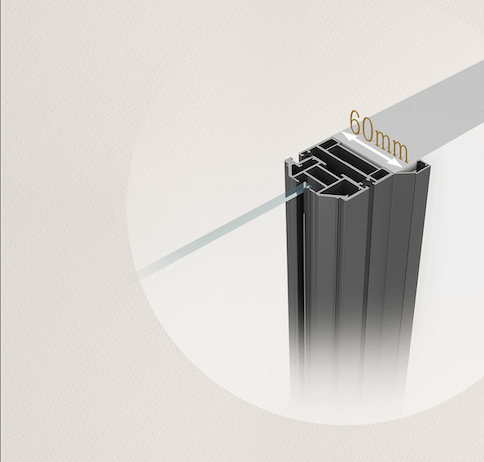

| Frame Width | Frame wall occupancy: 60 mm, Frame wall attachment: 25 mm |
 |
 |
| Configuration | Glass Type |
|---|---|
| Standard | Opening Sash Glass: Single glass - 8mm clear tempered glass as standard, sealed with glue inside and out. |
| Standard | Fixed Glass: Single glass - 8mm clear tempered glass as standard, sealed with glue inside and out. |
 |
 |
| Standard Configuration | Details |
|---|---|

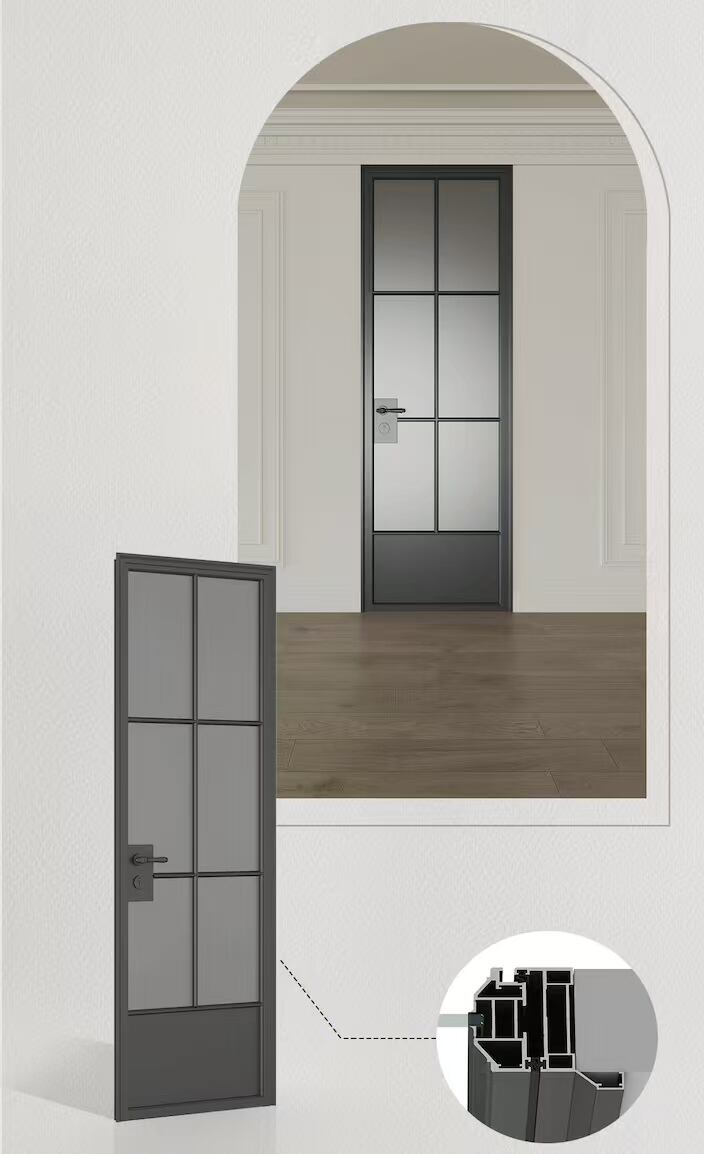

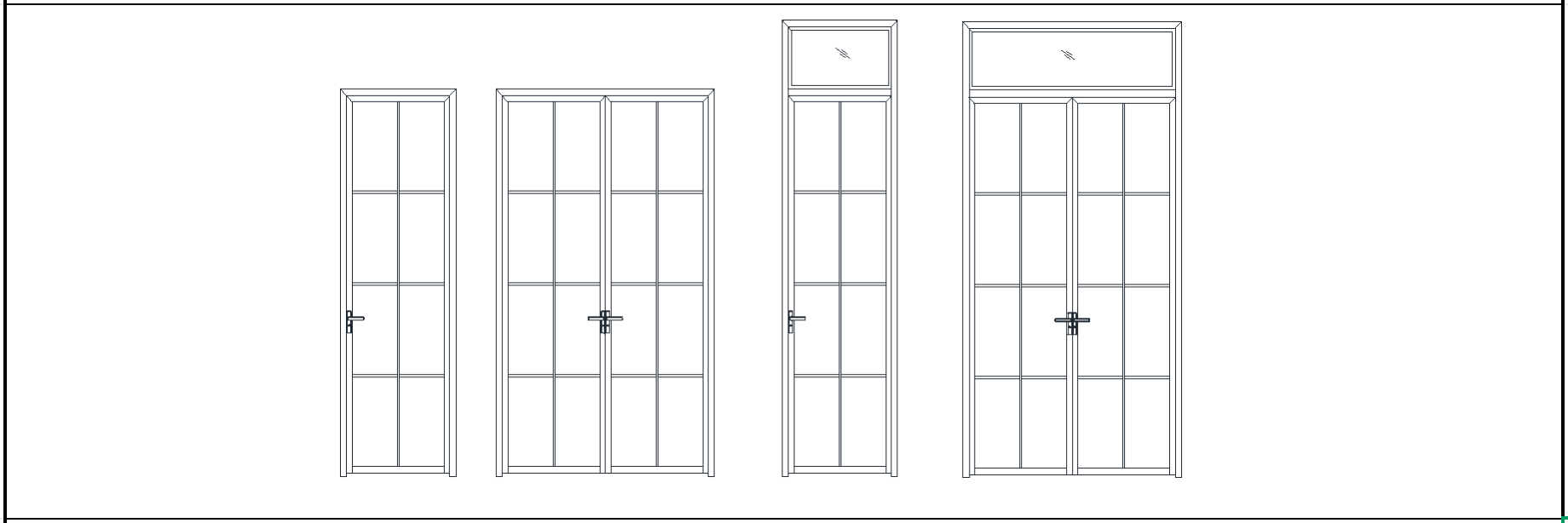

| Door Types | Standard: Exterior casement door, interior casement door, interior-clad exterior casement door, interior-clad interior casement door, exterior double casement door, interior double casement door, interior-clad exterior double casement door, interior-clad interior double casement door |

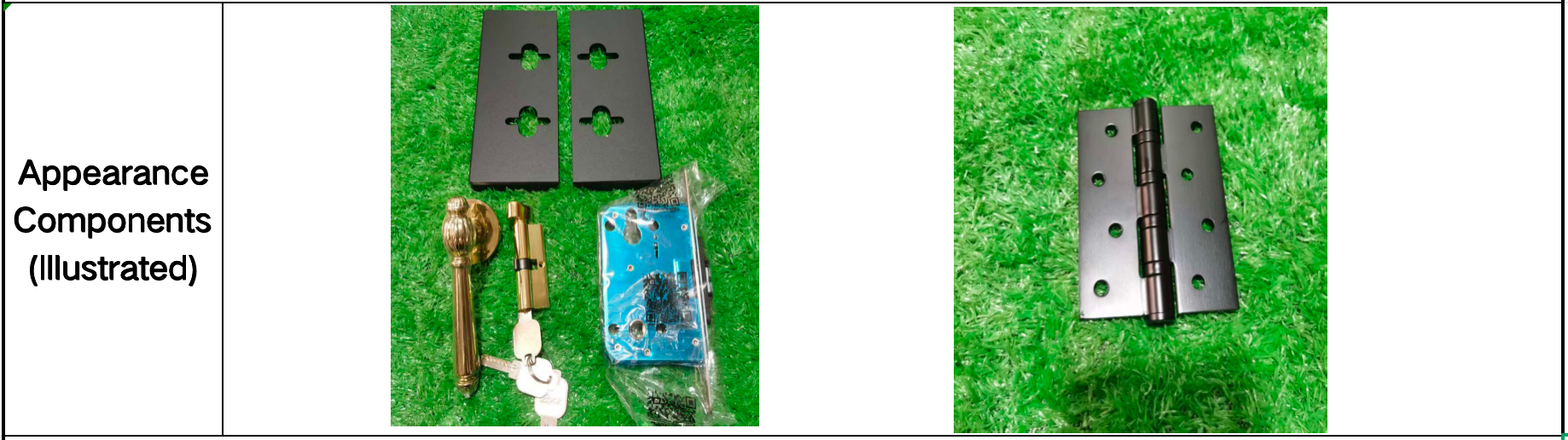

| Hardware | Standard: French-style handle + French-style hinge Colors: Black, Antique Bronze, Yellow Antique Bronze, PVD Bright Gold |
| Functions | Dimension limits for casement doors (sash width: 380–850 mm, sash height: 800–2200 mm, load capacity: 50 kg). Handle height: not less than 300 mm. For arched casement doors: the arch height must be equal to the radius. |
 |
 |
1.For the design of fixed window dimensions, the glass strength requirements as well as the feasibility of processing, transportation and installation shall also be taken into consideration. For extra-large glass, refer to the requirements specified in the extra-large insulated glass configuration.
2.Prior to door and window design, the thickness of the installation wall shall be clarified to select the corresponding series and cover trim.
3.Clearly indicate the color when placing an order.
4.The glass specifications must be specified in the order. If there is no special instruction, the production shall be carried out in accordance with the standard configuration of glass.
5.If the construction is mainly based on elevator or stair transportation, a reasonable combined frame design can be adopted.
6.The opening sash must be strictly controlled within the reasonable design range; otherwise, hardware installation may not be achievable or potential safety hazards may arise.
7.Technical Parameters—The data and information shall be subject to the updated version and information released by the company.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
