Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
Sales Colors
| Item | Color Options |
|---|---|
| Indoor Color | Starry Sky Gray, Cream White, Mocha Coffee, Elegant Black |
| Outdoor Color | Starry Sky Gray, Cream White, Mocha Coffee, Elegant Black |
| Item | Dimension Data |
|---|---|
| Main Material Thickness | 2.5–4mm |

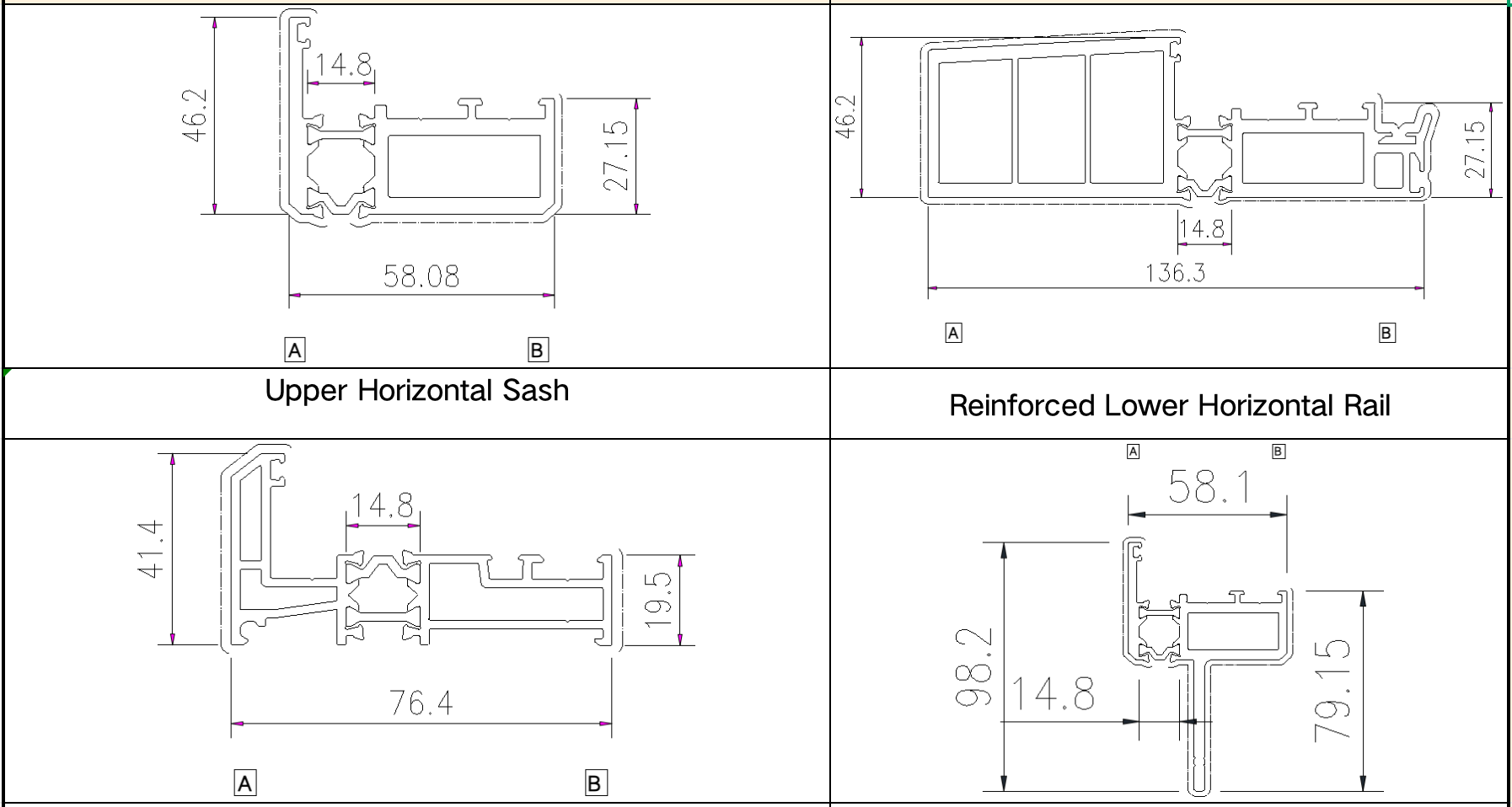

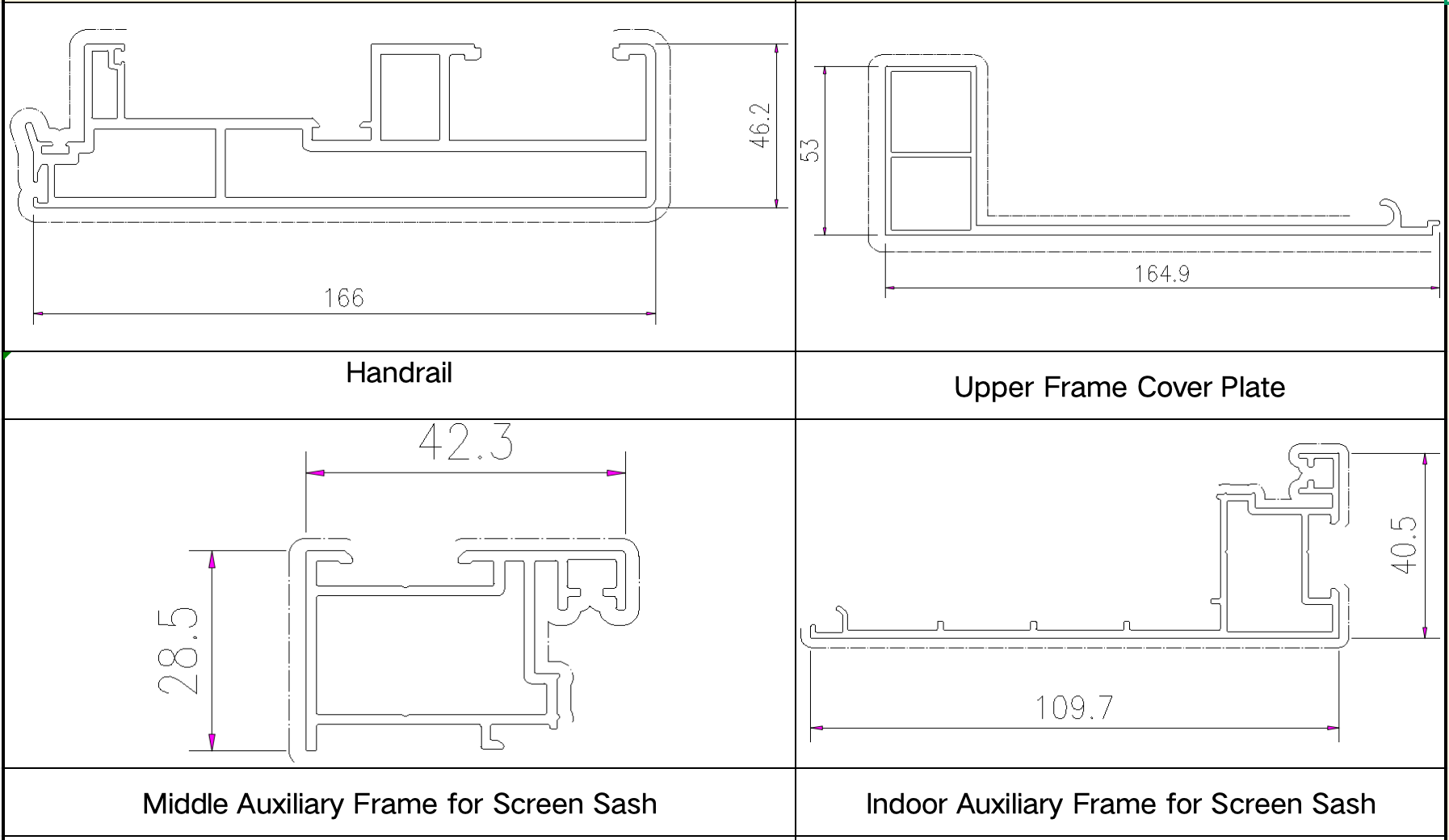

| Glass Sash Width - Thickness | 1- Upper Rail Width: 46.2mm, Upper Rail Thickness: 58mm 2- Side Sash Width: 98.2mm, Side Sash Thickness: 58mm 3- Reinforced Lower Rail Width: 136.2mm, Side Sash Thickness: 46.2mm 4- Handrail Width: 166mm, Handrail Thickness: 46.2mm |

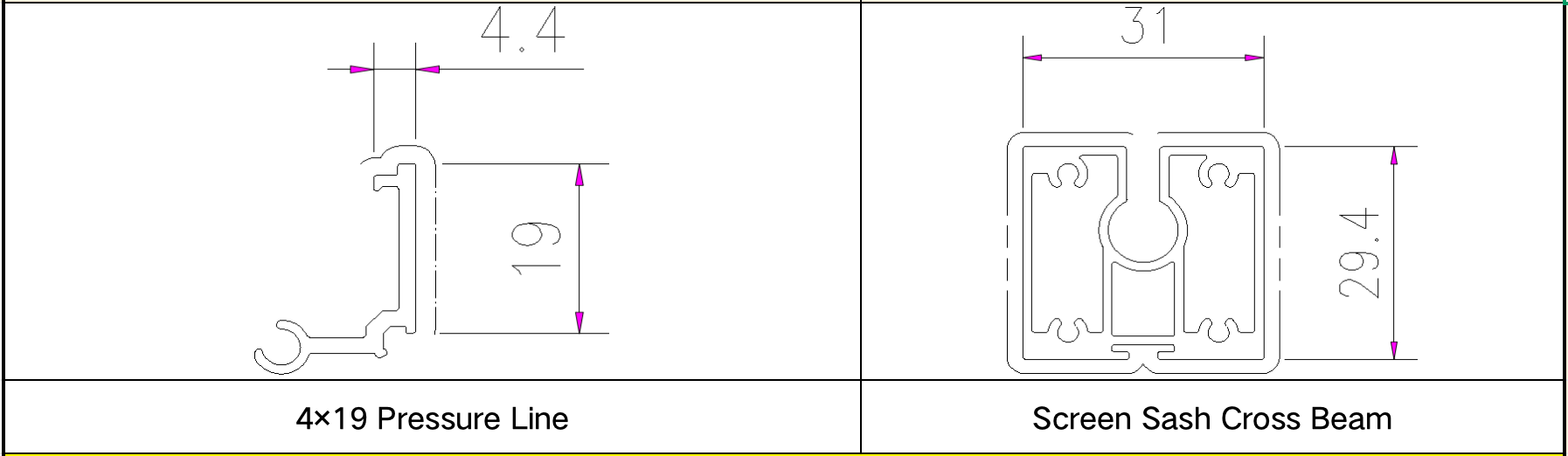

| Screen Sash Width - Thickness | 1- Screen Sash Beam Width: 29.4mm, Screen Sash Thickness: 31mm |

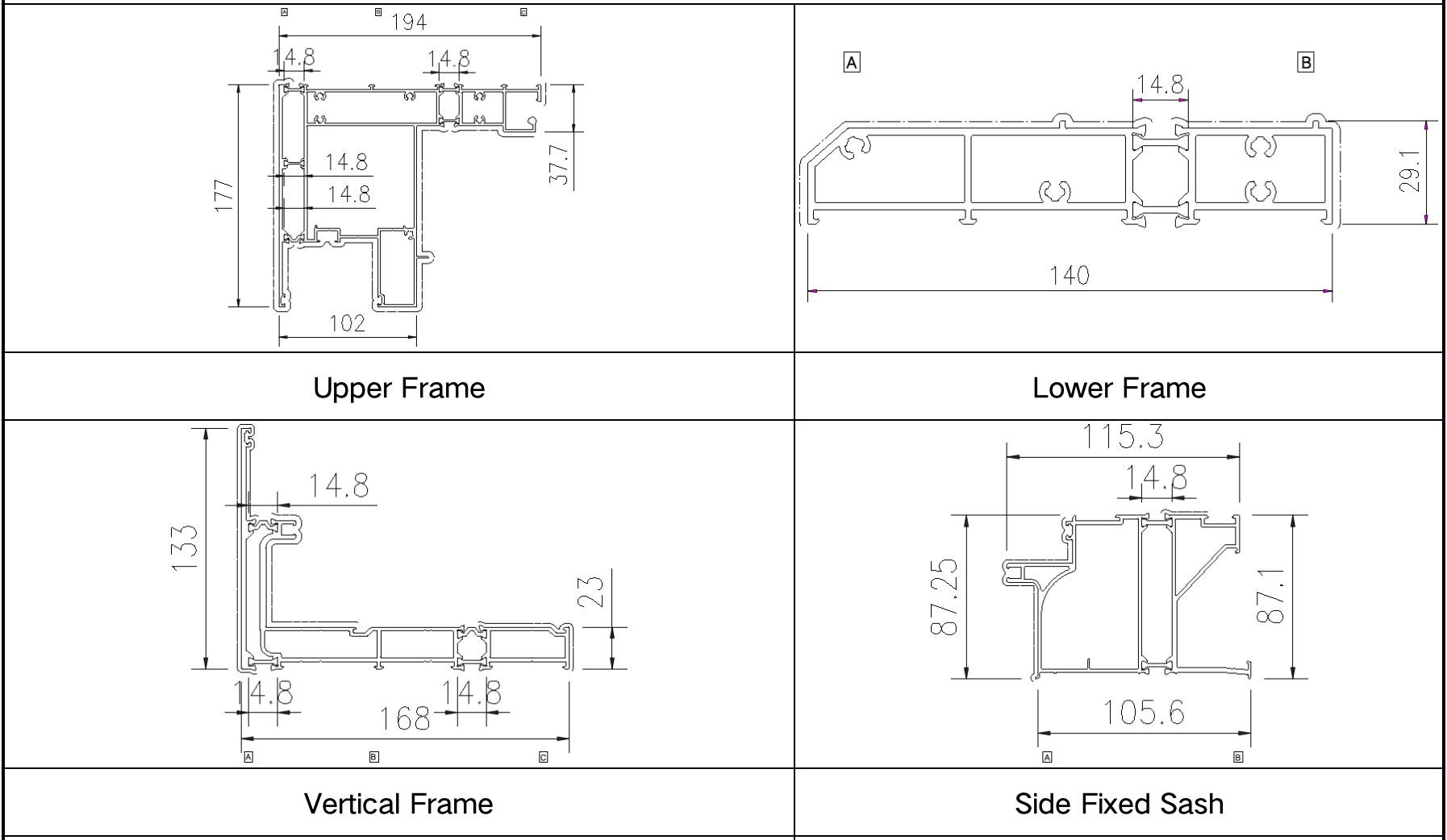

| Frame Width - Height | 1- Side Frame Wall Occupancy: 168mm, Frame Height: 133mm 2- Upper Frame Wall Occupancy: 194mm, Frame Height: 177mm 3- Lower Frame Wall Occupancy: 140mm, Frame Height: 29.1mm |
| Name | Supplier Name |
|---|---|
| Profiles | Xinhe |
| Thermal Insulation Strips | Luterdan |
| Sealing Strips | STORO |
| Hardware | Shenzhen HOPO |
| Glass Original Sheets | Xinyi |
| Configuration | Opening Sash Glass |
|---|---|

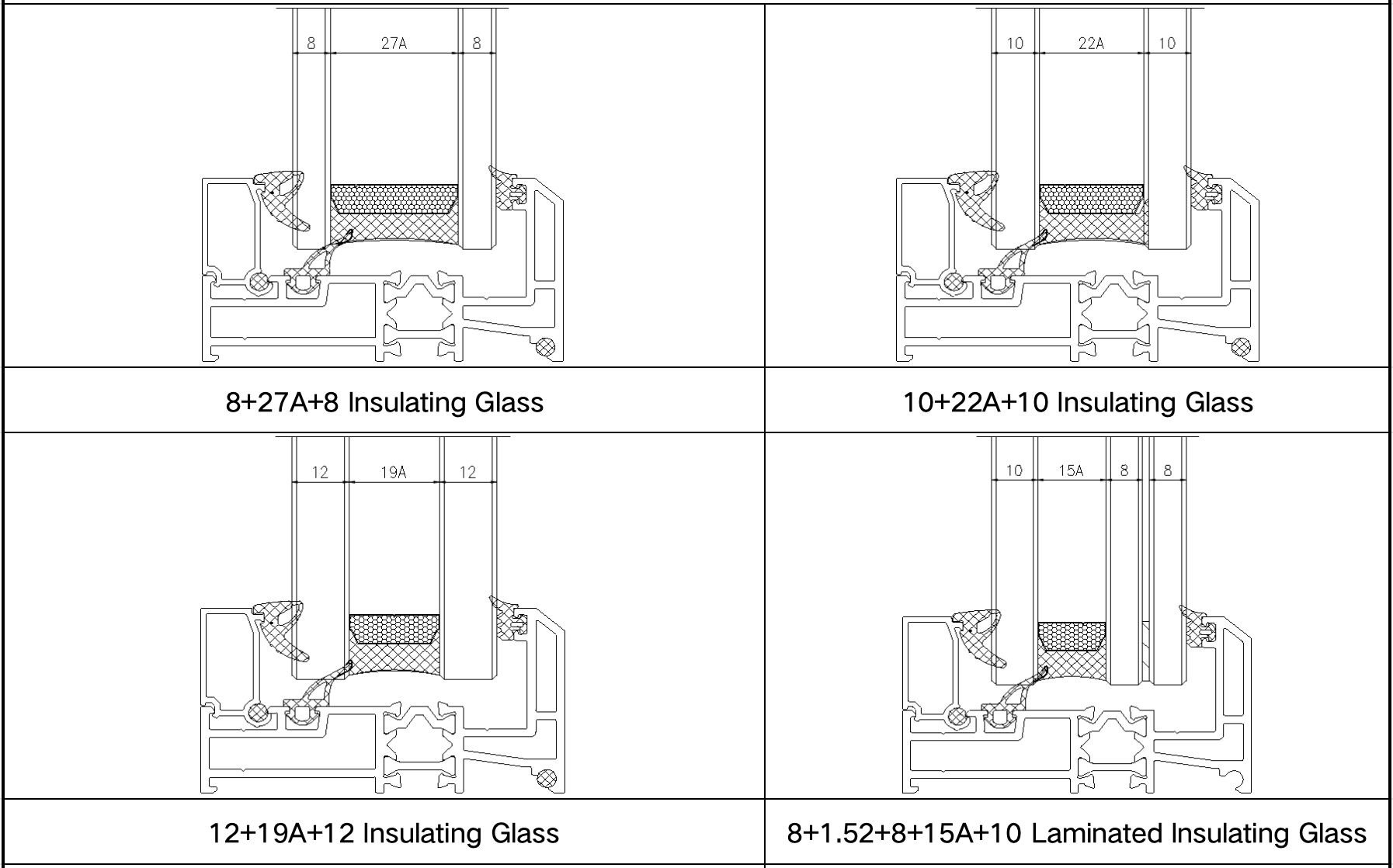

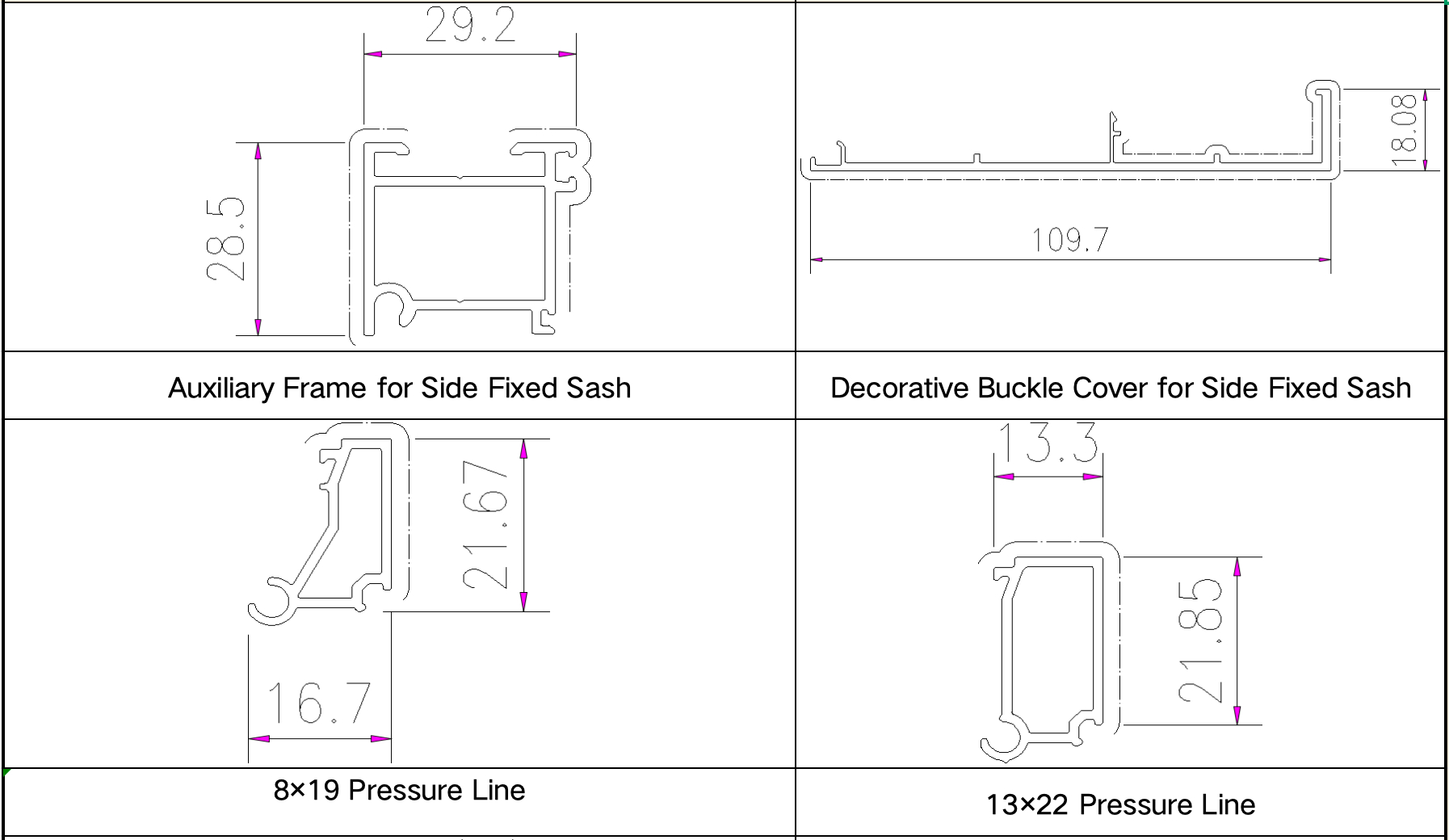

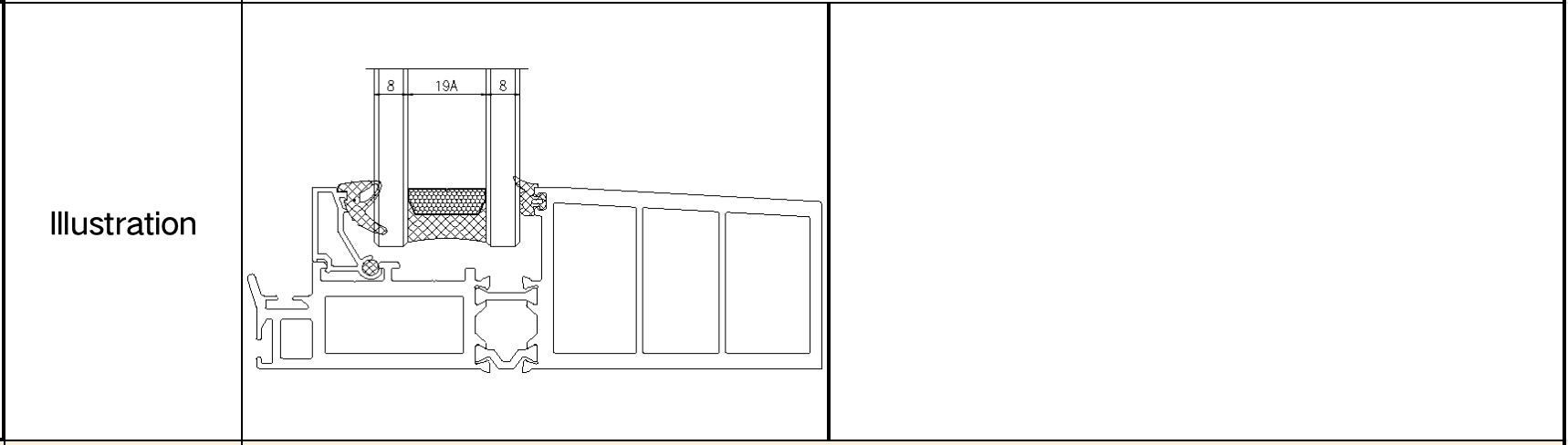

| Standard for 2-glass Solution | 8+19A+8 Insulating Glass, Internal & External Sealing Strips, MA19415 Pressure Line |

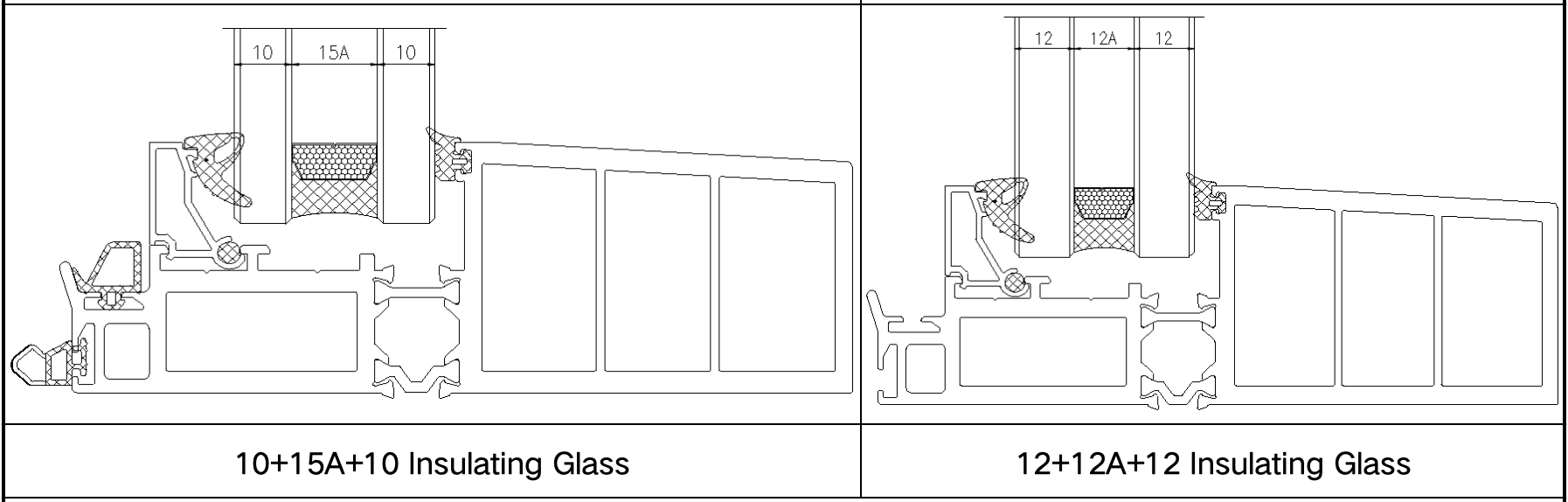

| Other Glass Solutions | Glass thickness selected according to glass area |
| Configuration | Fixed Glass |
|---|---|
| Standard for 2-glass Solution | 8+27A+8 Insulating Glass, Internal & External Sealing Strips, MA19416 Pressure Line |
| Other Glass Solutions | Glass thickness selected according to glass area |
 |
 |
| Category | Specifications |
|---|---|
| Standard Configuration | 1) Standard: 1 electric lifting sash + 1 fixed sash with screen sash 2) Standard: 300kg electric control kit with built-in two-stage anti-pinch during descending 3) Screen sash: Standard electric screen window 4) Standard: 300KG ultra-high load capacity (max load 300KG). Recommended dimensions: sash width 3500-4500mm, sash height 1800-2600mm. Control panel height ≥ 1050mm (including window sill). Limit width: 2000mm ≤ width ≤ 5000mm |
| Optional Configuration | 1) Option 1: 450KG ultra-high load capacity (max load 450KG). Recommended dimensions: sash width 3500-5000mm, sash height 1800-2600mm. Control panel height ≥ 1050mm (including window sill). Limit width: 2000mm ≤ width ≤ 6000mm 2) Option 2: 600KG electric control kit (max load 600KG). Dimension requirements: sash width 3500-6000mm, sash height 1800-2600mm. Control panel height: 1050mm (including window sill). Limit width: 2000mm ≤ width ≤ 6000mm 3) Option 3: 300kg anti-pinch function, infrared anti-pinch sensor (dedicated for 300kg / separable), model H4010345 4) Option 4: 300kg anti-pinch function, 5m anti-pinch rubber strip, model A2250011 5) Option 5: 450kg/600kg anti-pinch function, infrared anti-pinch sensor (dedicated for 450kg/600kg/1000kg / separable), model H4010344 6) Option 6: Lifting window backup battery kit (3Ah), model A2210162 (3Ah: 5-7 times of usage) 7) Option 7: Lifting window backup battery kit (6Ah), model A2210163 (6Ah: 10-15 times of usage) |
| Special Instructions | Select the corresponding screen sash according to its area: 1. 4m²: Model A2250017 2. 5m²: Model A2250018 3. 6m²: Model A2250019 4. 7m²: Model A2250020 5. 8m²: Model A2250021 |
| Process Requirements | 1) Deliver only after completing workshop commissioning |
| No. | EBT168 (Lanjing 168) Electric Lifting Window Product Features |
|---|---|

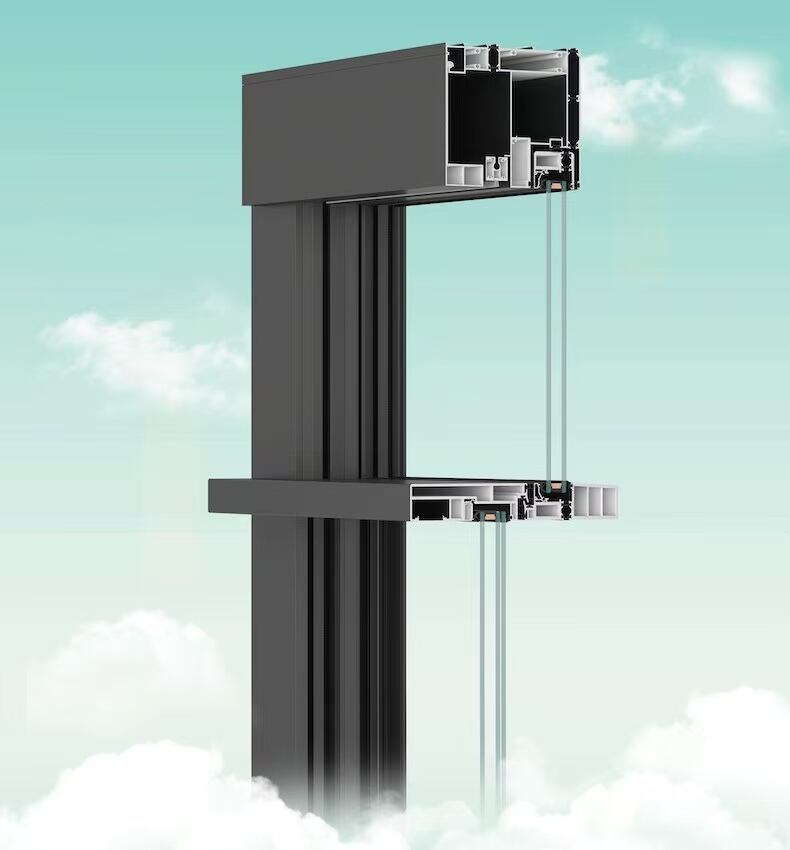

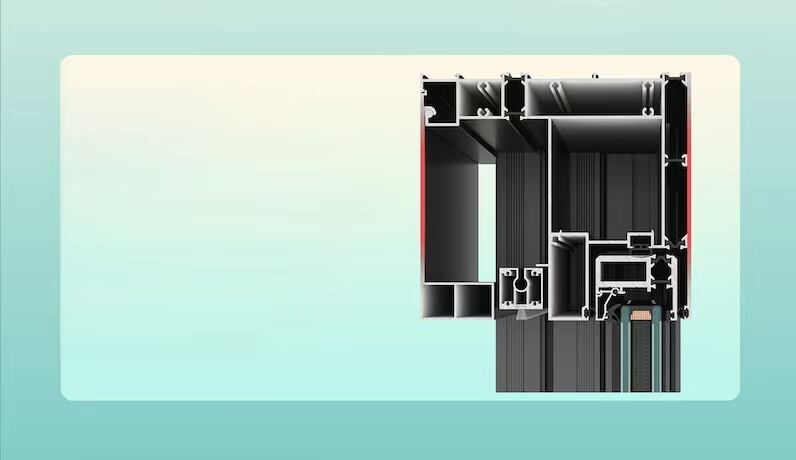

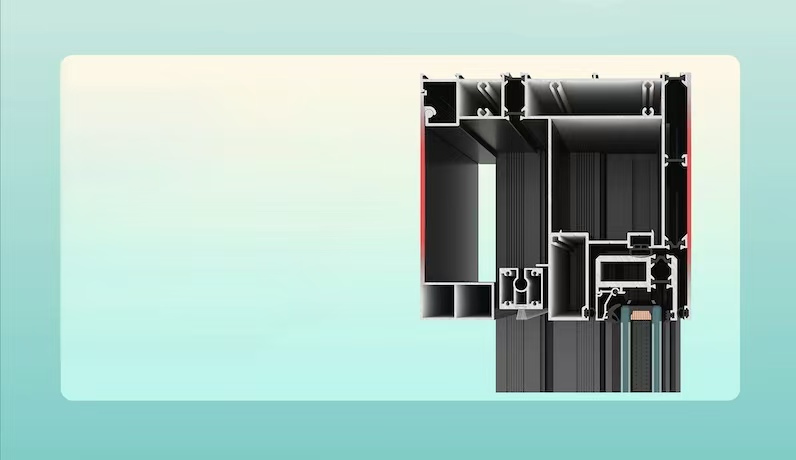

| 1 | Double broken bridge heat insulation structure design |
| 2 | Compatible with Shenzhen HOPO 300kg, 450kg, 600kg hardware |
| 3 | Easy installation with fewer on-site installation procedures |
| 4 | Easy maintenance with simple screw disassembly and assembly |

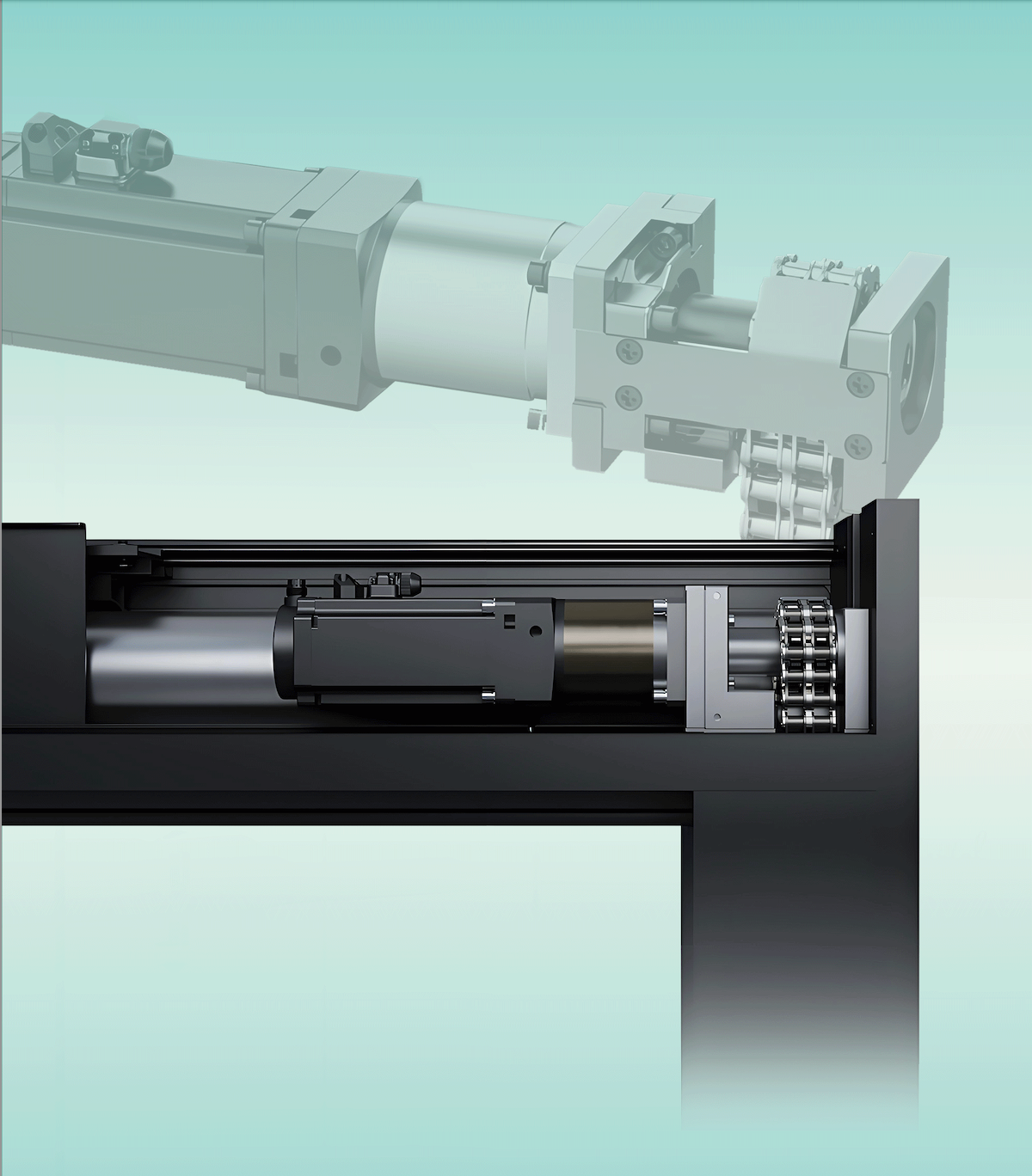

| 5 | Upgraded appearance with no exposed transmission chain |
| 6 | Visual upgrade with no exposed screen sash cross beam |
| 7 | Fewer splicing seams for a flatter appearance surface |

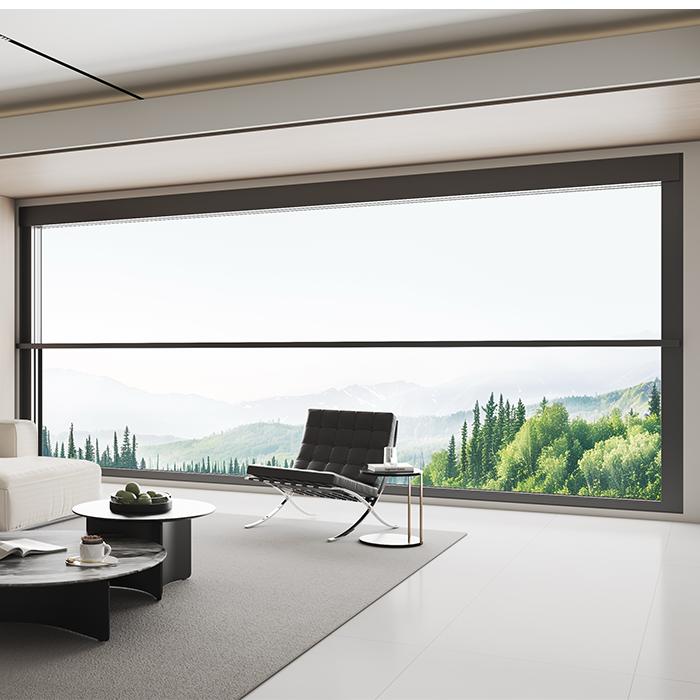

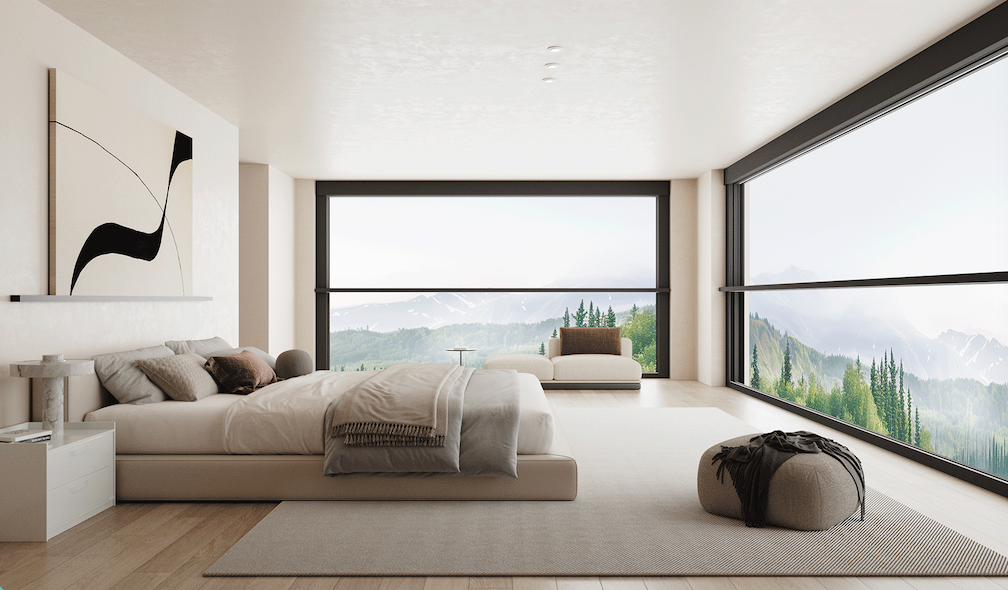

| 8 | 180° panoramic view for a broader horizon |
| 9 | 50% ventilation area for full natural ventilation |
| 10 | Watertight performance of 450pa-900pa, wind resistance performance ≥ 3000pa, resistant to level 12 typhoons |
| 11 | Low motor noise during low-speed operation, with operating decibel of movable sash ＜ 40 |

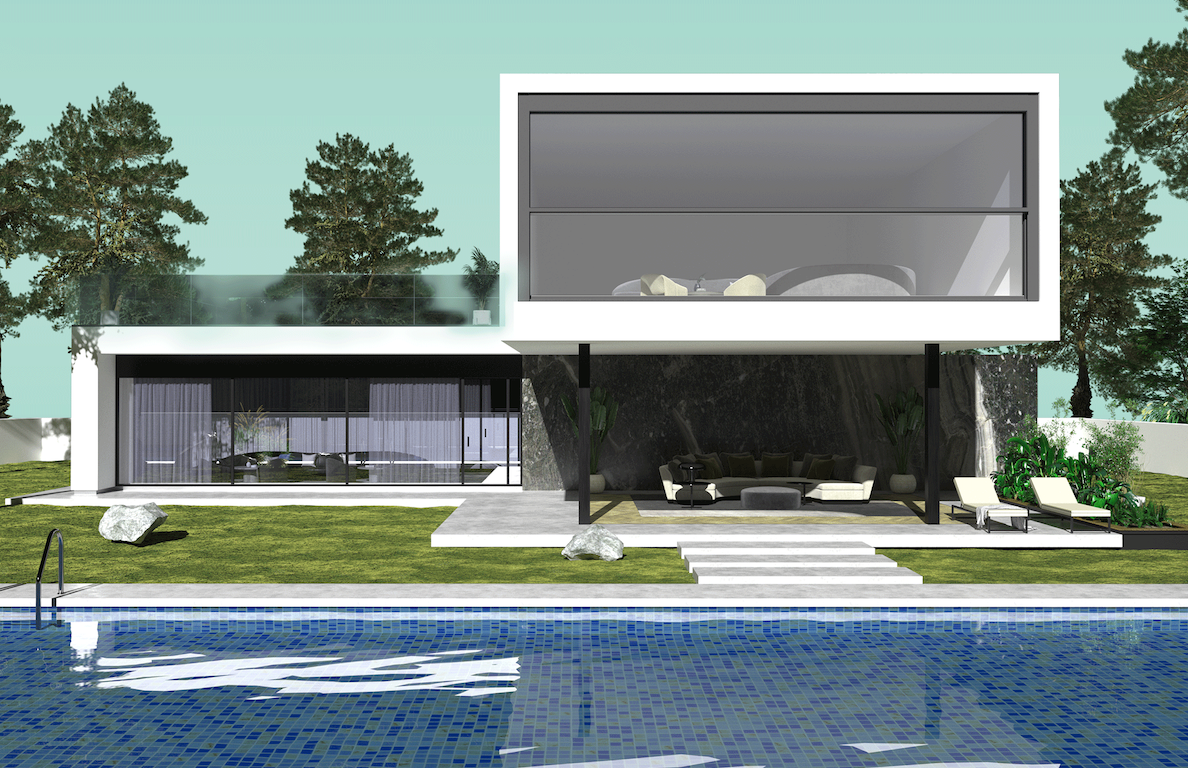

| 12 | Suitable for multiple application scenarios: residential (large apartment, villa, private house); commercial (office building, resort, hotel, clubhouse) |
| 13 | Two-stage anti-pinch during descending to eliminate potential safety hazards: optional infrared anti-pinch and physical pressure anti-pinch |
| 14 | Automatic stroke learning to avoid sash squeezing the window frame |
| 15 | Fully automatic balance adjustment with adaptive balance, horizontal lifting, and high-precision motor servo encoder position detection |
| 16 | Instant stop and automatic braking when power is off for constant safety protection |

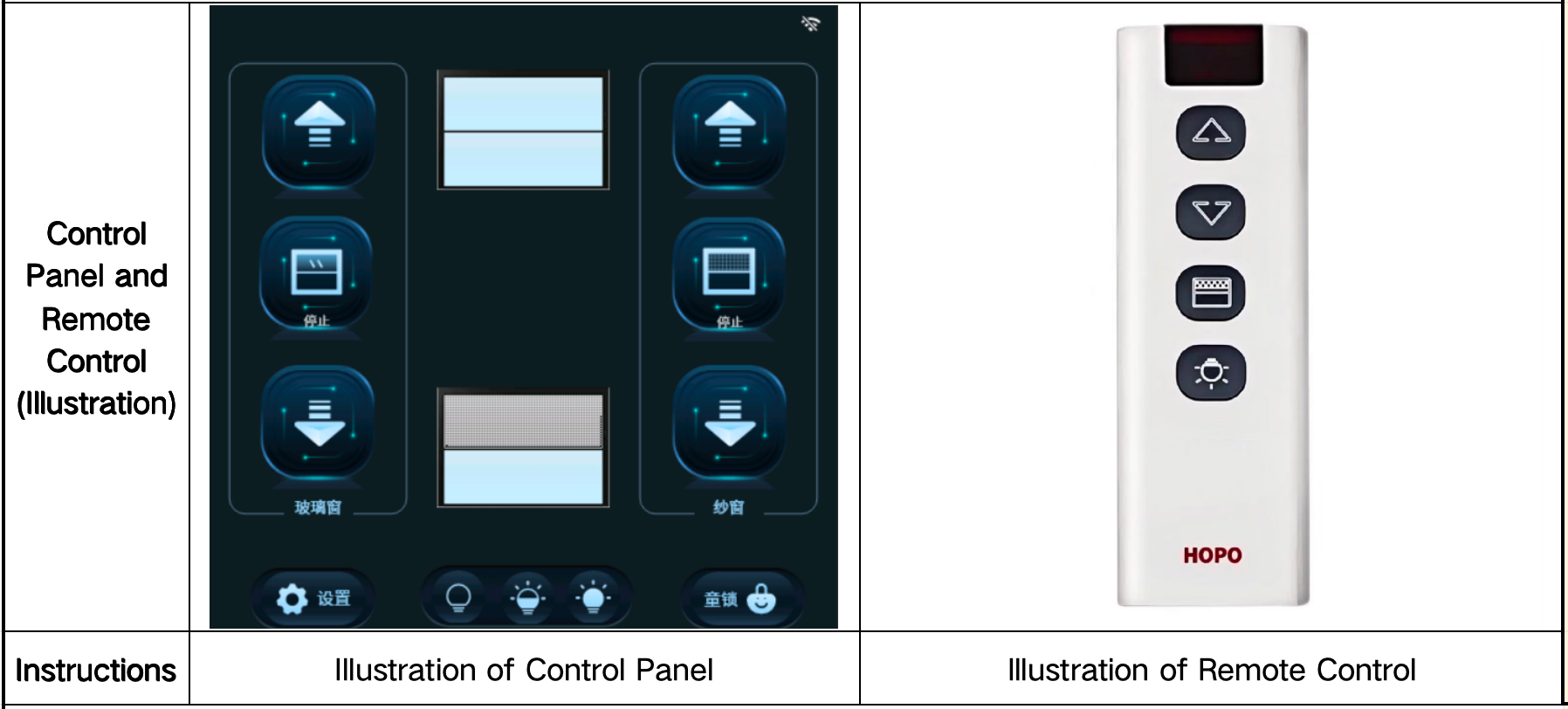

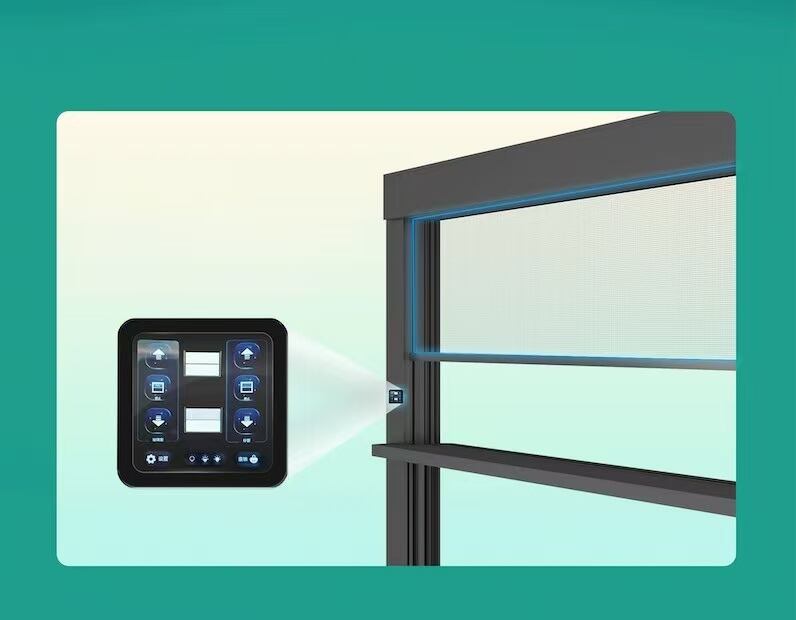

| 17 | Intelligent control: APP remote and proximity control, cross-system linkage control |
 |
 |
1.Before door and window design, the thickness of the installation wall shall be confirmed to select the corresponding series and casings.
2.Clearly specify the interior and exterior colors when placing an order.
3.The glass specifications must be indicated in the order. In the absence of special instructions, the production shall be carried out in accordance with the standard - configured glass by default.
4.For construction scenarios where transportation is mainly via elevators or staircases, a reasonable mullion - splicing design can be adopted.
5.The opening sash must be strictly controlled within the reasonable design range; otherwise, hardware installation may not be feasible or potential safety hazards may arise.
6.Technical Parameters - The data and information shall be subject to the updated version and information released by the company.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
