Alice Series Sliding Window 113

Related products

Parameter

Ebon Tongtai - Exploring Beauty, Offering Novelty

	20+years Deeply committed to high-performance thermal-break windows and doors.		100,000㎡ Four modern intelligent manufacturing bases.
	200+ High-performance thermal-break window and door technology patents.		≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass.

Sales Colors

Item	Standard Color	Optional Colors
Indoor Color	Sand Gray	Mocha Coffee, Starry Sky Gray
Outdoor Color	Sand Gray	Mocha Coffee, Starry Sky Gray

Profile Information

Item	Specifications
Project Name	Dimension Data: (Fixed Section: Internal & External Glazing Bead; Opening Sash: Glue Sealing Inside Glass)
Load-bearing Thickness of Main Material	Main Material Wall Thickness: 1.4MM
Glass Sash Width & Thickness	Sash Width: 60mm, Sash Thickness: 28.6mm, Glass Notch: 23.2mm (Glue Sealing Inside Glass)
Screen Sash Width & Thickness	Sash Width: 60mm, Sash Thickness: 28.6mm

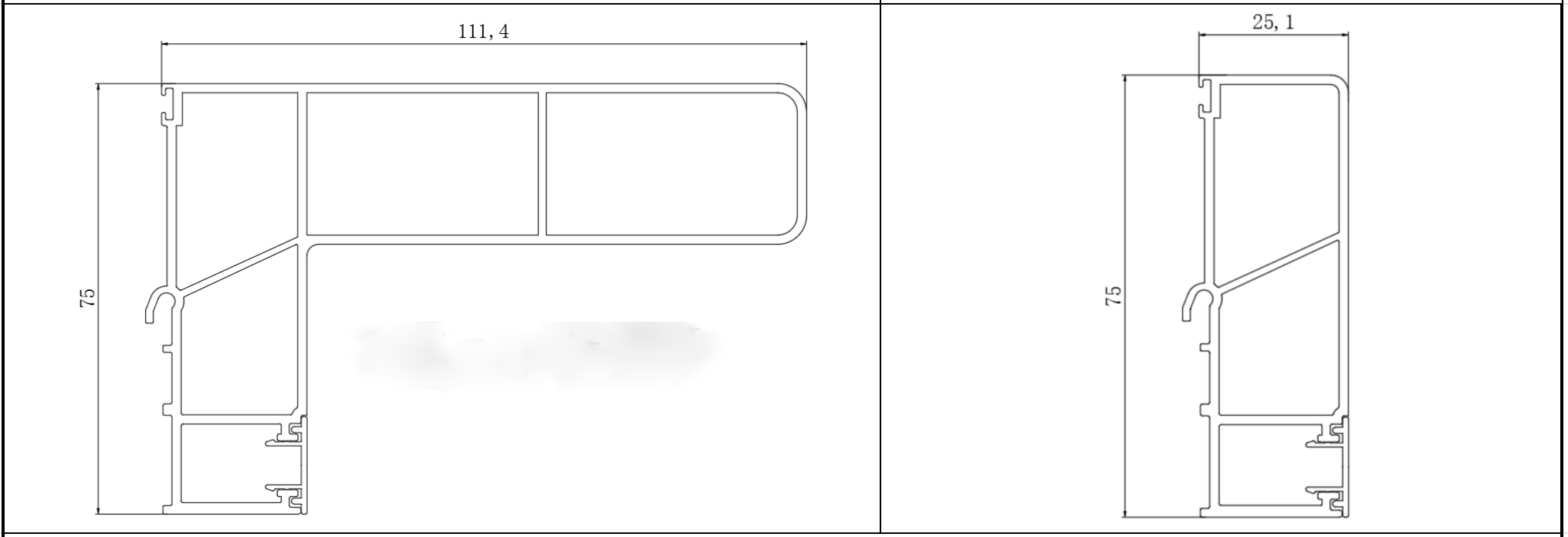

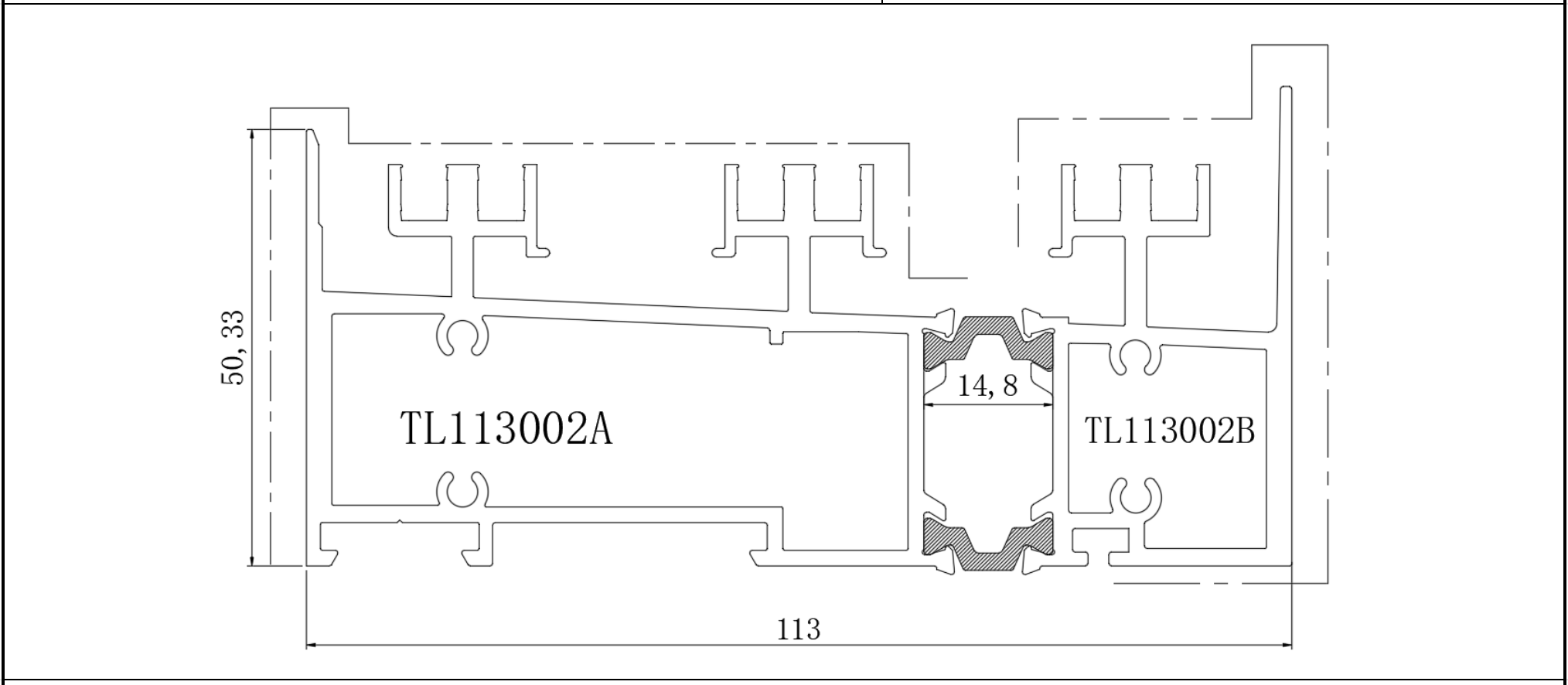

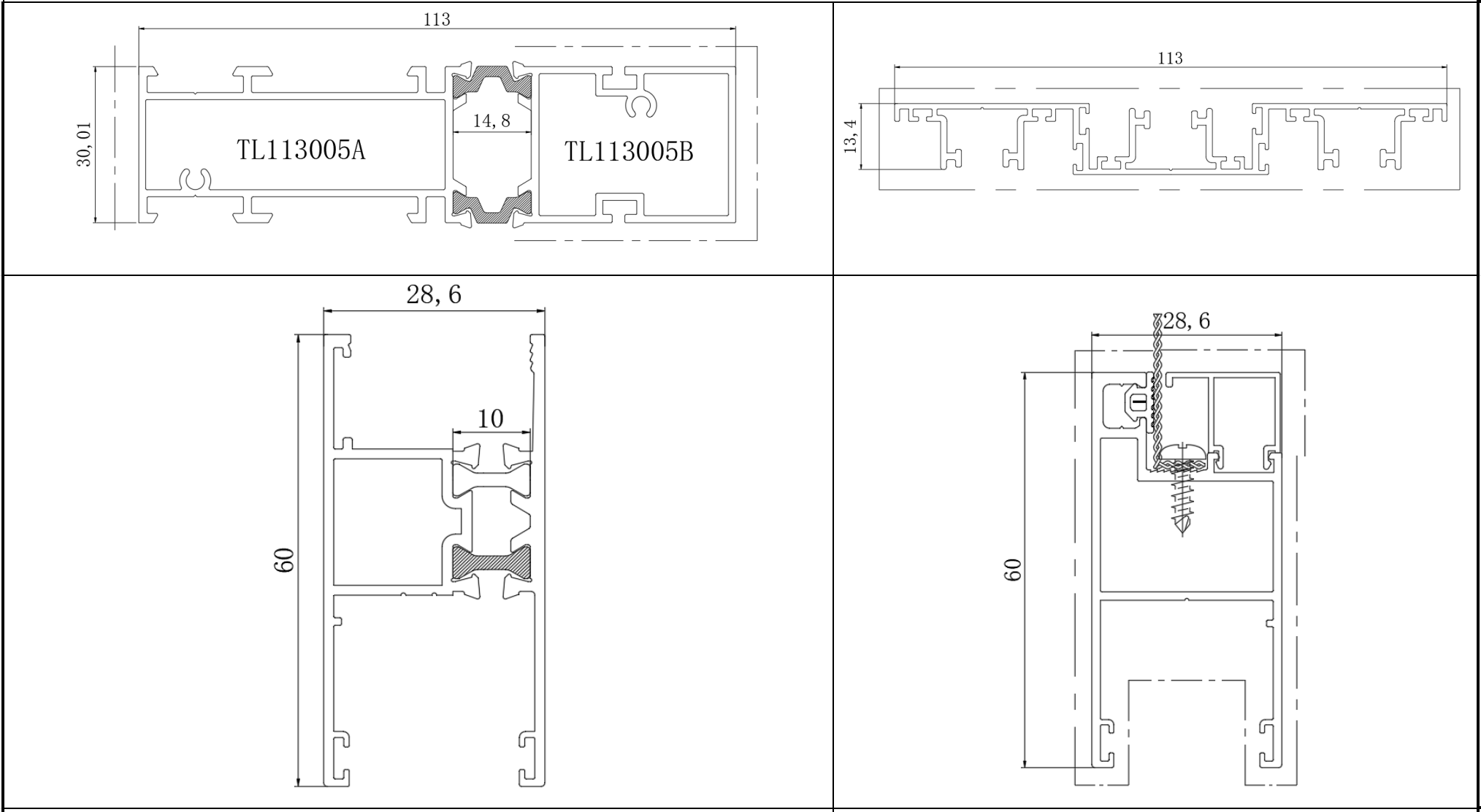

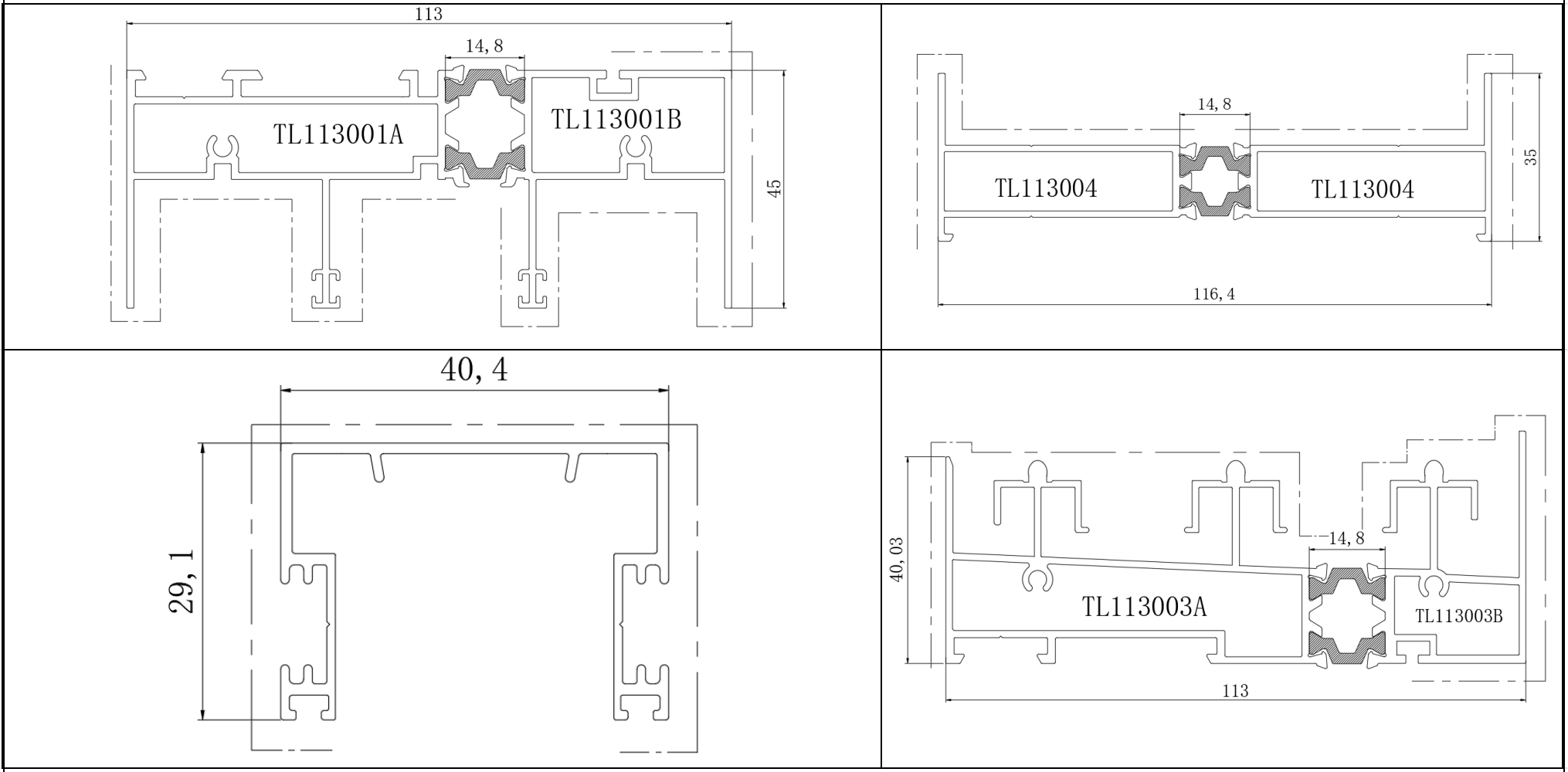

Profile Display Drawing

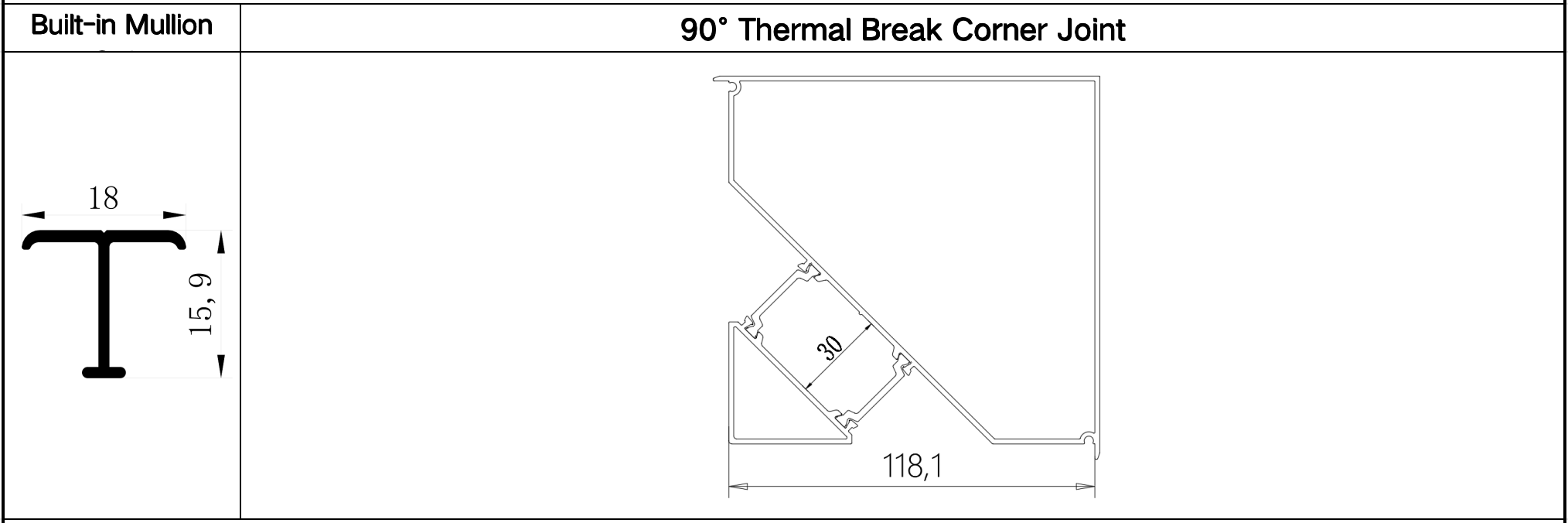

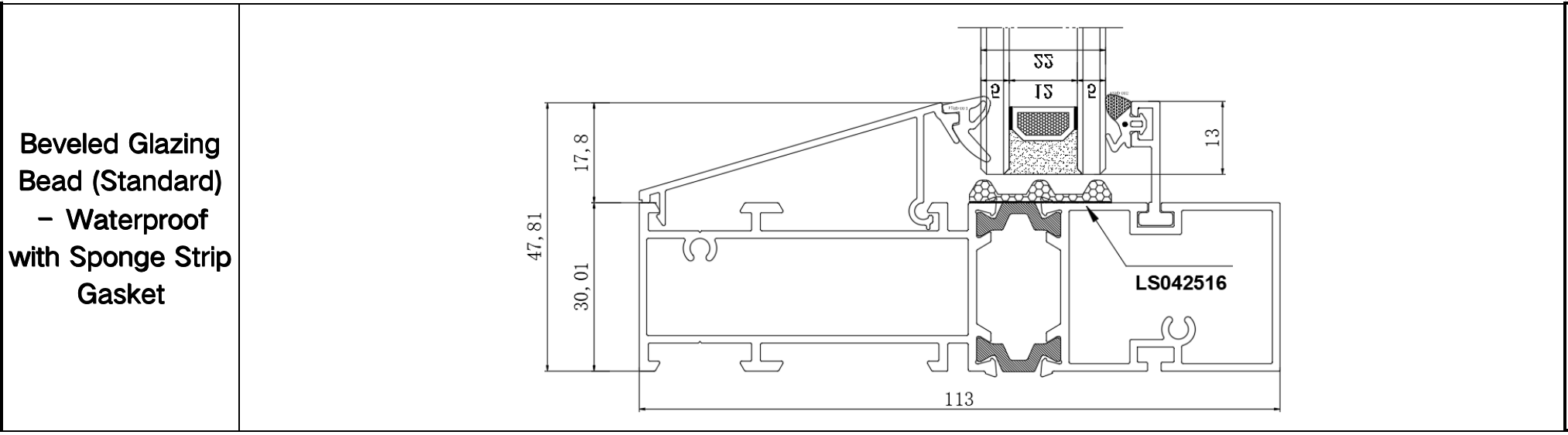

Fixed-position Glazing Bead Selection

Glass Configuration

Configuration	Opening Sash Glass
Standard	Standard 5+12A+5 insulated glass with 90° mitered corner process: (Glue sealing inside glass sash)

Configuration	Fixed Glass
Standard	Standard 5+12A+5 insulated glass with 90° mitered corner process (Internal & External Glazing Bead); Standard Beveled Glazing Bead Included

Basic Technical Requirements and Parameters

Item	Specifications

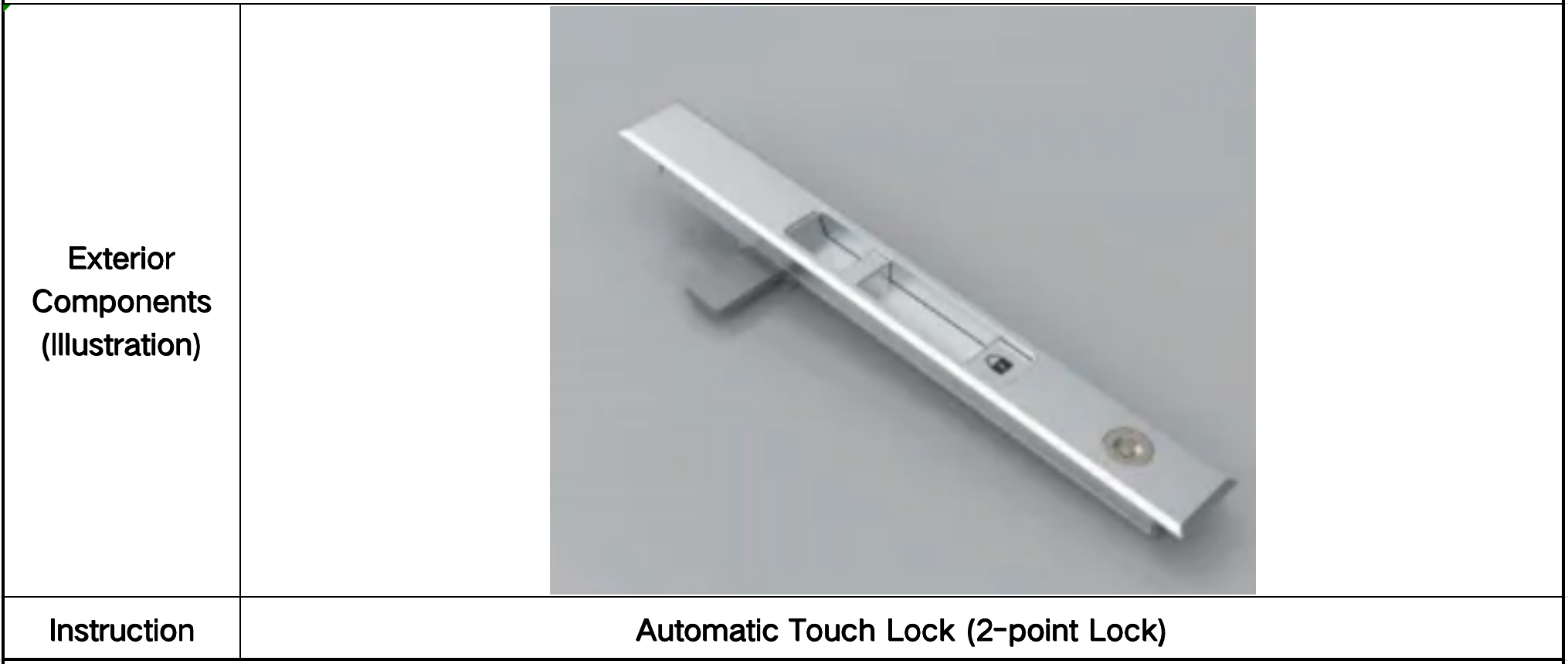

Standard Configuration (Available)	1) Standard: 3-track Sliding Window (Window Types: 2 glass sashes + 1 screen sash, can be equipped with top & bottom fixed sections; 4 glass sashes + 2 screen sashes, can be equipped with top & bottom fixed sections). Cannot be made into doors / Cannot be equipped with clothes racks 2) Standard: Lock: Automatic Touch Lock (2-point Lock) 3) Standard: 3-track Bottom Rail – Single Sash Size Limit (Sash width: 400-1000MM, Sash height: 500-1400MM, Load capacity: 60KG). Lock height shall not be less than 300MM 4) Standard: 6-track Bottom Rail – Single Sash Size Limit (Sash width: 400-1400MM, Sash height: 500-1600MM, Load capacity: 80KG). Lock height shall not be less than 300MM Handrail is not included in standard configuration; large handrail or small handrail is optional (handrail is mandatory if selected)
Steel Insert in Track	1) Standard: Steel insert is required when bottom rail length is 1500 < L ≤ 1800MM and the bottom fixed section is without mullion
Screen Sash	1) Function: Standard: 304 Stainless Steel (0.4MM Diamond Mesh) / Optional: Diamond Mesh / High-transparency Mesh Screen sash can be installed on the indoor side or outdoor side

Order Taking Notes & Technical Parameters

1.When designing the size of fixed windows, it is also necessary to take into account the strength requirements of the glass as well as the feasibility of processing, handling and installation. Generally, the surface area of 5mm insulated glass should not exceed 700×1200mm with an area no more than 1 square meter. For oversized glass, please refer to the configuration requirements for oversized insulated glass.

2.Before door and window design, it is necessary to know the thickness of the installation wall to select the corresponding series and casings.

3.The overall total height shall not exceed 2400mm and the width shall not exceed 5800mm. For special cases, special remarks shall be made after communication with the customer service.

4.The internal and external colors shall be clearly indicated when placing an order.

5.The glass specifications must be specified when placing an order. In the absence of special instructions, all products shall be manufactured according to the standard - equipped glass.

6.If the construction is mainly carried out by elevator or stair handling, a reasonable mullion design can be adopted.

7.The opening sashes must be strictly controlled within the reasonable design range; otherwise, hardware cannot be installed or potential safety hazards may arise.

8.Technical Parameters -- The data and information shall be subject to the updated information and version of the company.
