EBP80 (Xinglan 80) French Casement Window

Ebon Tongtai - Exploring Beauty, Offering Novelty

	20+years Deeply committed to high-performance thermal-break windows and doors.		100,000㎡ Four modern intelligent manufacturing bases.
	200+ High-performance thermal-break window and door technology patents.		≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass.

Category	Item	Details
I. Available Colors	Standard Colors	Kraft Black, First Love White
	Optional Colors	Dopamine·Elegant Green, Dopamine·Northern Landscape, Dopamine·Bordeaux Red, Morandi·Creamy Coffee
II. Profile Information	Main Material Thickness	3.0 mm
	Sash Width & Thickness	Sash Width: 44 mm; Sash Thickness: 78.5 mm; Glass Groove Width: 28 mm
	Frame Width	Wall Occupancy: 80 mm; Large Surface Height: 51 mm; Small Surface Height: 28 mm

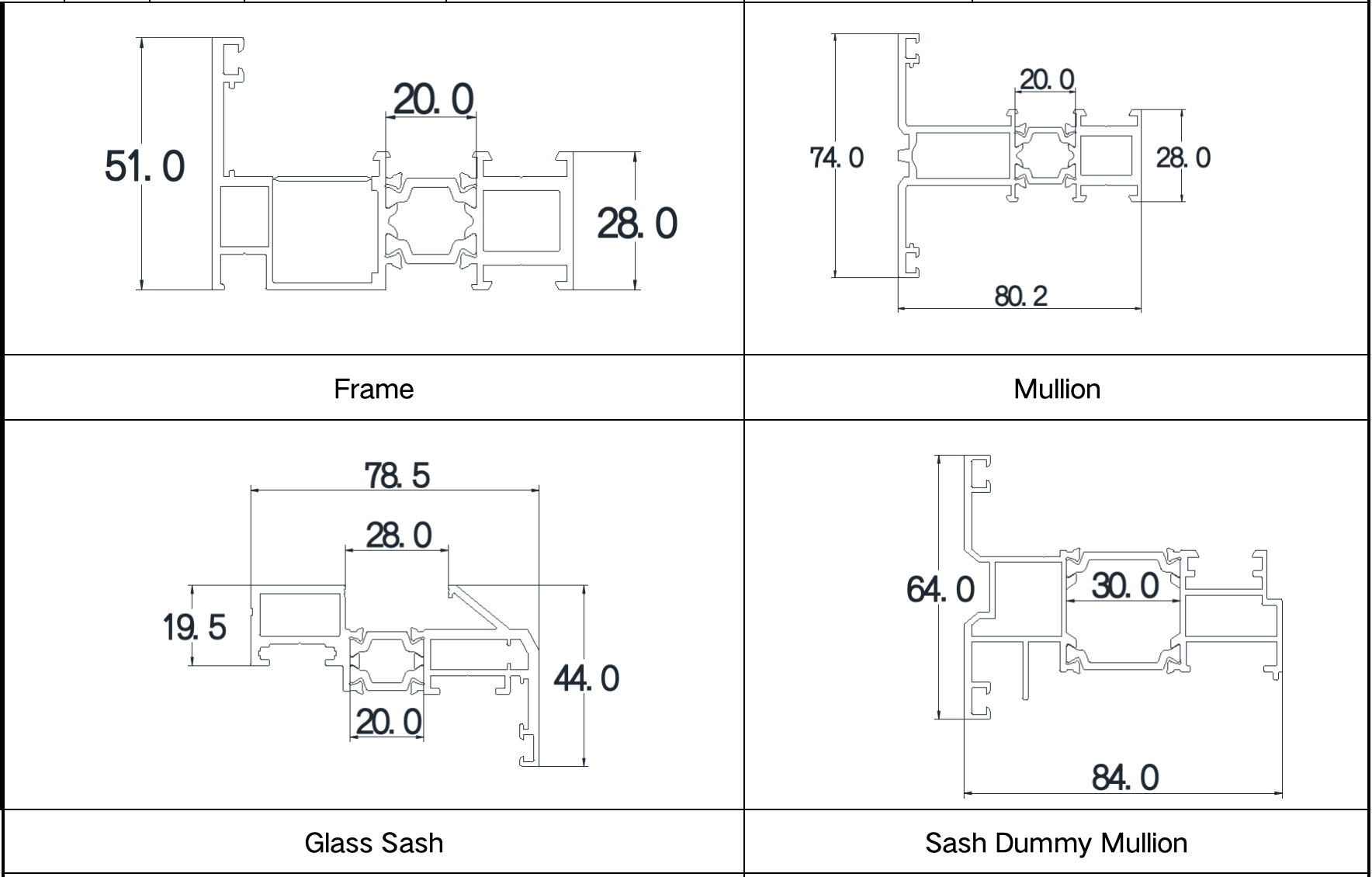

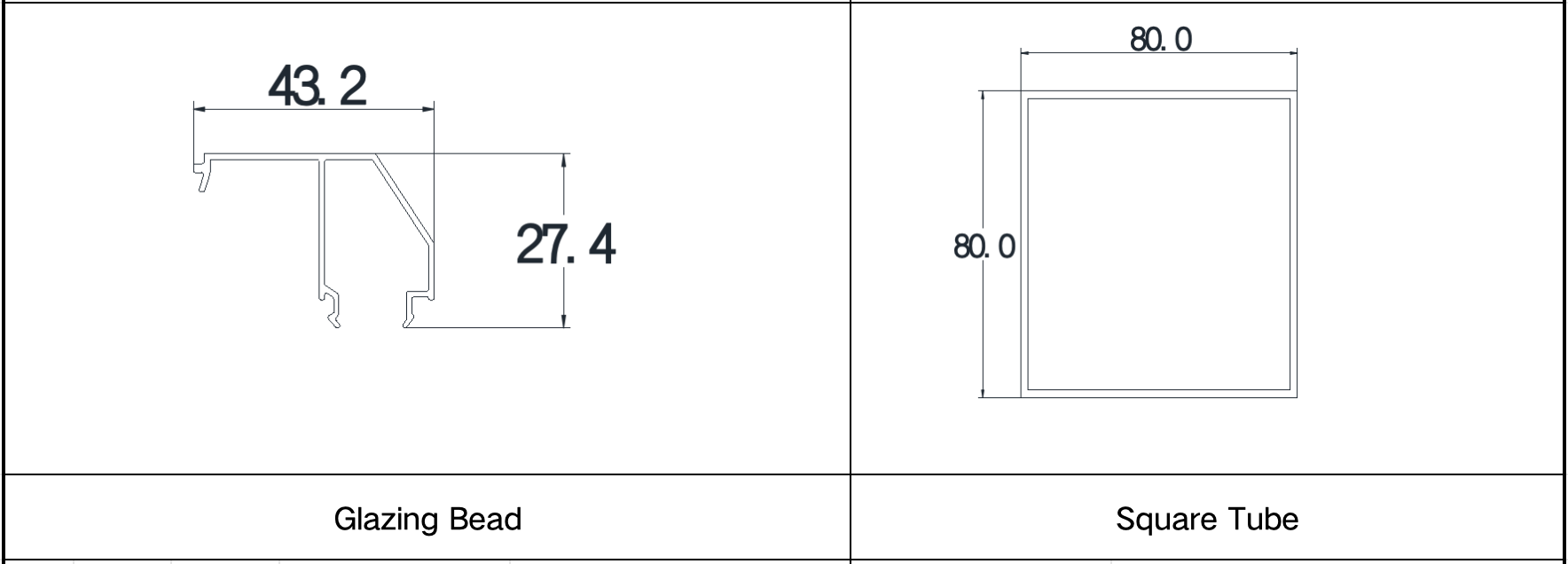

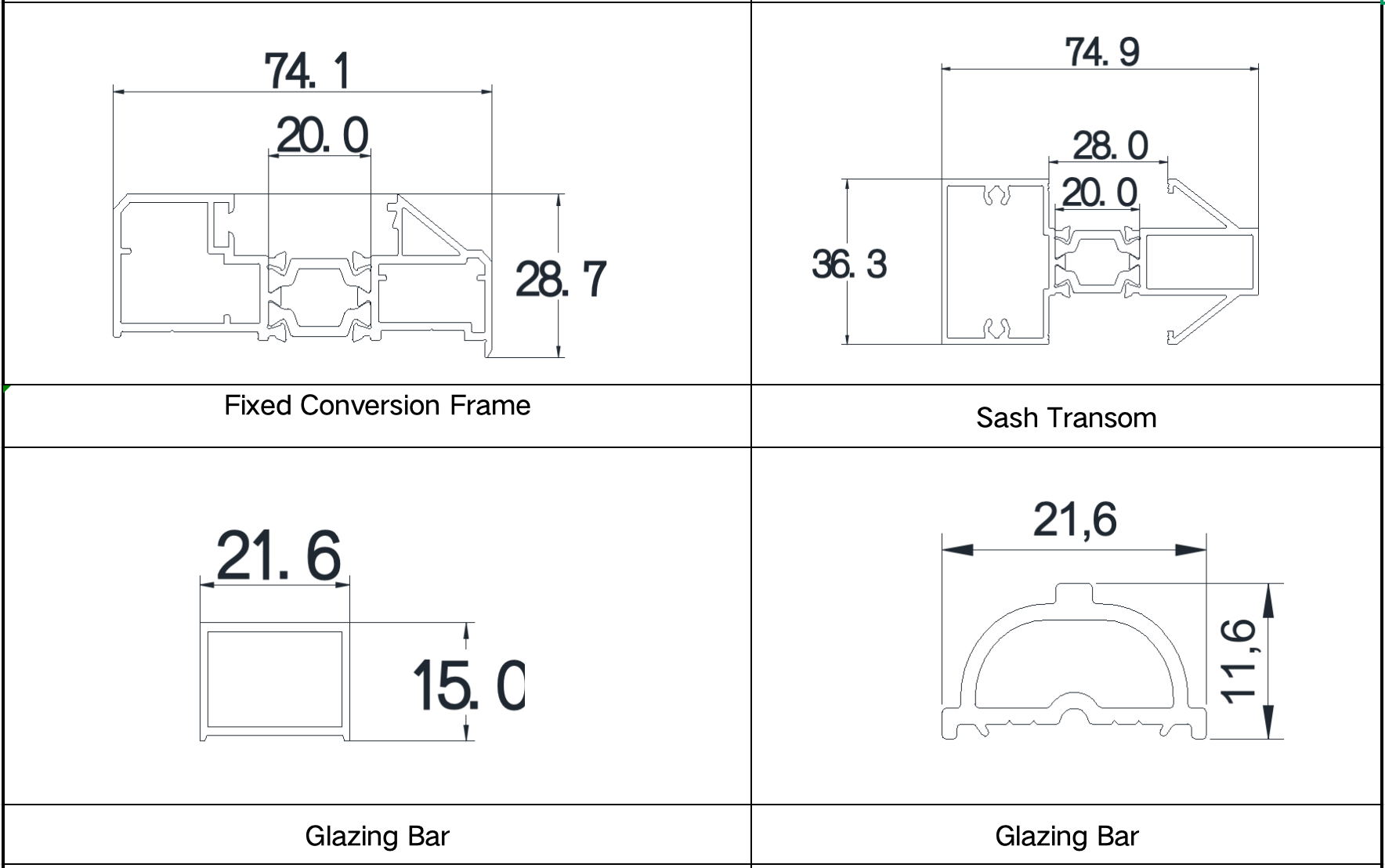

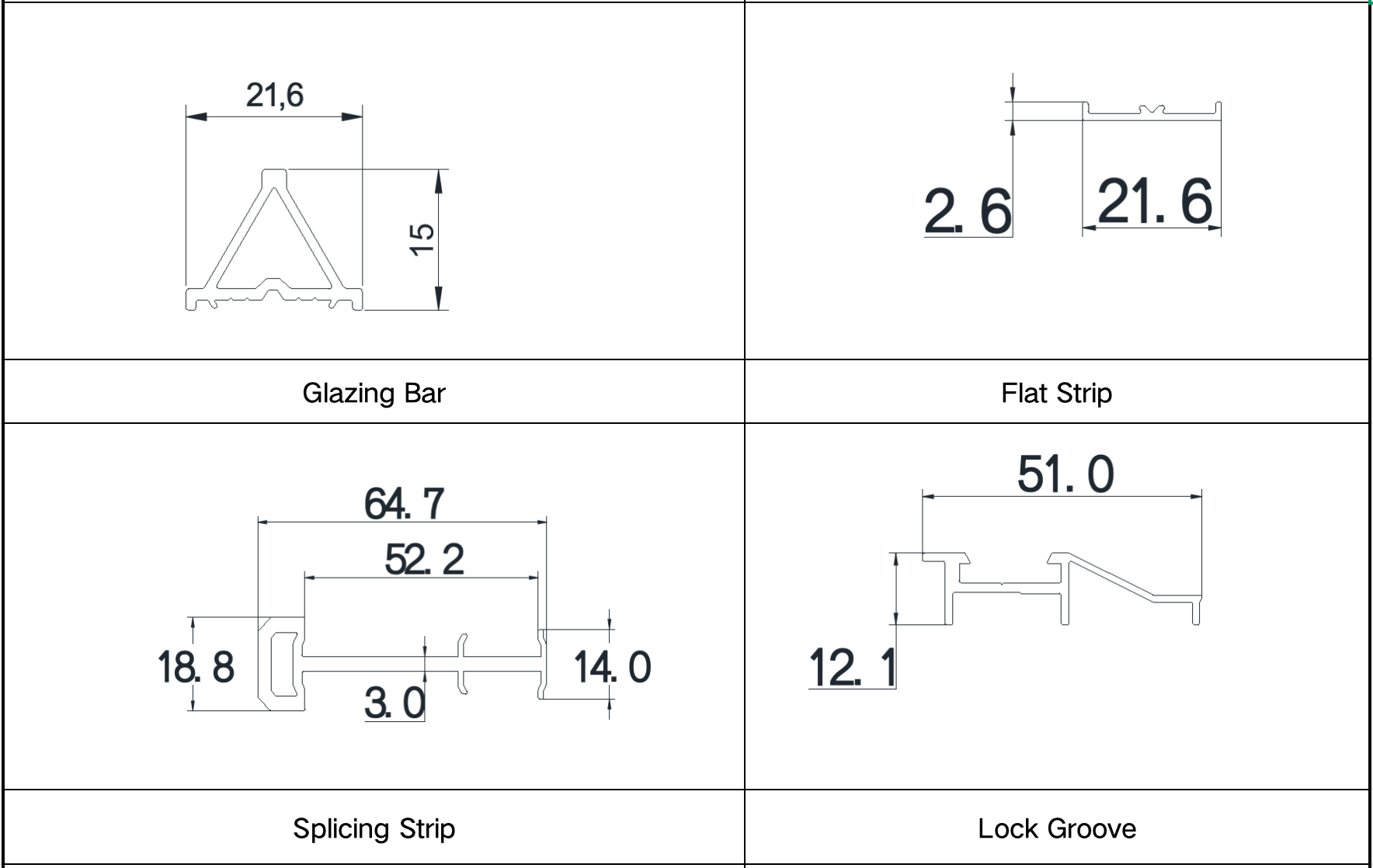

Profile Display Diagram

Category	Item	Details
IV. Glass Configuration	Opening Sash Glass (Standard)	5+15A+5 insulated glass, with LOGO printed grey aluminum spacer (bent), sealed with glue inside and outside.
	Fixed Glass (Standard)	Single Glazing: 5+15A+5 insulated glass, with LOGO printed grey aluminum spacer (bent), sealed with glue inside and outside.

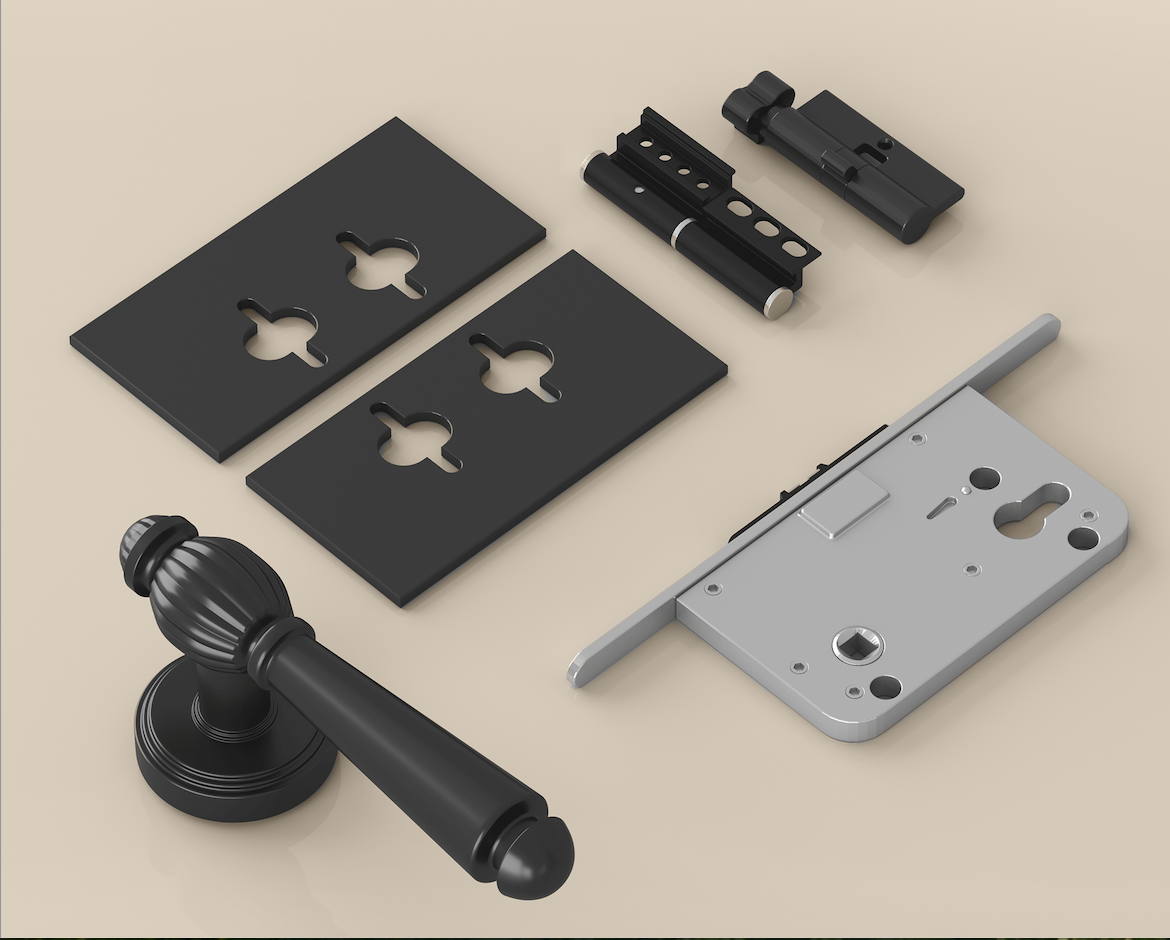

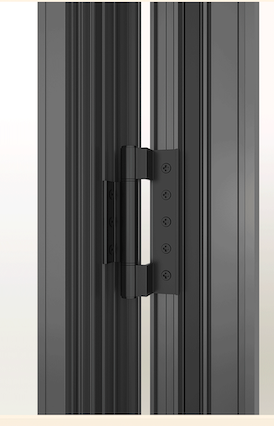

V. Basic Technical Requirements & Parameters	Standard Configuration	1) Window Type: Outward casement window, outward top-hung window, outward double casement window 2) Hardware: French-style handle + French-style hinge; Color Options: Black, Bronze, Antique Brass, PVD Bright Gold 3) Function Limit: Outward casement sash size range (width: 380-700 mm, height: 600-1400 mm, load capacity: 50 kg); Handle installation height ≥ 400 mm
	Optional Configuration	Folding screen sash (optional); Maximum single screen sash width: ≤ 650 mm

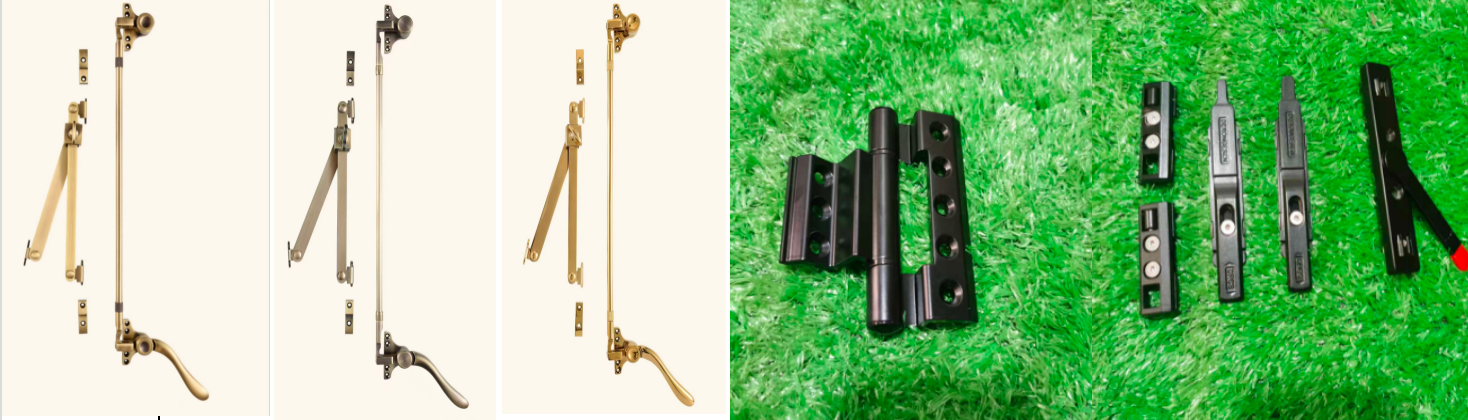

Exterior Handle Photo

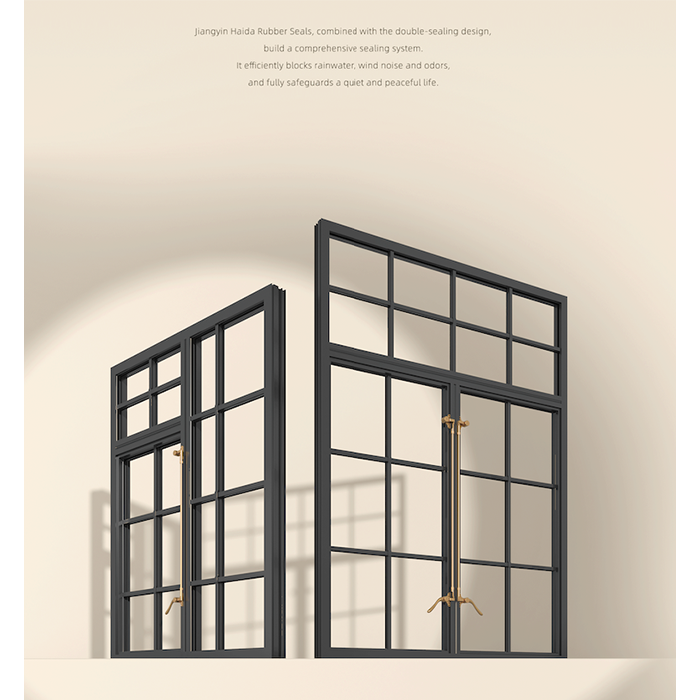

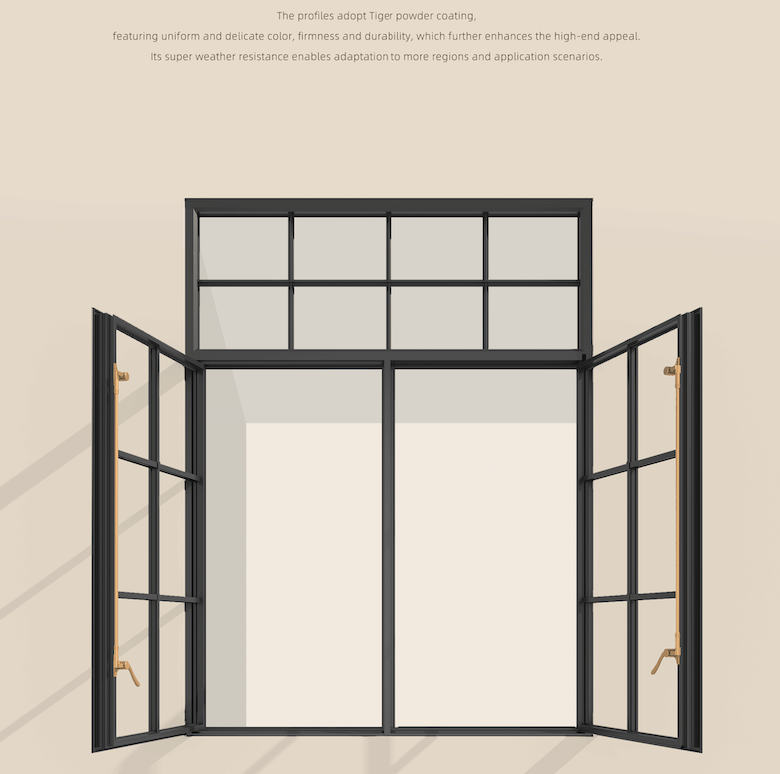

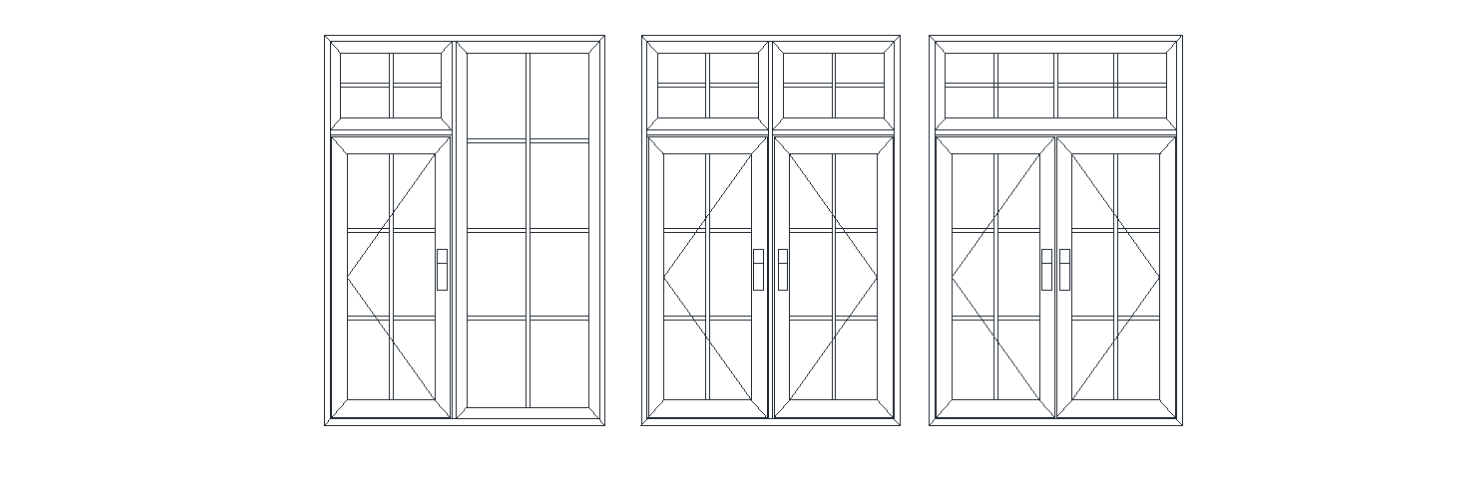

Common Window Types

Order Notes & Technical Parameters

For the size design of fixed windows, the glass strength requirements and the feasibility of processing, transportation and installation shall also be taken into consideration. For extra-large glass, please refer to the Extra-large Insulated Glass Configuration Requirements.
Before door and window design, the thickness of the installation wall shall be confirmed to select the corresponding series and wrapping covers.
The color shall be clearly specified when placing an order.
The glass specification must be indicated in the order. In the absence of special instructions, the production will be carried out in accordance with the standard glass configuration.
If the construction mainly relies on elevator or stair transportation, a reasonable splicing design can be adopted.
The size of the opening sash must be strictly controlled within the reasonable design range; otherwise, hardware installation failure or potential safety hazards may occur.
Technical Parameters — The data shall be subject to the company's updated information and version.
