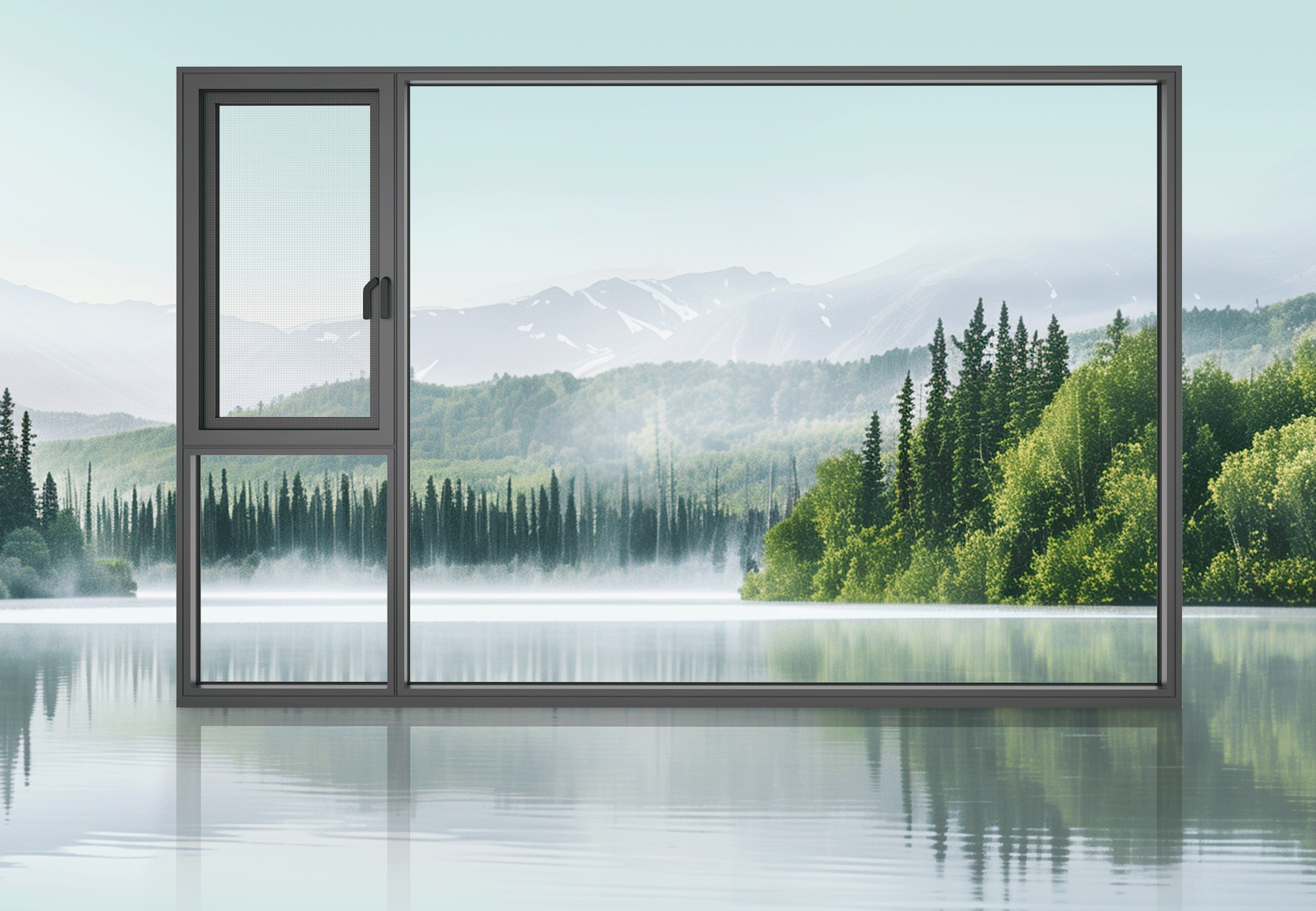

High-Performance 126 Series Outward-Opening Window

Ebon Tongtai - Exploring Beauty, Offering Novelty​

	20+years Deeply committed to high-performance thermal-break windows and doors.		100,000㎡  Four modern intelligent manufacturing bases.
	200+ High-performance thermal-break window and door technology patents.		≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass.

Item	Specification
[Profile Thickness]	3.0mm
[Frame Width]	126mm
[Glass Configuration]	6mm+27A+6mm Insulating Glass
[Hardware Brand]	ROTO FRANK
[Opening Type]	Outward Casement
[Reference Parameter]	400mm ≤ Sash Width ≤ 750mm; 600mm ≤ Sash Height ≤ 1500mm

Performance Advantages:

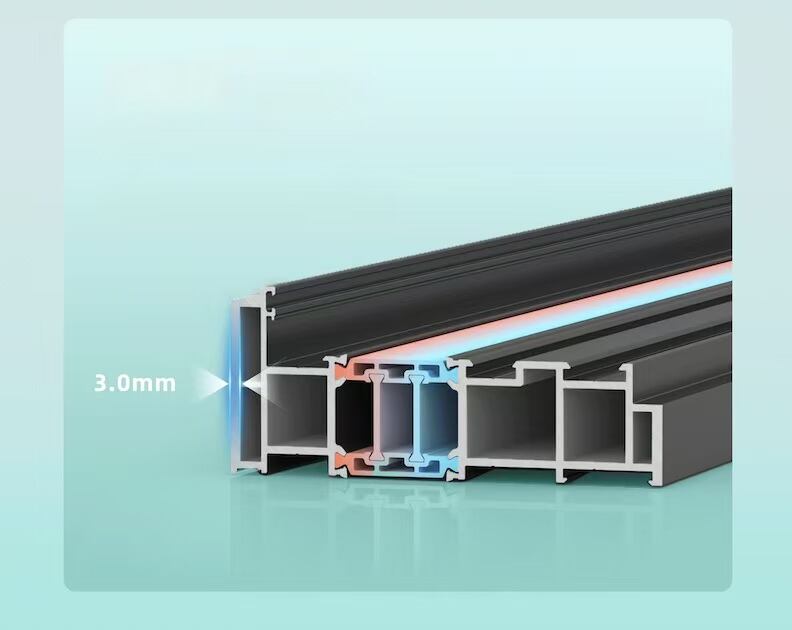

1. Highstrength 6063T5 aluminum profiles with a 3.0mm loadbearing wall thickness

2. EPDM foam strips with a multilayer sealing system

3. 3i LowE glass for advanced thermal and solar control

4. Vertical isothermal design for enhanced insulation and energy efficiency

5. 5thgeneration reinforced thermal break with a 36mm ultrawide span

6.Central sealing gasket with integrated corner vulcanized welding

7. Injected corner connectors for stronger joints and improved waterproofing

8.Premium powdercoating finish with exceptional weather resistance and refined texture

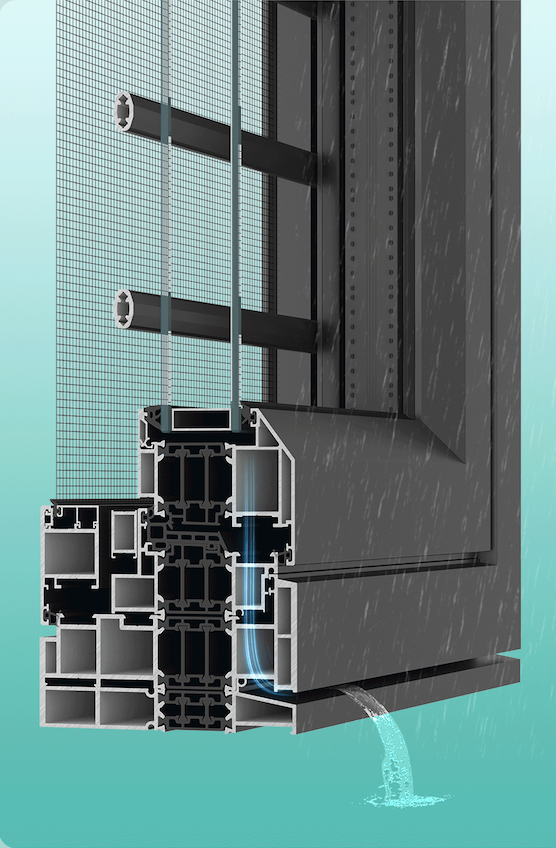

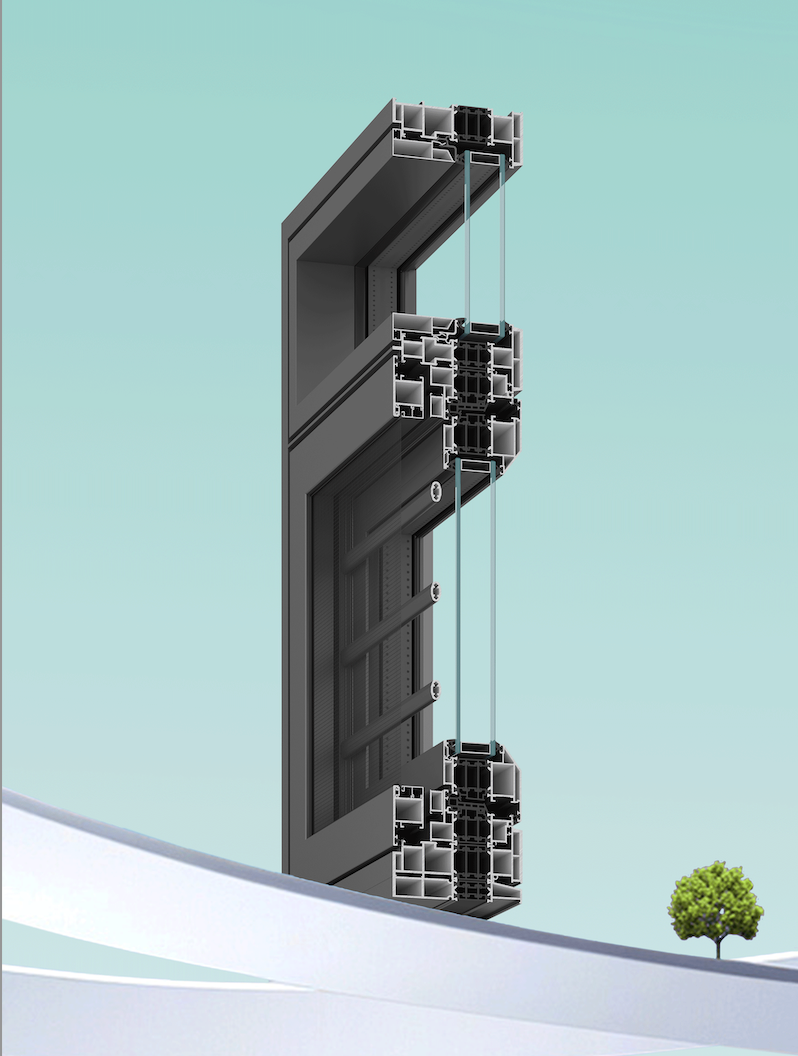

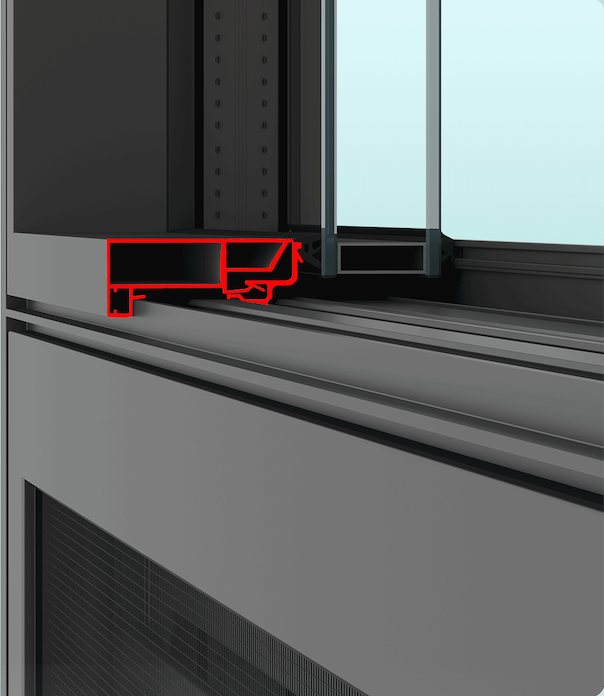

Craftsmanship Detail Presentation

Available Colors

Category	Color Options
Indoor Color	Starry Gray, Cream White, Mocha Brown, Elegant Black
Outdoor Color	Starry Gray, Cream White, Mocha Brown, Elegant Black

Item Name	Dimension Data
Main Material Thickness	Frame: 3.0mm at partial areas, 2.0mm for the rest; Sash: 1.8mm
Glass Sash Width - Thickness	Sash width: 70mm, Sash thickness: 75.9mm, Glass notch: 50mm
Screen Sash Width - Thickness	Sash width: 55mm, Sash thickness: 29.2mm
Frame Width - Height	Frame wall occupancy: 126mm, Frame width: 52.4mm

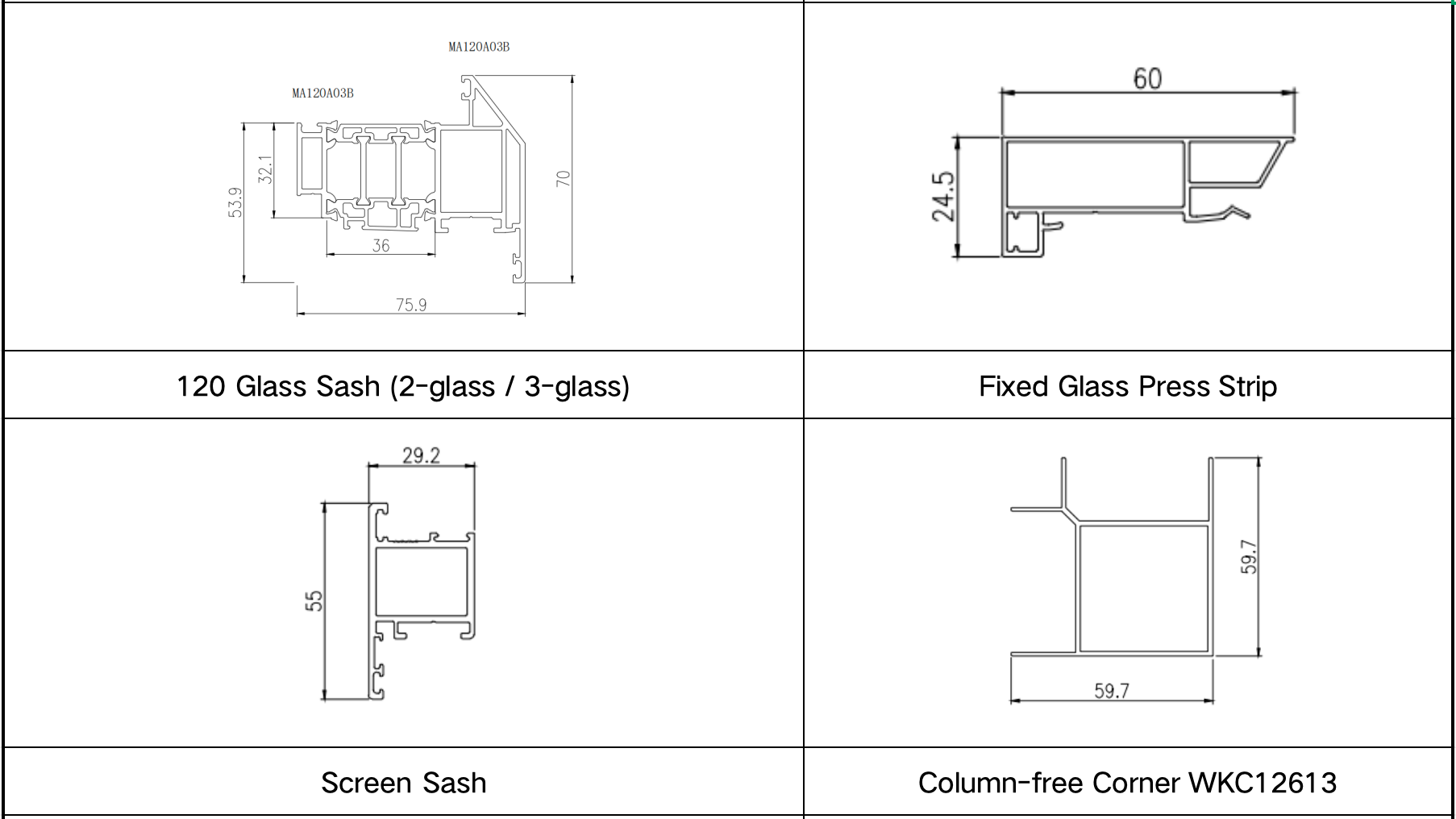

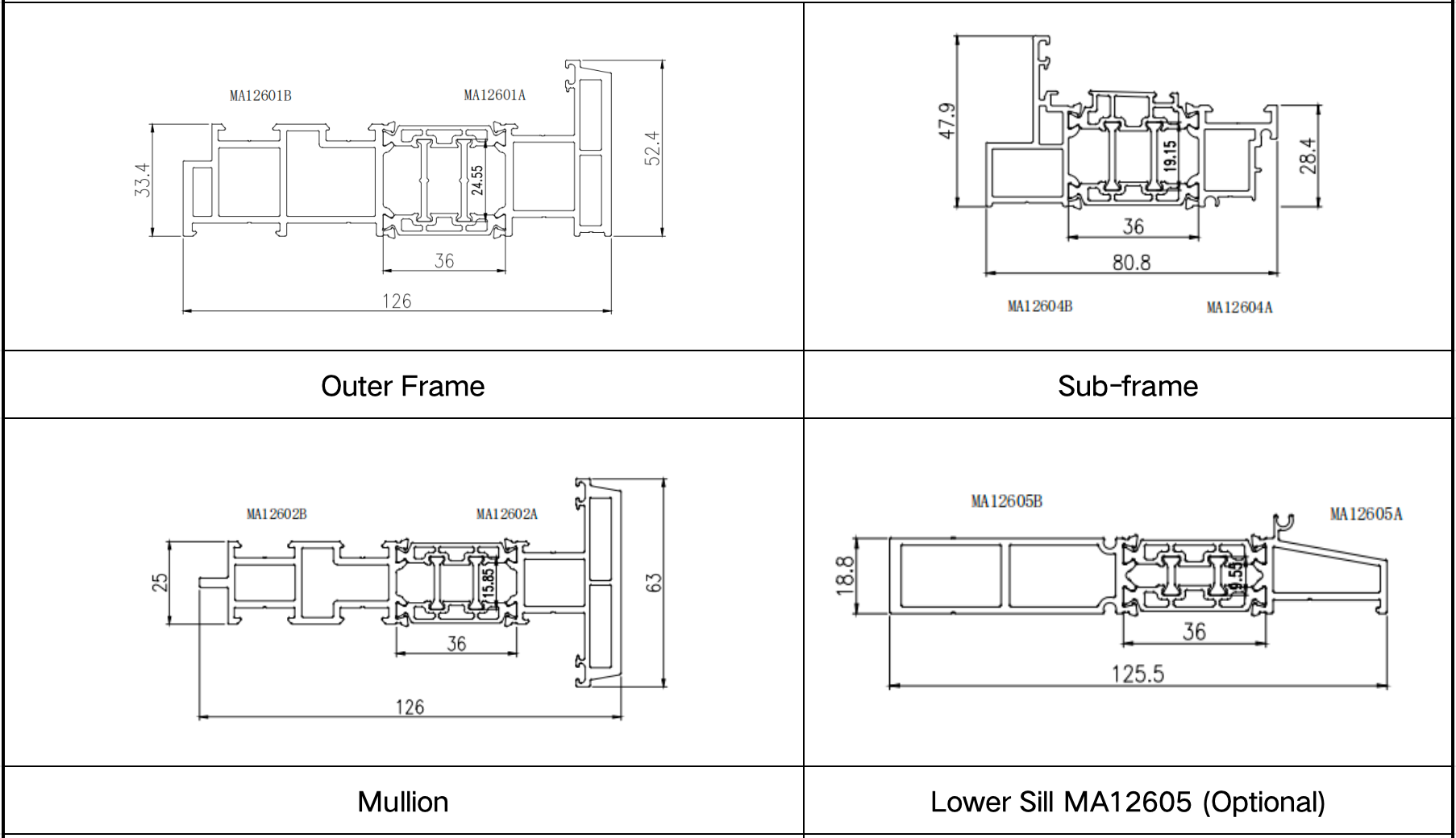

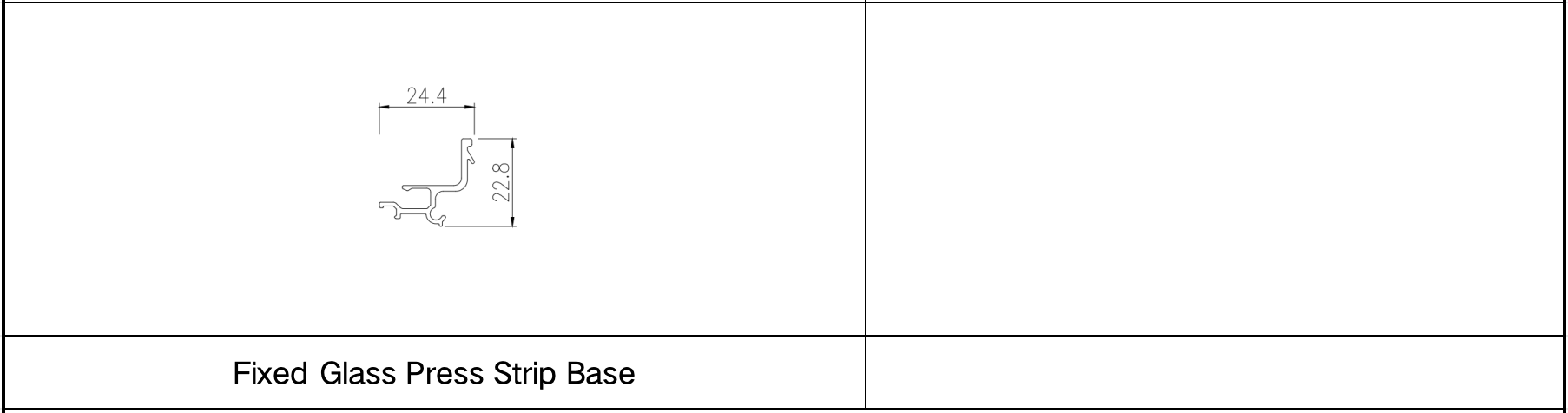

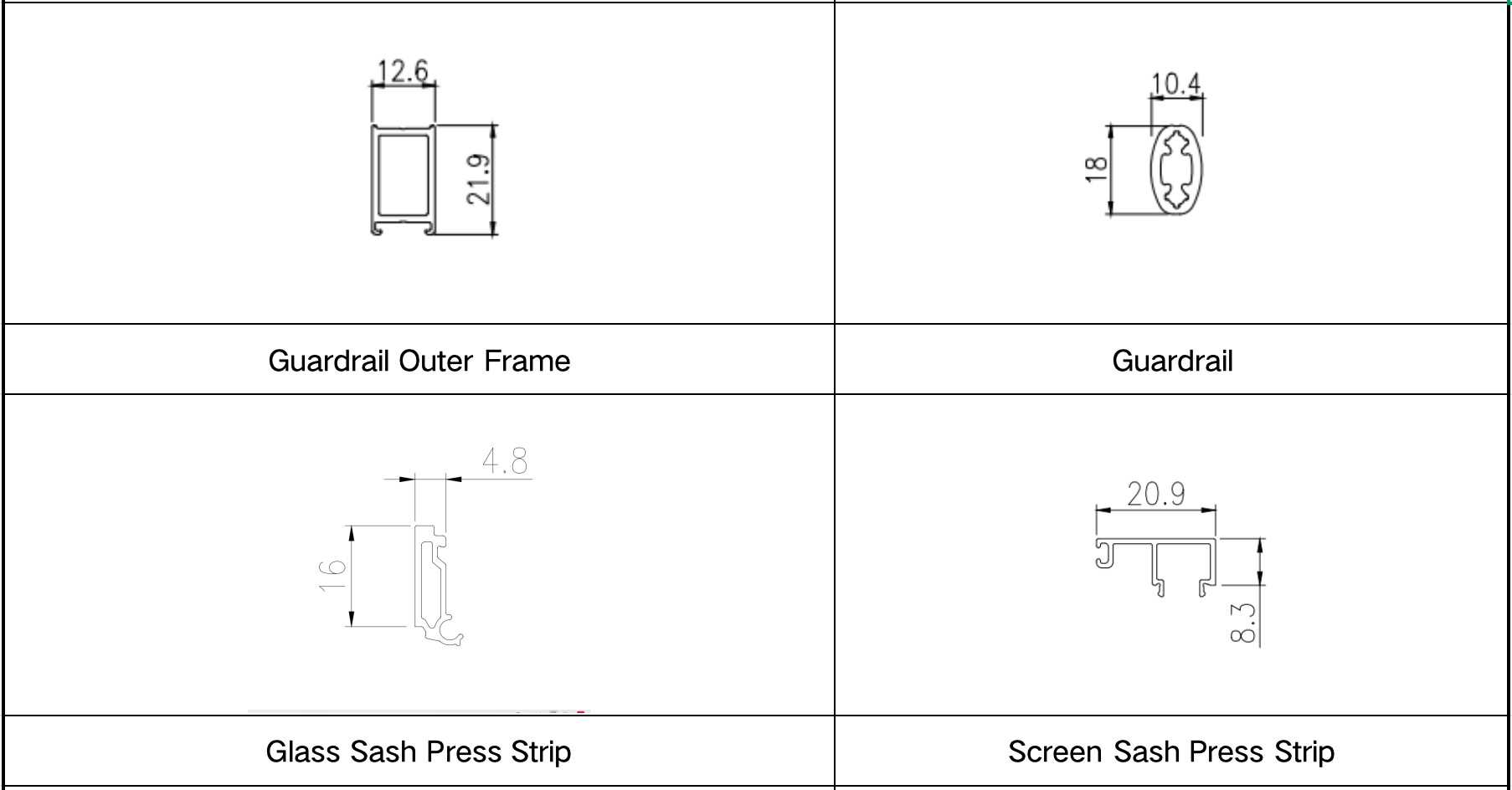

Profile Display Drawing

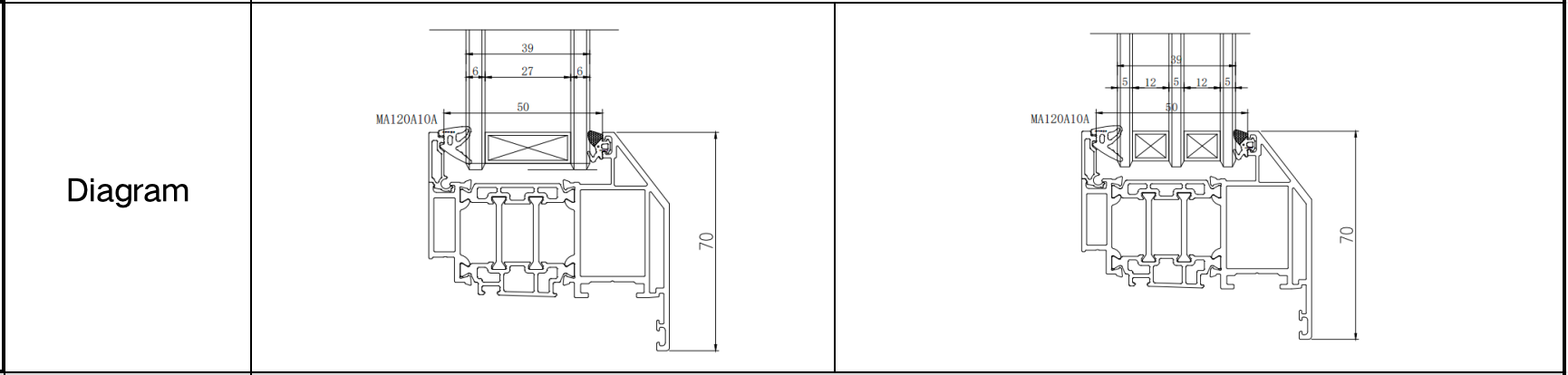

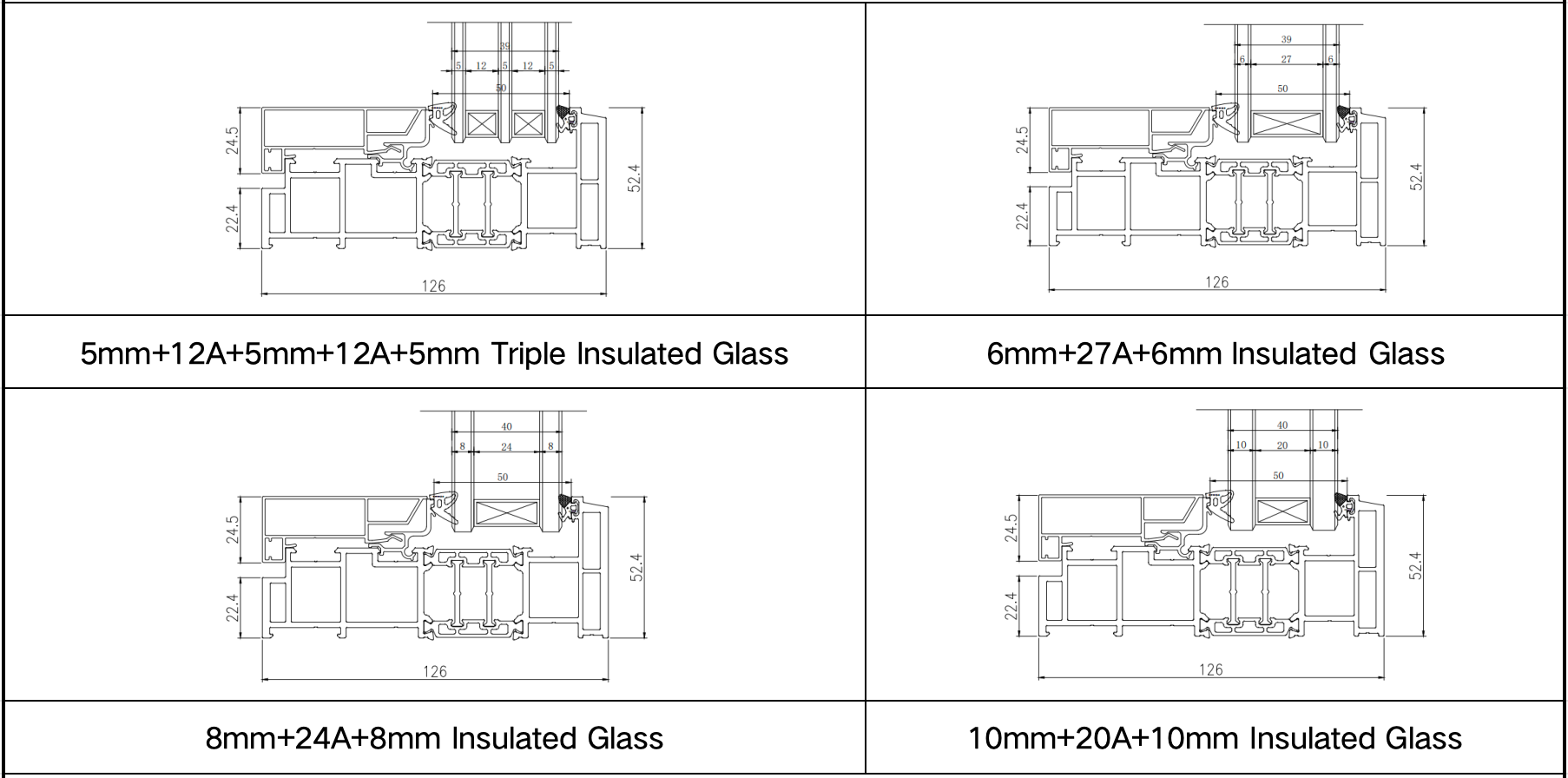

Glass Configuration

Category	Casement Glass
2-glass Standard Configuration	6mm+27A+6mm Insulated Glass, Internal & External Glazing Seals, Press Strip: MA120A10A
Sash Glass Optional Configuration	5mm+12A+5mm+12A+5mm Triple Insulated Glass, Internal & External Glazing Seals, Press Strip: MA120A10A

Category	Fixed Glass
2-glass Standard Configuration	6mm+27A+6mm Insulated Glass, Internal & External Glazing Seals
Fixed Glass Optional Configuration	5mm+12A+5mm+12A+5mm Triple Insulated Glass, Internal & External Glazing Seals
Fixed Glass Optional Configuration	8mm+24A+8mm Insulated Glass, Internal & External Glazing Seals
Fixed Glass Optional Configuration	10mm+20A+10mm Insulated Glass, Internal & External Glazing Seals

Large glass panels for high-rise floors require review; consult technical department for special specifications

Basic Technical Requirements and Parameters

Standard Configuration：

1)  Outward Casement (Glass Sash Exterior, Screen Sash Interior).

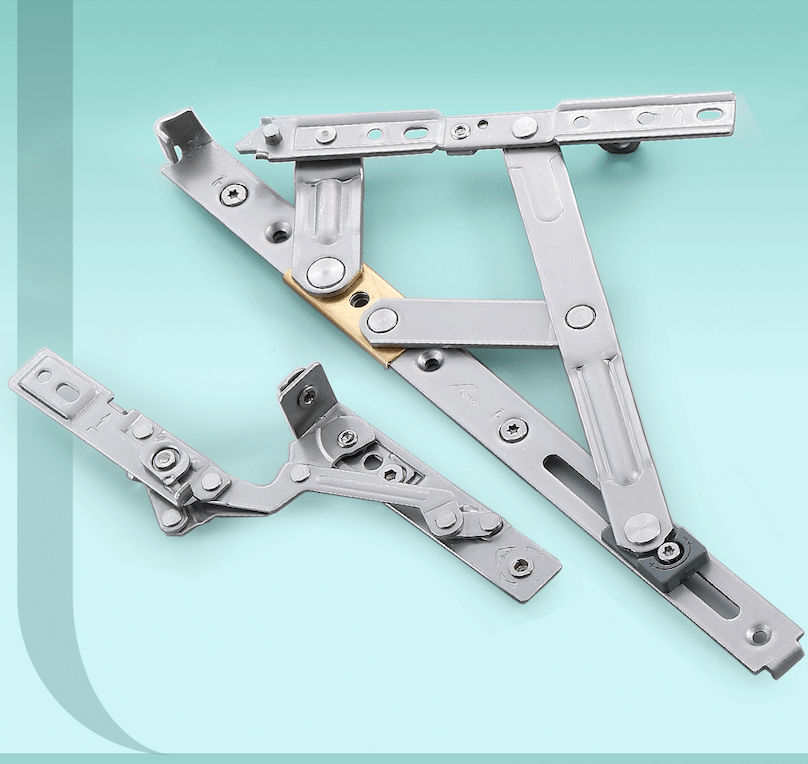

2)  Roto Hardware Internal Components + Roto Hardware External Components             (Glass Sash Load Capacity: 50-60KG, Screen Sash Load Capacity: 15KG).
3)  Standard 04 Grade Stainless Steel Security Mesh.
4)  One-piece Vulcanized Welded Duckbill Sealing Strip.
5)  Rounded Edge Technology (Interior Sash).
6)  Recommended Dimensions (Sash Width: 380-750mm, Sash Height: 800-                 1500mm, Frame Excluded); Handle Height: ≥280mm (Frame Excluded).
7) Glass Sash Opening Angle: 87°, Screen Sash Opening Angle: 180°.

Standard Configuration

1) Glass: Xinyi Original Glass Sheets.
2) Sealing Strips: Xingyao Wuzhou + Haida (Glass Section).
3) Thermal Insulation Strips: Rotterdam Brand.
4) Profiles: Xinhe Aluminum Profiles.

Optional Configuration

1) Optional: Monochrome Special Operable Guardrail (Oval Anti-theft Grille) /              Optional Fixed Guardrail.
2) Screen Sash Options: 25# High-clarity Mesh, High-transparency Mesh (Nylon          Mesh).

Special Instructions

1) When mullion height ≥ 2600mm, it is recommended to install reinforced                  aluminum strips inside the mullion.

2) When glass thickness ≥ 8mm, reinforced aluminum strips must be installed in          the bottom frame; additionally, if glass area ＞ 4.5 ㎡ and height ≥ 2600mm,            reinforced aluminum strips are also required for vertical mullions.

3) Flat bending and three-dimensional bending are not available for this series for        the time being; new profiles and functions will be added as needed in the future.

Process Requirements

1) Apply section waterproof adhesive to 45° miter joints; apply waterproof adhesive      to the joints between outer frame and mullions; fill foam adhesive between outer      frame and subframe; inject adhesive into corner connectors.

2) Thermal insulation strips shall comply with the new national standard.

3) When bottom windowsill (MA12605) is installed, hidden drainage holes must be        drilled on the bottom frame.

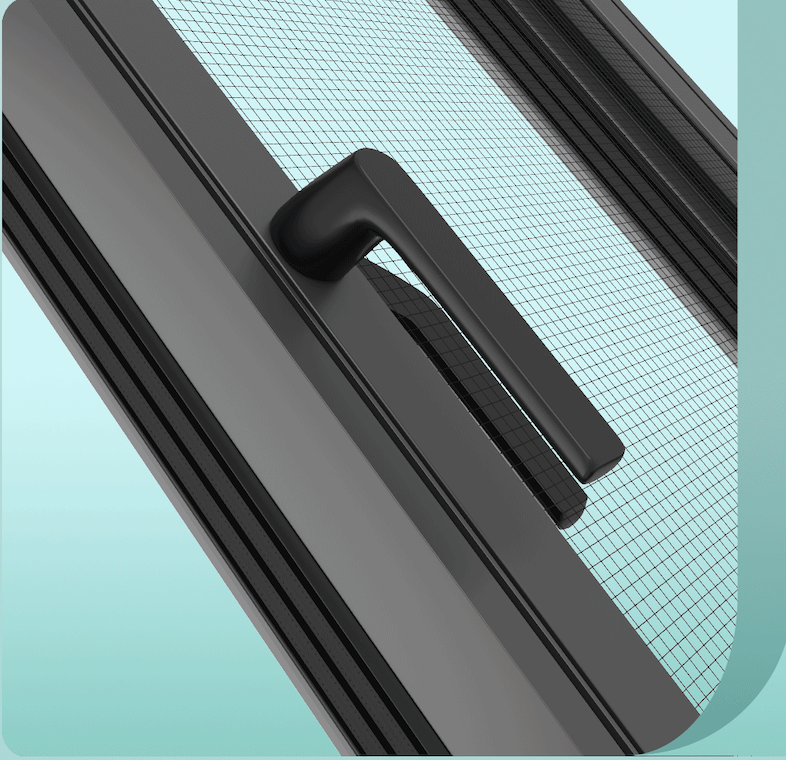

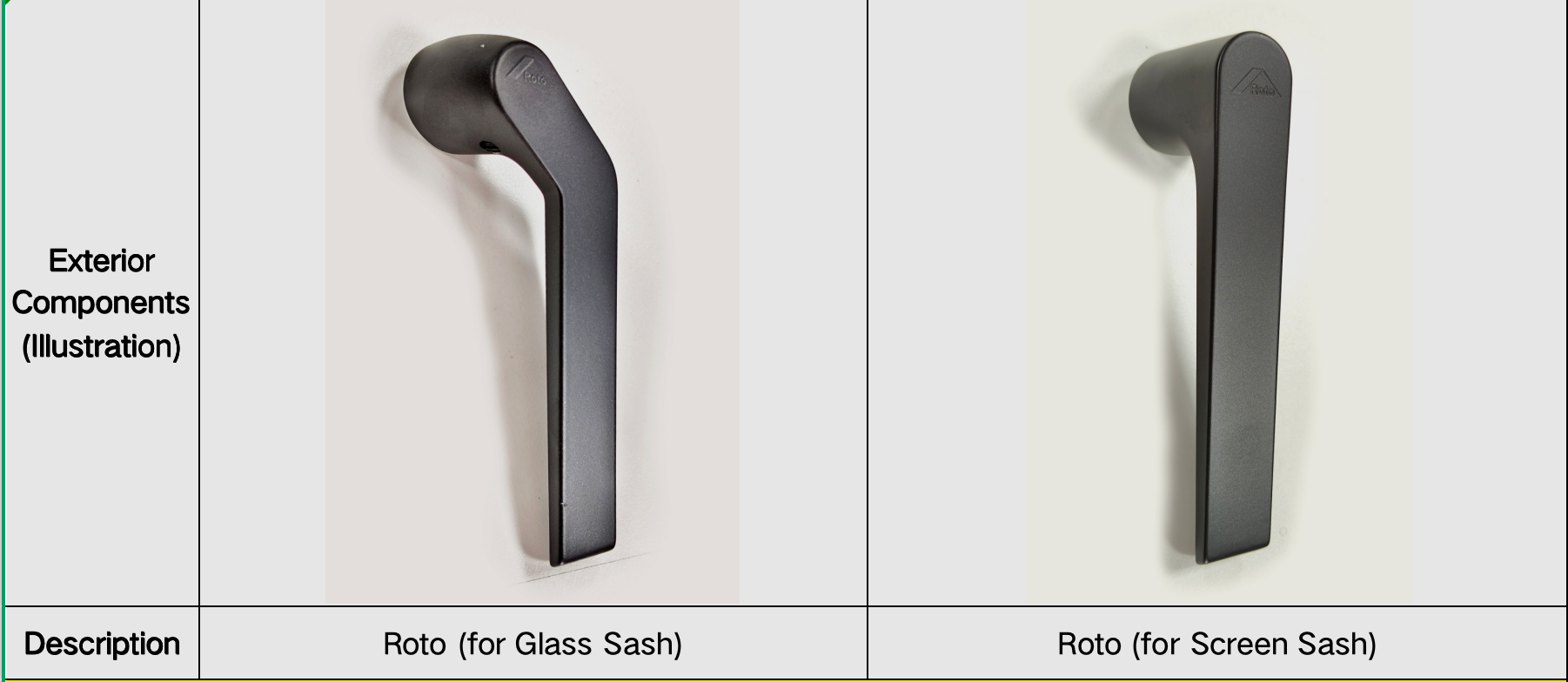

Exterior Handle Photos

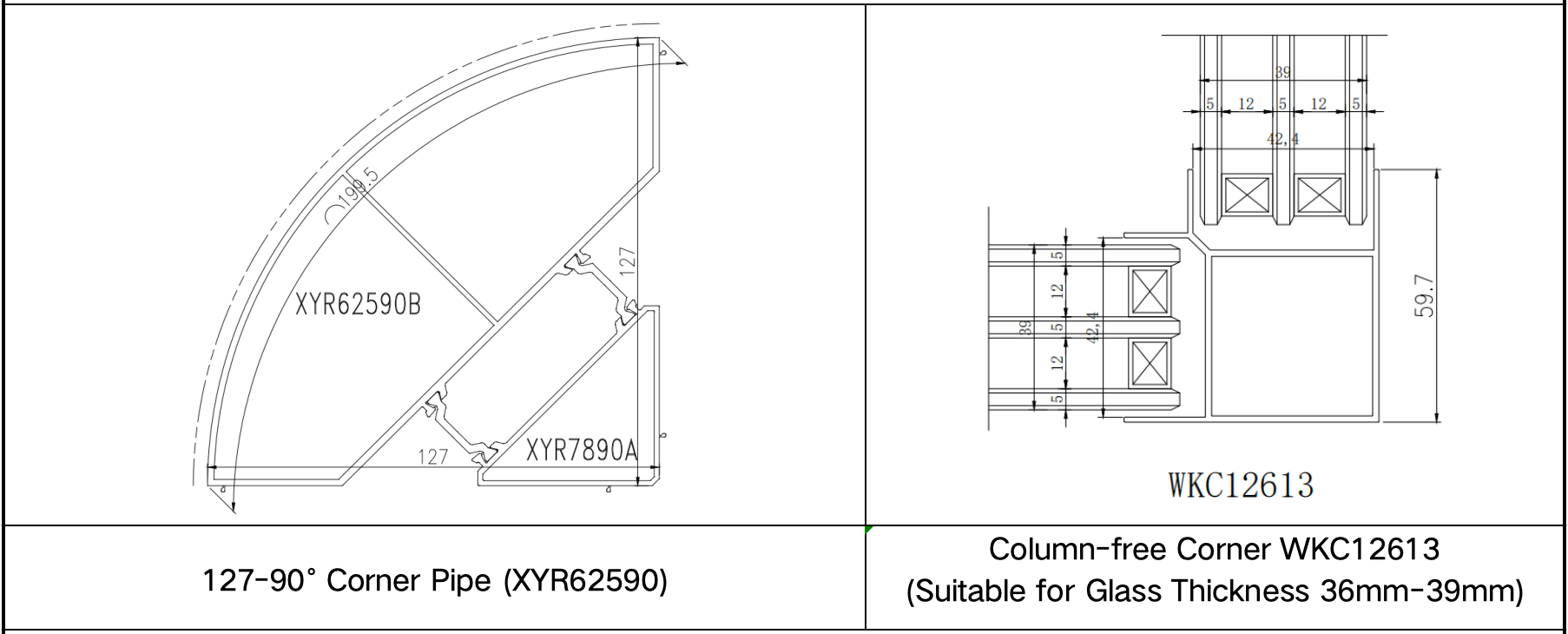

Corner Profile

Product Features：

Main material wall thickness: frame 3.0mm/2.0mm, sash 1.8mm;

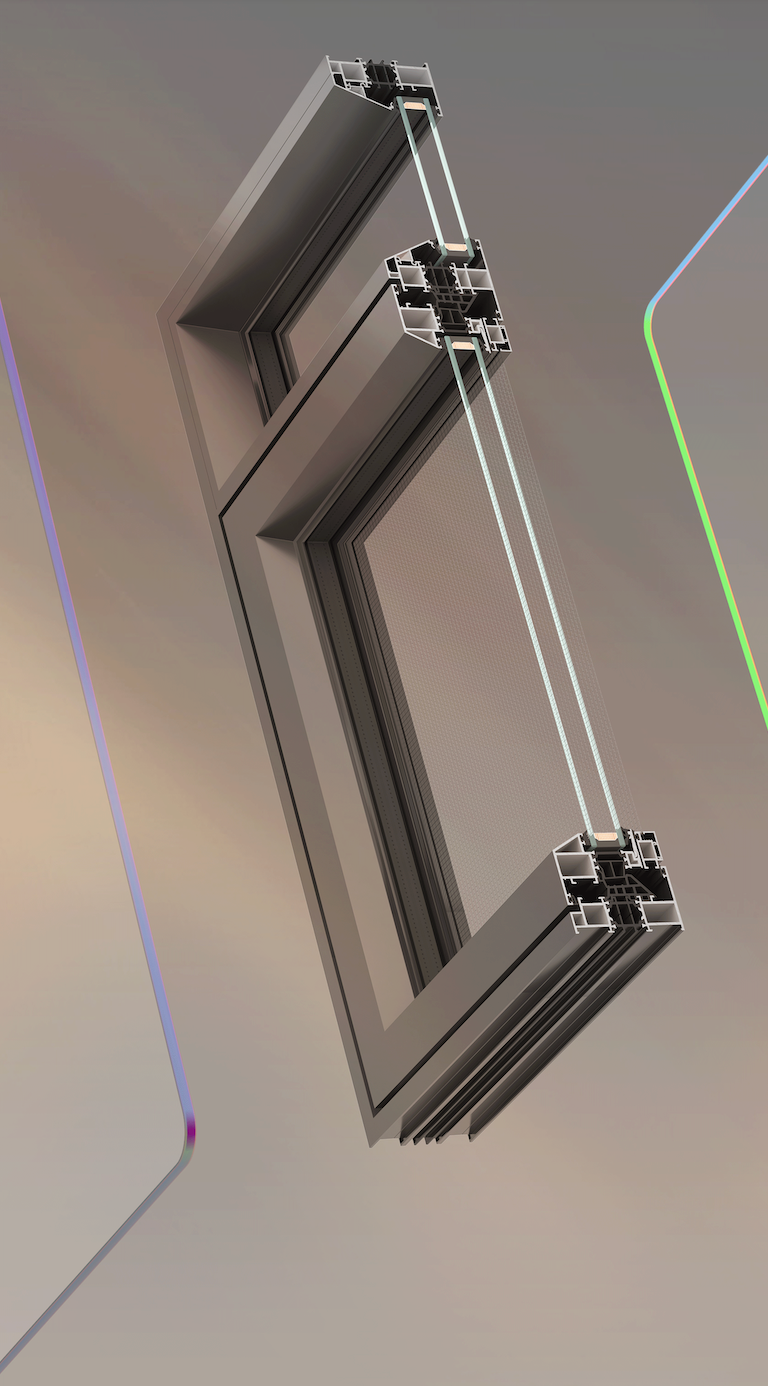

9-chamber frame + 8-chamber mullion + 7-chamber glass sash structure for superior thermal insulation performance;

5th-generation core-reinforced thermal insulation strips;

Glue-injected corner connector assembly process for enhanced joint strength;

Standard-equipped Roto hardware (without base);

Adopts one-piece vulcanized welded duckbill sealing strips + triple sealing for opening parts;

Integrated snap-fit pressure line for a uniformly flat surface;

Flush alignment of frame and sash (interior and exterior) for a sleek, modern appearance;
Magnetic attraction assist for one-step closing;

Rounded edge technology applied to interior sashes, effectively preventing sash corner collisions for both aesthetics and safety;

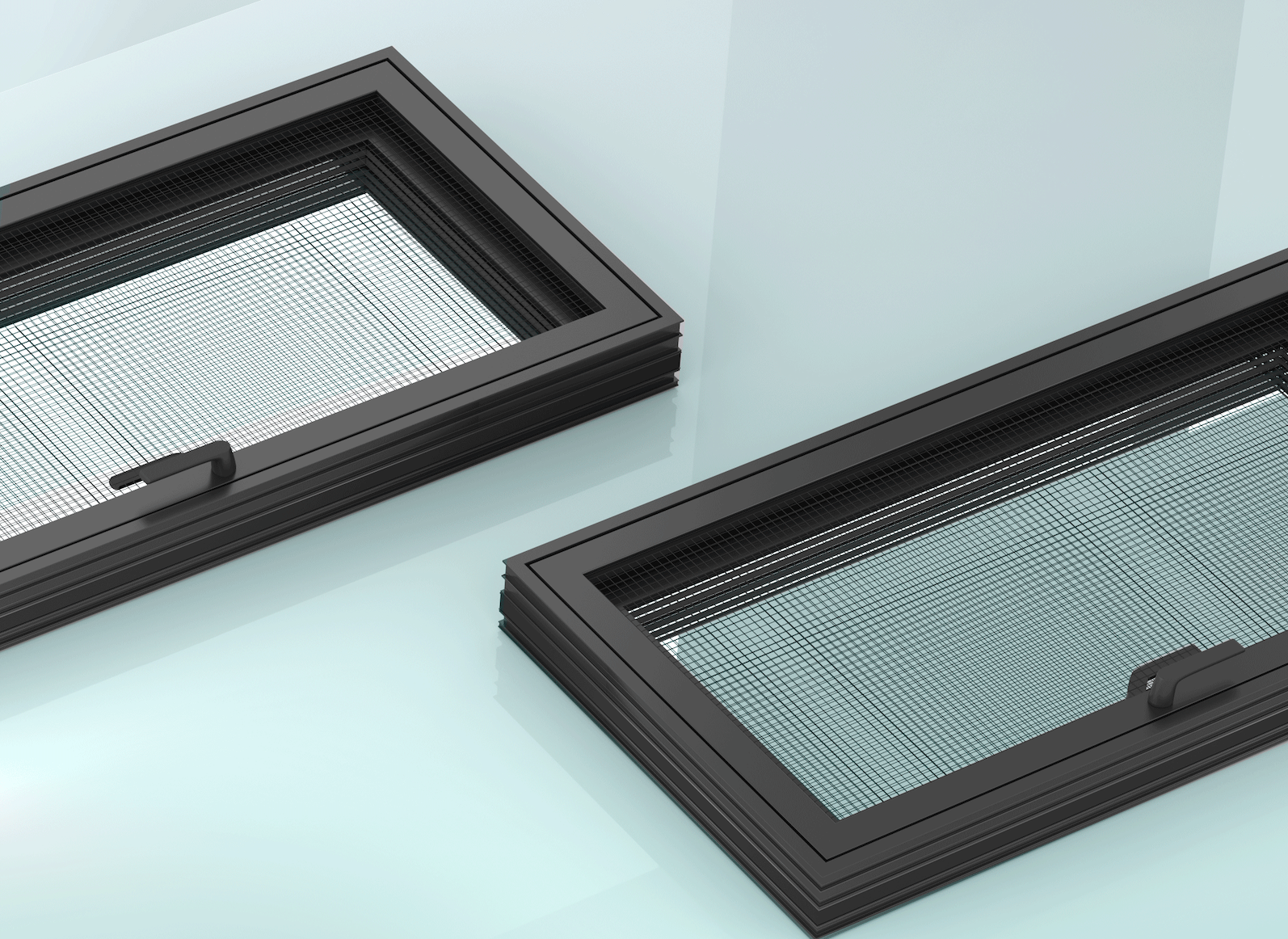

Compatible with 04-grade stainless steel security mesh / 25# high-clarity mesh, high-transparency mesh (nylon mesh);

Available with column-free corner design for an enhanced visual effect;

Can be configured with operable/fixed guardrails;

Optional bottom windowsill with hidden drainage function;

Haida sealing strips as standard for both interior and exterior glass sides.

Order Taking Notes and Technical Parameters

Before door and window design, the thickness of the installation wall shall be confirmed to select the corresponding series and casings.

When placing an order, the interior and exterior colors must be clearly specified.

When placing an order, the glass specifications shall be indicated; if no special instructions are provided, the products will be manufactured in accordance with the standard - configured glass by default.

For construction scenarios where transportation is mainly carried out by elevators or stairs, a reasonable mullion - joint design can be adopted.

The opening sashes must be strictly controlled within the reasonable design range; otherwise, hardware installation may not be possible or potential safety hazards may arise.

Technical Parameters—The data and information shall be subject to the updated version and information released by the company.
