Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
Sales Colors
| Category | Color Options |
|---|---|
| Indoor Colors | Starry Sky Gray, Cream White, Mocha Brown, Elegant Black |
| Outdoor Colors | Starry Sky Gray, Cream White, Mocha Brown, Elegant Black |

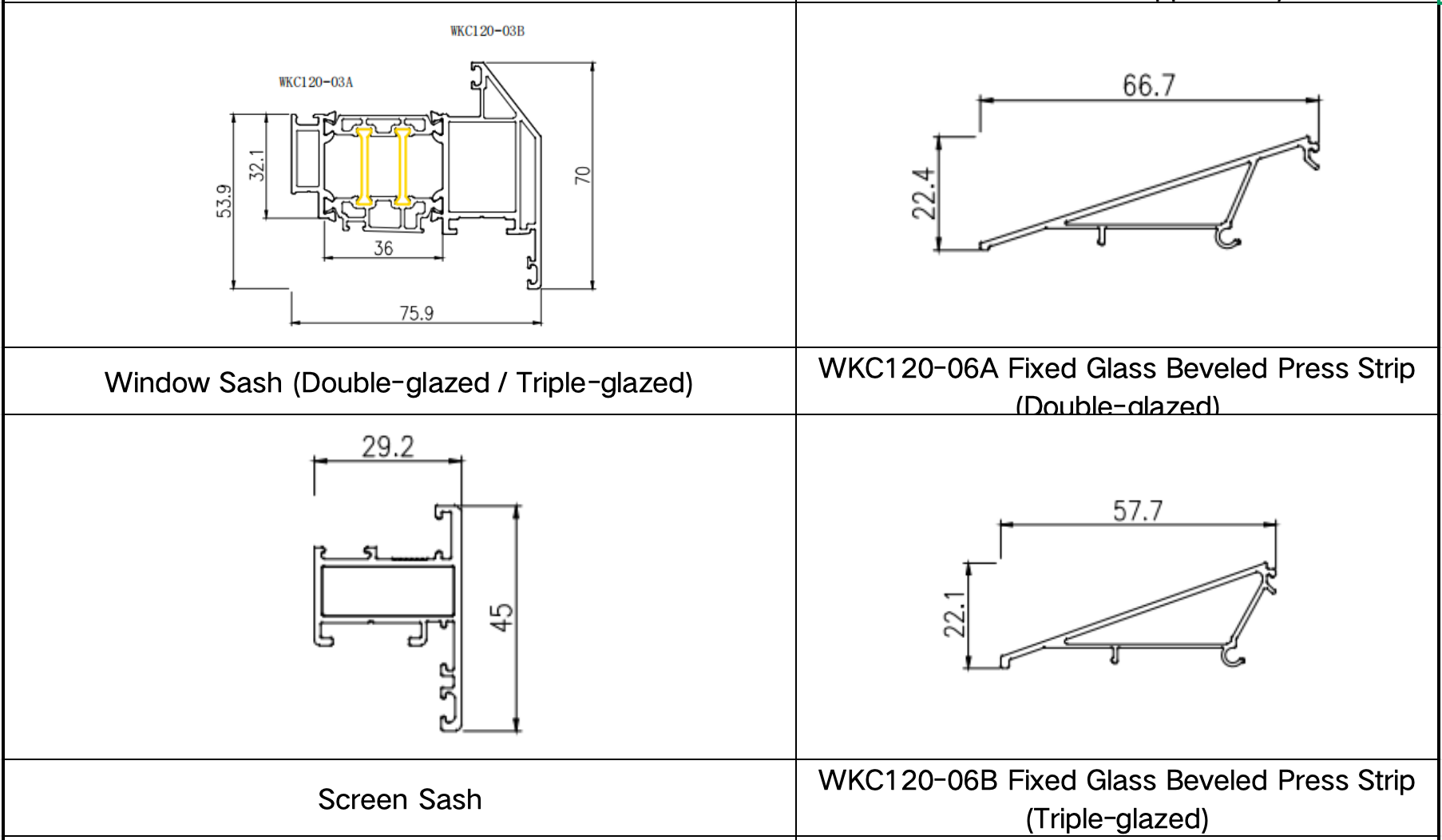

| Item Name | Dimension Data |
|---|---|
| Main Material Thickness | 1.8mm |

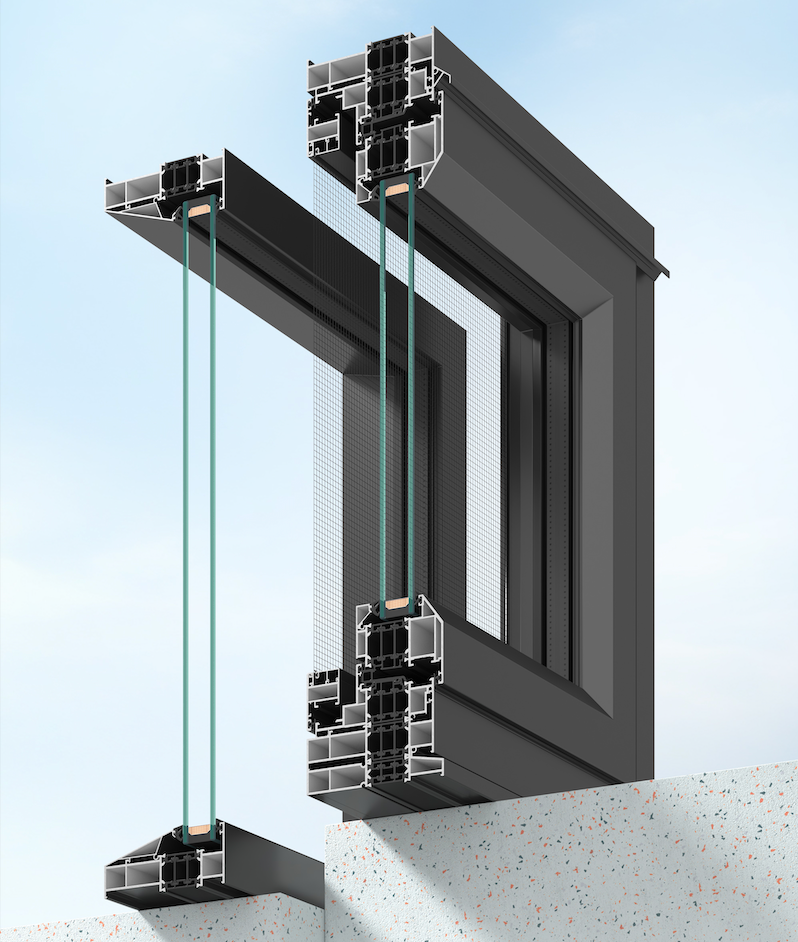

| Glass Sash Width & Thickness | Sash width 70mm, sash thickness 75.9mm, glass notch 41mm (double-glazed) / 50mm (triple-glazed) |
| Screen Sash Width & Thickness | Sash width 45mm, sash thickness 29.2mm |

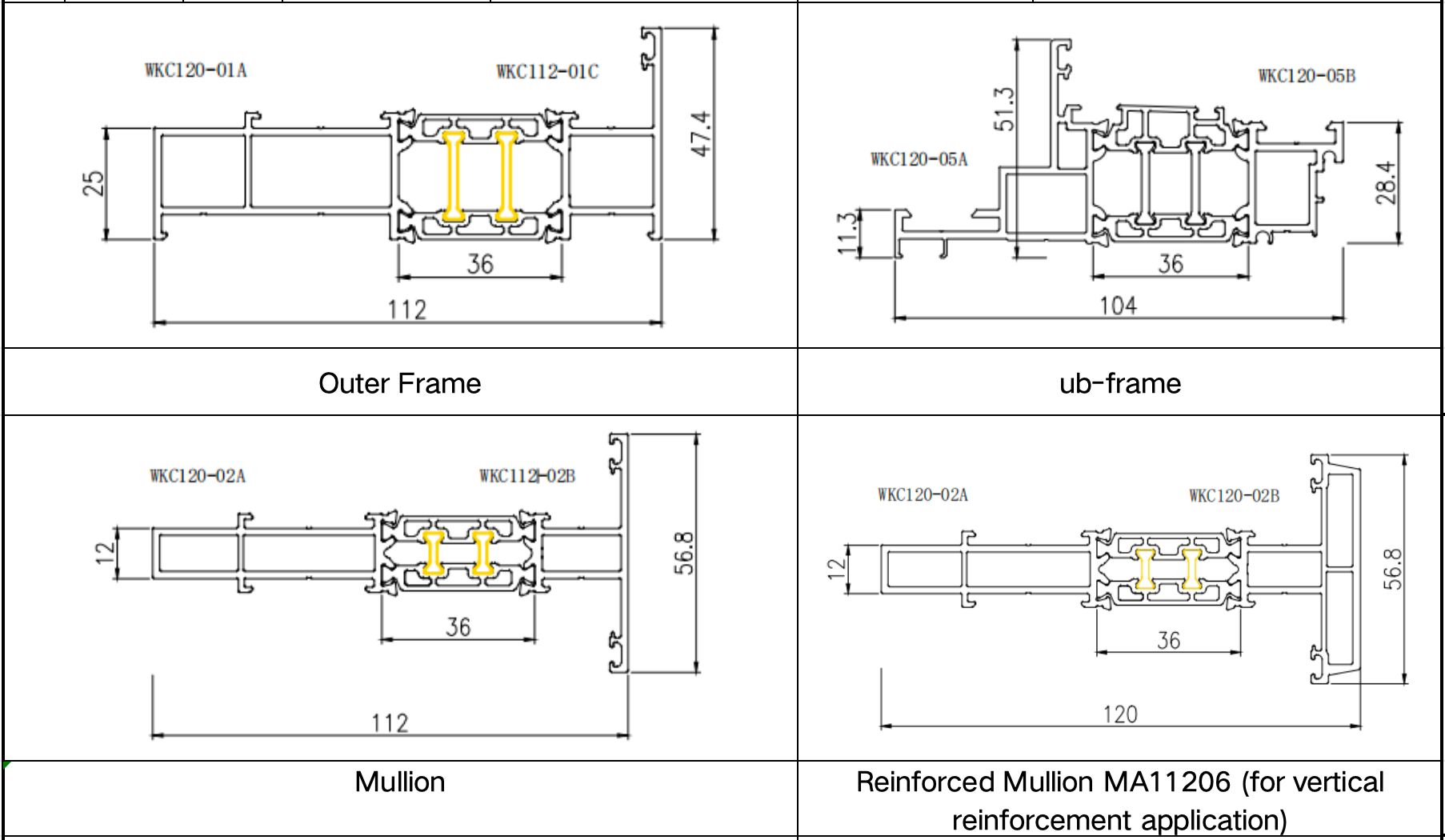

| Frame Width & Height | Frame wall occupancy 112mm, frame width 47.4mm |
| Item Name | Dimension Data |
|---|---|
| Main Material Thickness | 1.8mm |
| Glass Sash Width & Thickness | Sash width 70mm, sash thickness 75.9mm, glass notch 41mm (double-glazed) / 50mm (triple-glazed) |
| Screen Sash Width & Thickness | Sash width 45mm, sash thickness 29.2mm |
| Frame Width & Height | Frame wall occupancy 112mm, frame width 47.4mm |

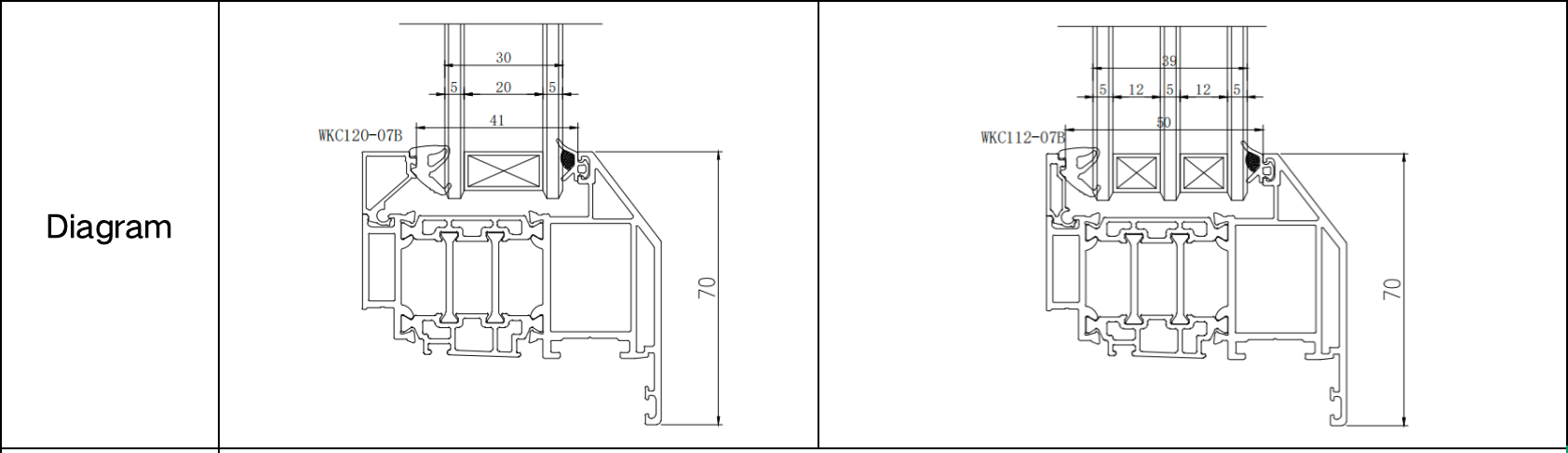

| Configuration | Casement Glass |
|---|---|
| Standard Configuration for Double - Glazing Solution | 5mm + 20A + 5mm insulated glass, internal and external pressure - applied rubber strips, glazing bead adopts WKC120 - 07B |
| Standard Configuration for Triple - Glazing Solution | 5mm + 12A + 5mm + 12A + 5mm insulated glass (standard with 3i - LOW - E glass), internal and external pressure - applied rubber strips, glazing bead adopts WKC112 - 07B |

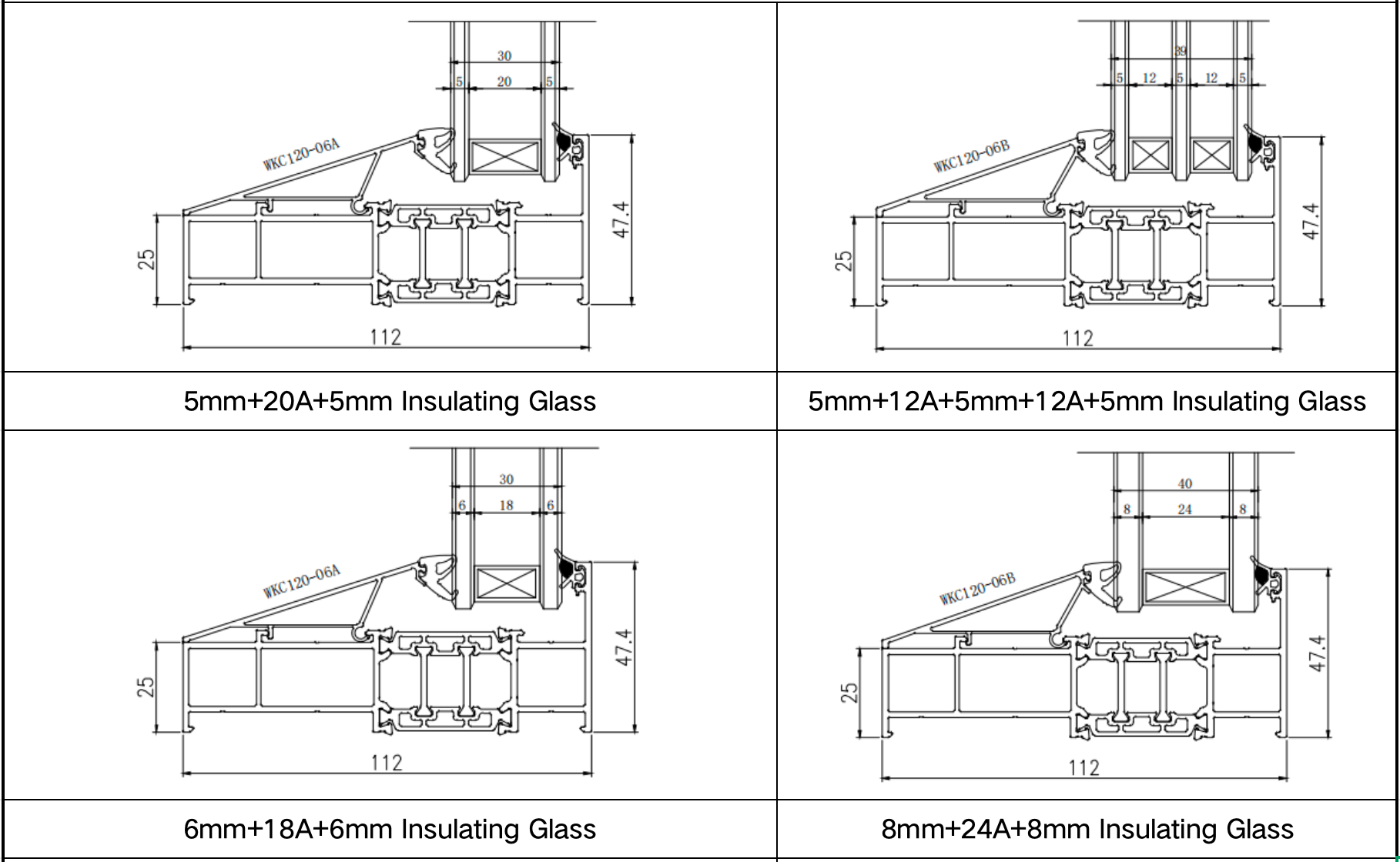

| Configuration | Fixed Glass |
|---|---|
| Standard Configuration for Double-Glazing Solution | 5mm + 20A + 5mm insulated glass, internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06A |
| Standard Configuration for Triple-Glazing Solution | 5mm + 12A + 5mm + 12A + 5mm insulated glass (standard with 3i-LOW-E glass), internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06B |
| Optional Configuration for Double-Glazing Solution | 6mm + 18A + 6mm insulated glass, internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06A |

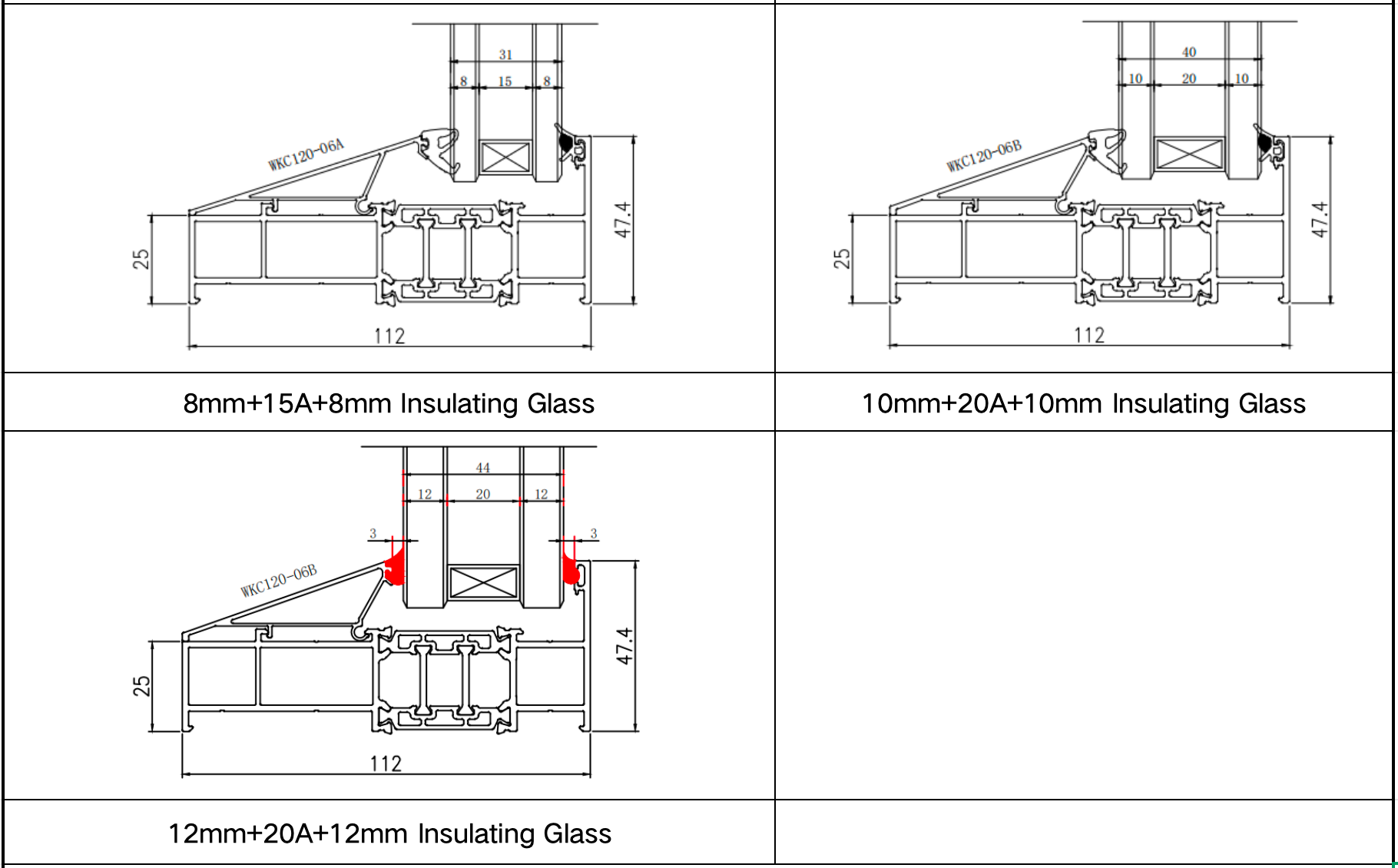

| Optional Configuration for Double-Glazing Solution | 8mm + 15A + 8mm insulated glass, internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06A |
| Optional Configuration for Double-Glazing Solution | 8mm + 24A + 8mm insulated glass, internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06B |
| Optional Configuration for Double-Glazing Solution | 10mm + 20A + 10mm insulated glass, internal and external pressure-applied rubber strips, glazing bead adopts WKC120-06B |
| Optional Configuration for Double-Glazing Solution | 12mm + 20A + 12mm insulated glass, internal and external sealant application, glazing bead adopts WKC120-06B |
1.Standard: Outward opening (outer glass with inner screen), outward opening and bottom-hung.
2.Standard: HOPO hardware internal components + HOPO hardware external components (black/silver).
3.Screen sash: Standard configuration of stainless steel security mesh (thickness: 0.4mm).

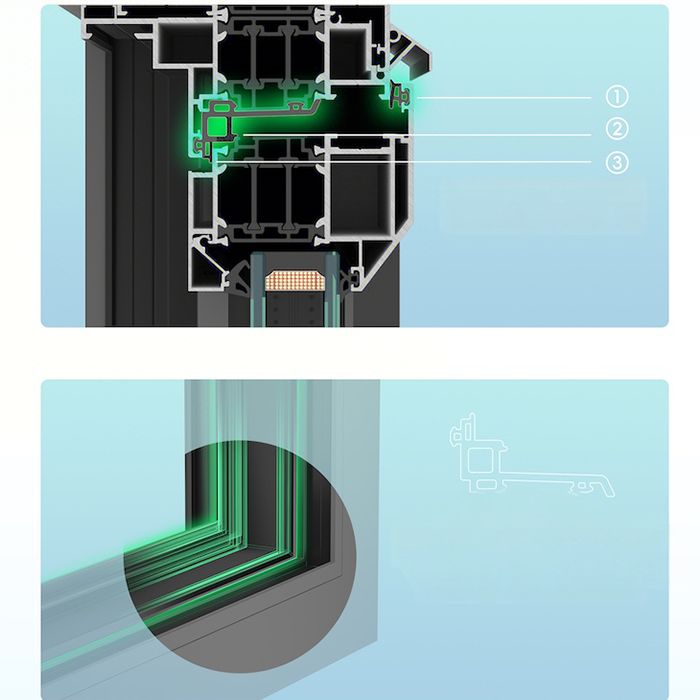

4.Standard: Integrally vulcanized and welded duckbill rubber strip.
5.Standard: 4mm zinc alloy corner guard.
6.Standard: Recommended dimensions (sash width: 400–750mm, sash height: 600–1500mm). The height of the handle shall not be less than 280mm (based on sash height). (Load-bearing capacity: 60KG). Add lifting blocks when the sash width exceeds 550mm.
 |
 |
Optional Configuration：
1.Optional Configuration: HOPO (Shenzhen) outward opening and bottom-hung fittings. Dimension requirements: sash width 530mm–850mm, sash height 680mm–1950mm. Load-bearing capacity: 80KG. Handle height: minimum 380mm (based on sash height). When the handle is installed in the center, the minimum sash height shall be 760mm. The anti-falling device shall be installed 223mm away from the upper notch. It is recommended to install an intermediate lock when the sash height exceeds 1200mm.
2.Optional single-color dedicated openable protective guard (elliptical anti-theft grille) / optional fixed protective guard.
3.Optional screen sash configurations: 25# high-clarity mesh, high-transparency mesh (nylon mesh).
 |
 |
Special Instructions：

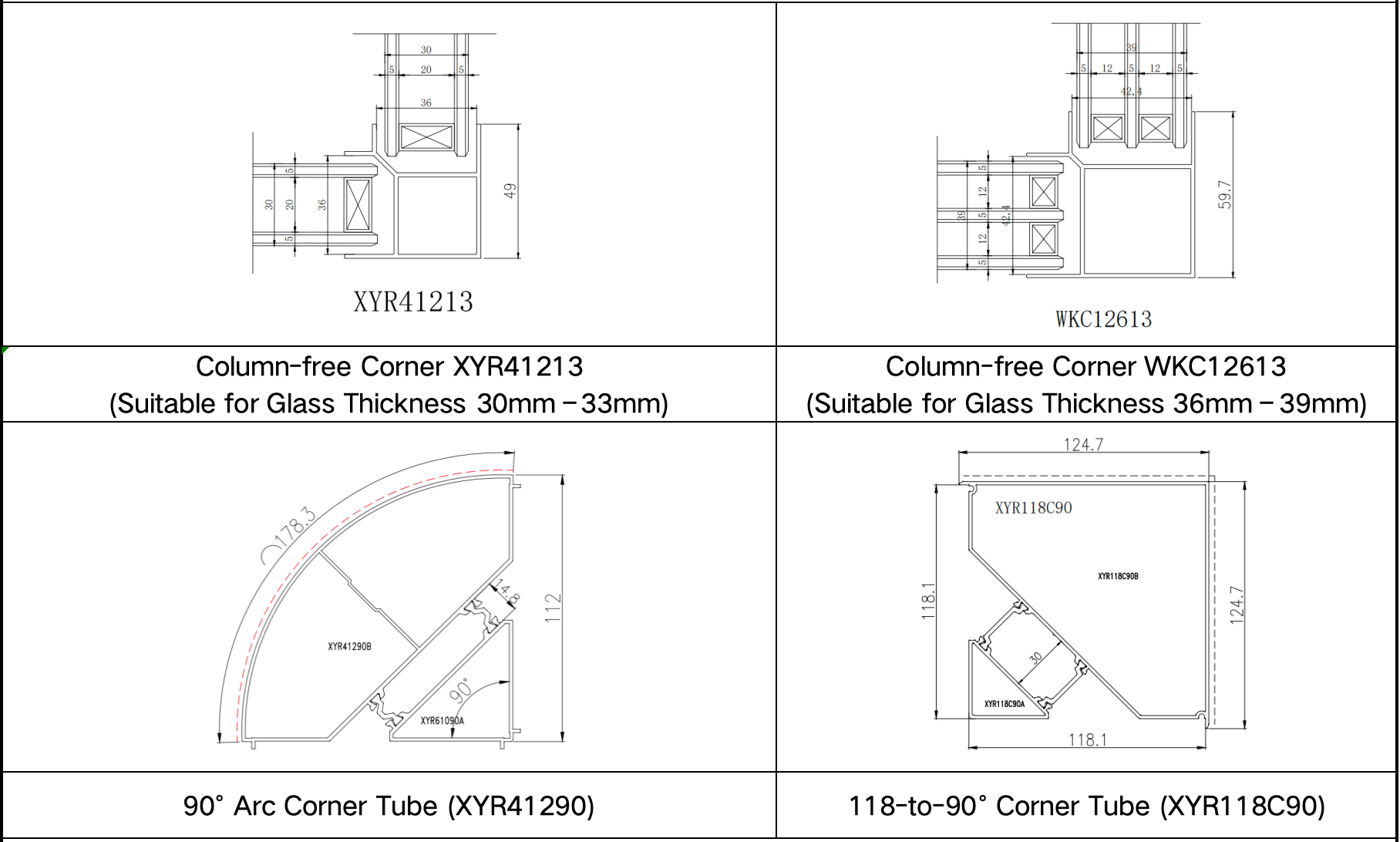

1.When the height of the mullion is ≥ 2500mm, it is recommended to install the reinforced mullion (MA11206) as an option.
2.When the glass thickness is ≥ 8mm, a reinforced aluminum strip must be inserted into the bottom frame. In addition, if the glass area exceeds 4 ㎡ or the height is ≥ 2500mm, reinforced aluminum strips must be inserted into the vertical mullions simultaneously.
3.This series adopts beveled glazing beads, and flat bending or three-dimensional bending is not available for the time being. New profiles and functional components will be added in the future according to actual needs.
Process Requirements：
1.Apply section waterproof sealant to the 45° miter joints. Apply waterproof sealant to the joints between the outer frame and mullions. Fill the gap between the outer frame and sub-frame with foam sealant, and inject glue into the corner connectors.

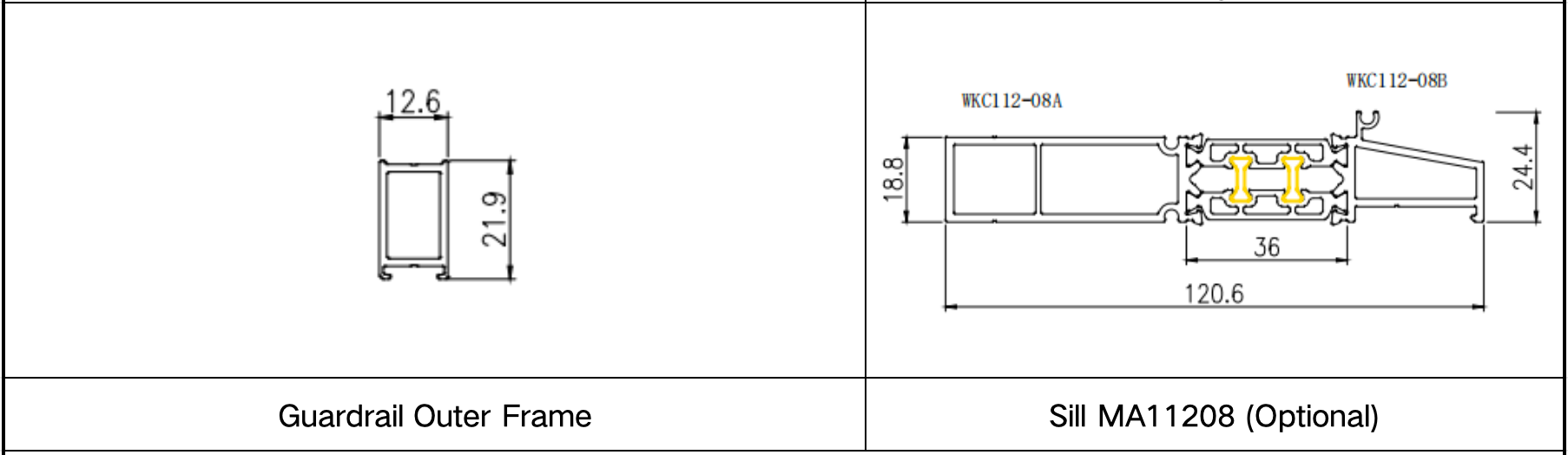

2.When the sill component (MA11208) is used, hidden drainage holes must be drilled on the bottom frame.
3.The thermal insulation strips shall comply with the new national standard, and the triple-glazed insulated glass (three panes with two cavities) shall be equipped with 3i-LOW-E glass as standard.

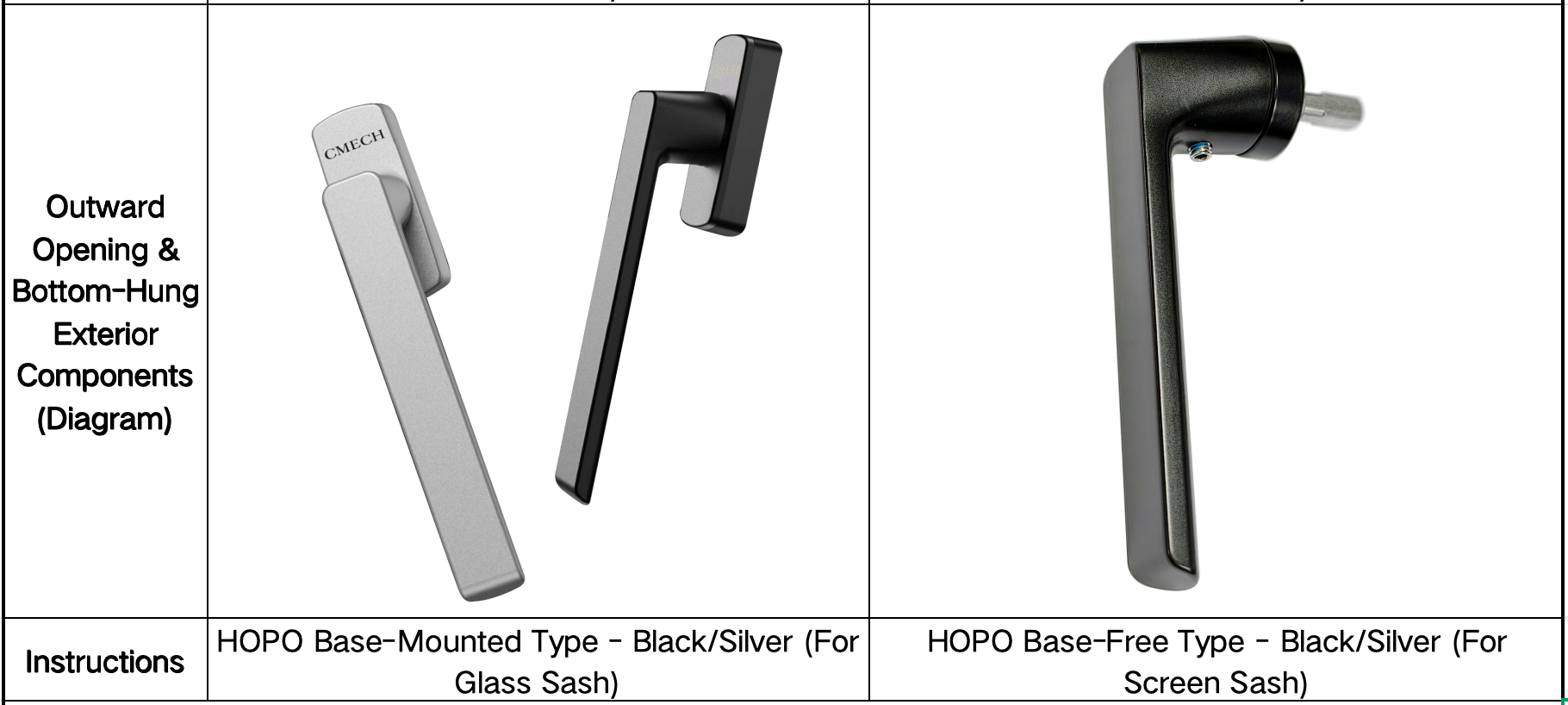

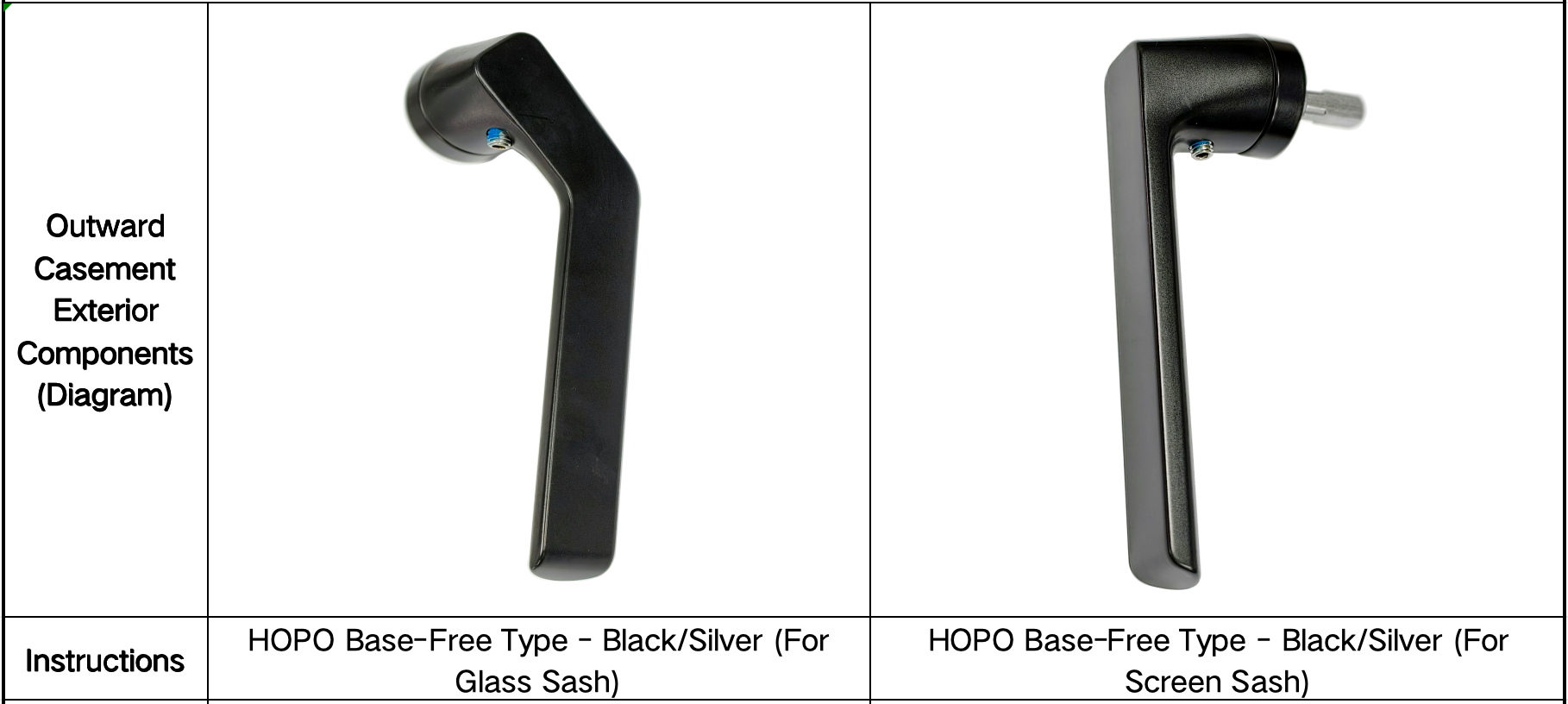

Photos of Exterior Handles
Order Taking Notes & Technical Parameters
1.Prior to window and door design, the thickness of the installation wall shall be confirmed to select the corresponding series and casings.
2.The interior and exterior colors must be clearly specified when placing an order.
3.The glass specifications shall be indicated upon order placement. In the absence of special instructions, the production shall be carried out in accordance with the standard - configured glass by default.
4.For construction scenarios where transportation is mainly via elevators or stairwells, a reasonable mullion - joint design can be adopted.
5.The opening sashes must be strictly designed within the allowable range; otherwise, hardware installation may not be feasible or potential safety hazards may arise.
6.Technical Parameters - The data and information shall be subject to the company's updated version and latest release.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
