Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
Sales Colors
| Item | Color Options |
|---|---|
| Indoor Color | Starry Sky Gray, Cream White, Mocha Coffee, Elegant Black |
| Outdoor Color | Starry Sky Gray, Cream White, Mocha Coffee, Elegant Black |
 |
 |

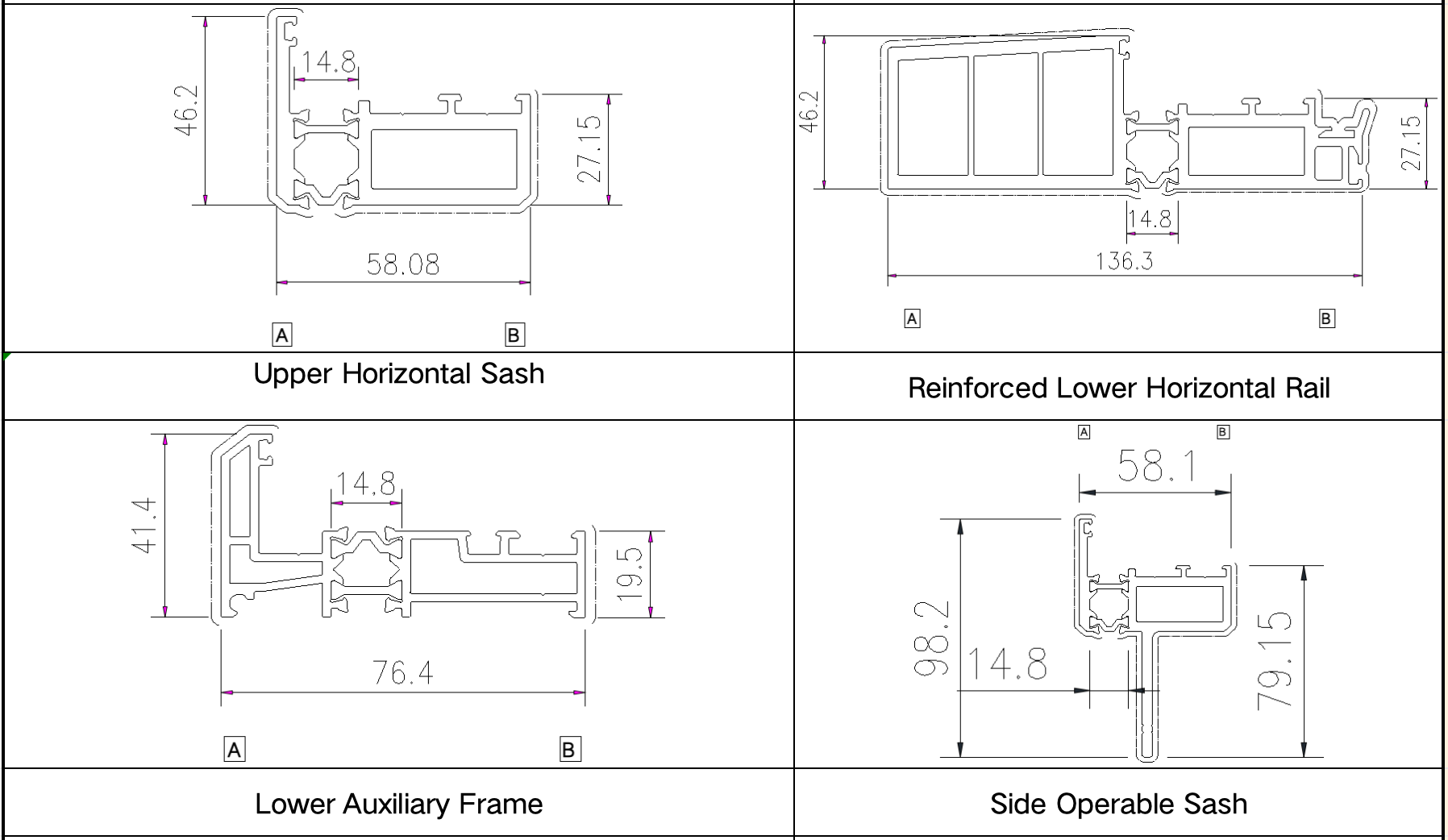

| Item Name | Dimension Data |
|---|---|
| Main Material Thickness | Frame: 2.0mm, Sash: 2.0mm |
| Glass Sash Width - Thickness | Sash Width: 63mm, Sash Thickness: 84.2mm, Glass Notch: 40mm (double glazing) / 50mm (triple glazing) |
| Screen Sash Width - Thickness | Sash Width: 31.7mm, Sash Thickness: 18.3mm |

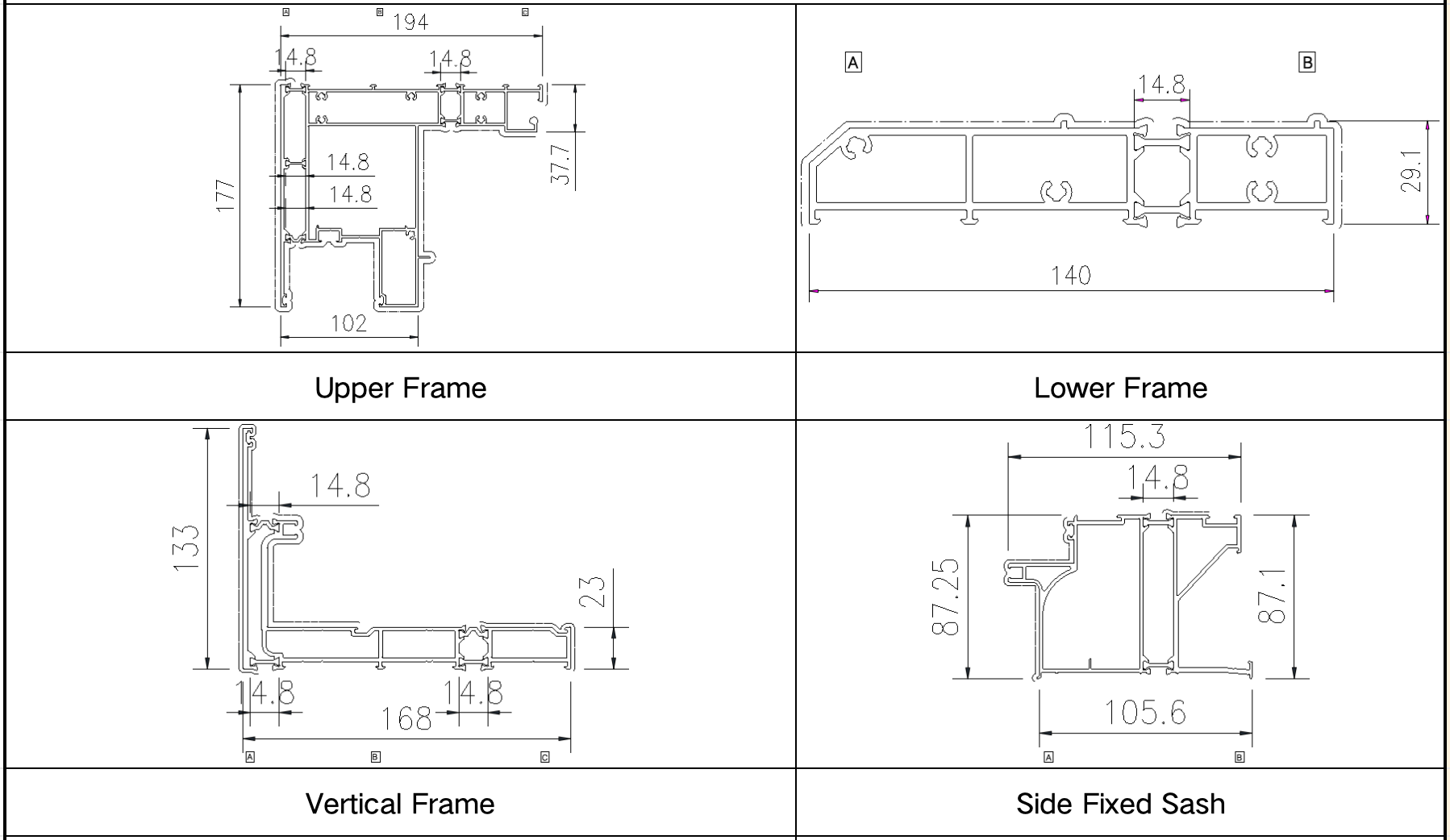

| Frame Width - Height | Frame Wall Occupation: 104.8mm, Frame Width: 54.5mm |
 |
 |
| ON | Configuration | Opening Sash Glass |
|---|---|---|

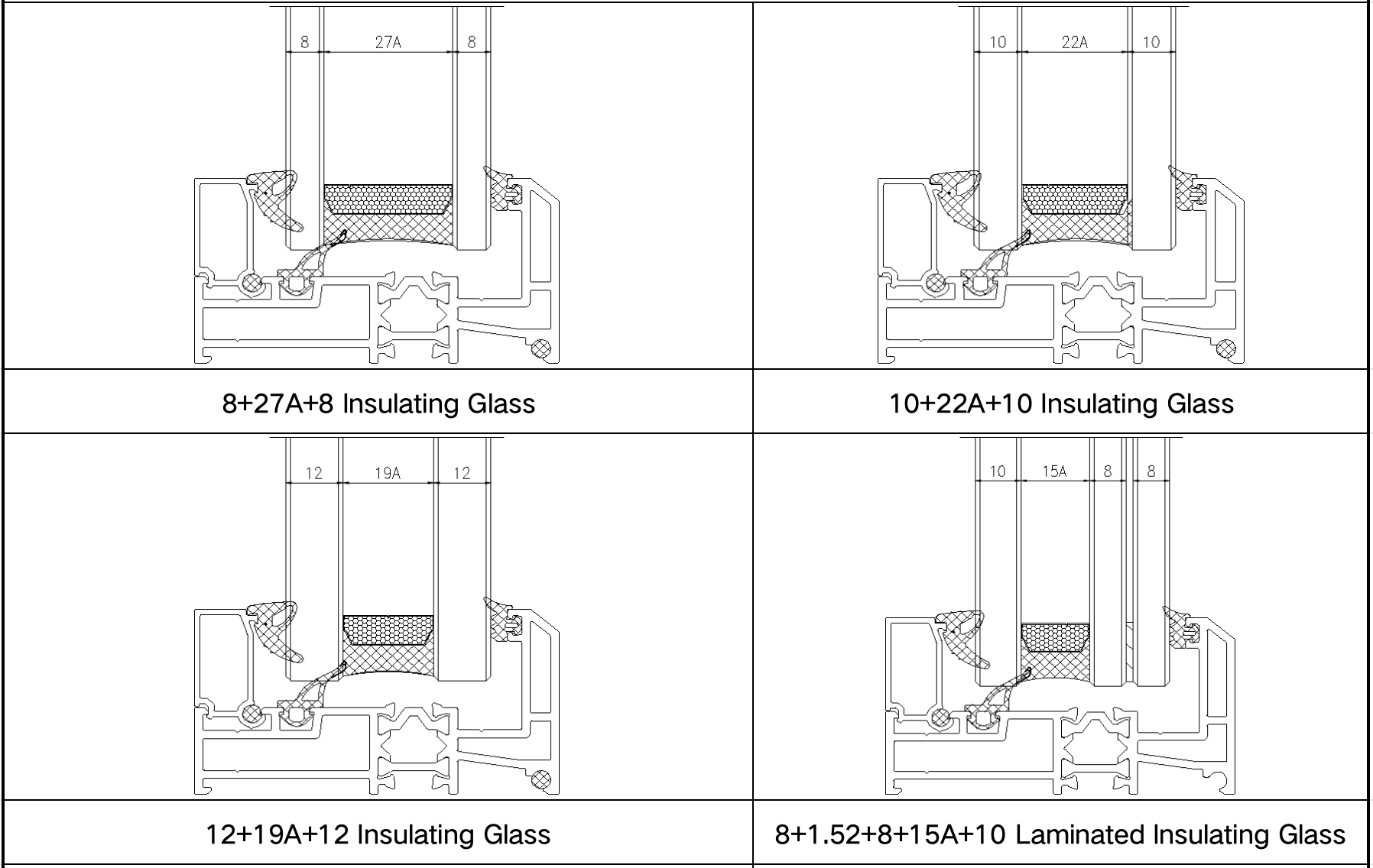

| 1 | Standard Double Glazing Solution | 5mm+20A+5mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10521, glass sash model MA10519 |
| 2 | Optional Sash Glass | 5mm+12A+6mm+12A+5mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10521, glass sash model MA10520 |

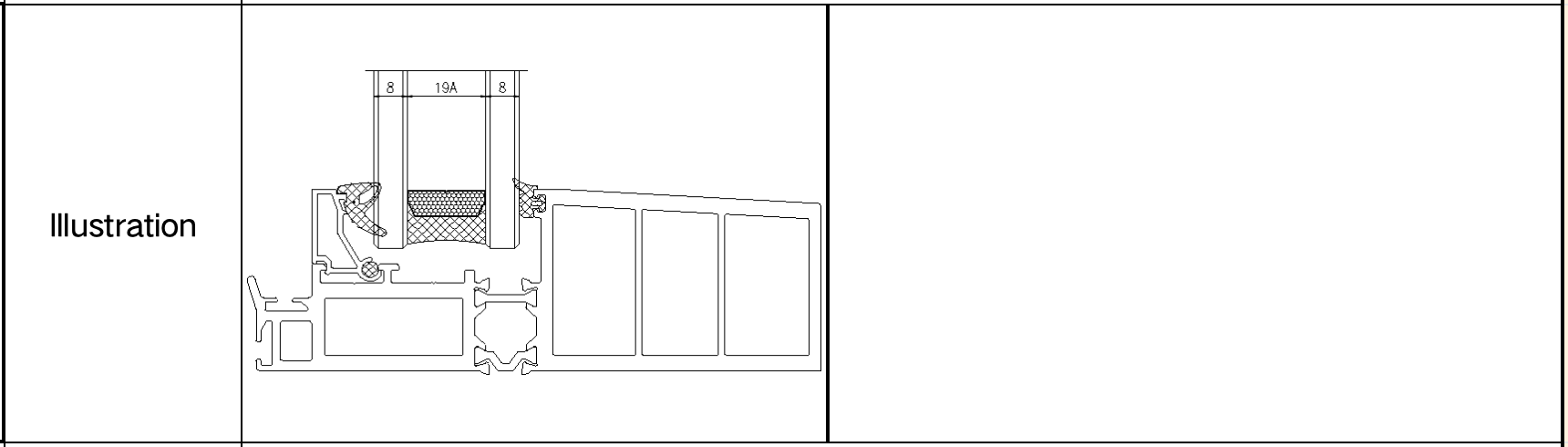

| Configuration | Fixed Glass |
|---|---|
| Standard Double Glazing Solution | 5mm+20A+5mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10511, total glass thickness: 30mm |
| Optional Fixed Glass | 6mm+18A+6mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10511, total glass thickness: 30mm |
| Optional Fixed Glass | 8mm+15A+8mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10511, total glass thickness: 30mm |
| Optional Fixed Glass | 10mm+20A+10mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10512, total glass thickness: 40mm |
| Optional Fixed Glass | 5mm+12A+6mm+12A+5mm Insulating Glass, with internal and external rubber gaskets, retaining strip model MA10512, total glass thickness: 40mm |
| Optional Fixed Glass | 12mm+24A+12mm Insulating Glass, internal rubber gasket model FSYB-102, external rubber gasket model FSYB-101, retaining strip model MA10513, total glass thickness: 48mm |
| Category | Details |
|---|---|
| Standard Configuration | 1) Opening Modes: Tilt & Turn (Standard), Casement (Optional) 2) Hardware: ① Tilt & Turn: HOPO Concealed Tilt & Turn Hardware, 180° Opening Angle ② Casement Only: HOPO 180° Casement Hardware, including full set of HOPO casement hinges, transmission boxes, lock points & keepers, load-bearing blocks 3) Integrated Vulcanized Welded Duckbill Gasket 4) Internal Sash Rounded Corner Processing 5) Frame Expansion Angle Code Gluing Process 6) Size Recommendations: • Tilt & Turn: Sash Width 500–750mm, Sash Height 650–2000mm; Handle Height ≥ 380mm (Excluding Frame) • Casement Only: Sash Width 400–750mm, Sash Height 650–1500mm; Handle Height ≥ 300mm (Excluding Frame) 7) Glass Sash Casement Opening Angle: 180° 8) Screen Sash: Standard High-Definition Mesh |
| Standard Configuration | 1) Glass: Xinyi Original Glass Sheet 2) Gaskets: Xingyao Wuzhou + Haida (Glass Section) 3) Thermal Insulation Strips: Luterdam 4) Profiles: Xinhe Aluminum Profiles |
| Optional Configuration | 1) Mesh: Optional Stainless Steel Security Mesh (High-transparency Mesh Not Available) 2) Ventilation: Optional Micro-ventilation Sash (Fixed Sash Width 225mm, Excluding Frame) |
| Notes | This series does not support flat bending or three-dimensional bending for the time being. New profiles and functions will be added based on future requirements. |
| Process Requirements | 1) 45° Corner Joints: Apply section waterproof glue; Apply waterproof glue at the joints of outer frame and mullion; Glue injection for angle codes 2) Thermal Insulation Strips: Comply with the new national standard |
| Product Features | Details |
|---|---|
| 1 | Main stress-bearing profile wall thickness: 2.0mm |
| 2 | Flush alignment of frame and sash (interior & exterior), sleek and modern design |
| 3 | Standard-equipped with high-load-bearing HOPO hardware (USA) |

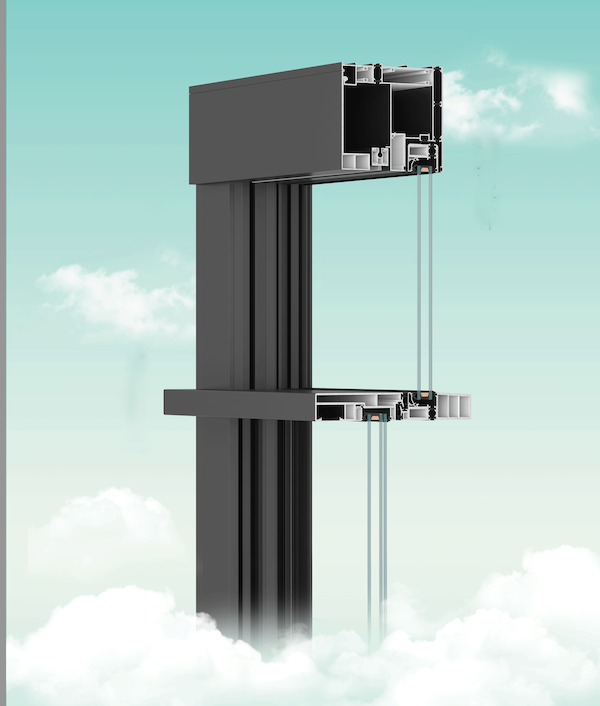

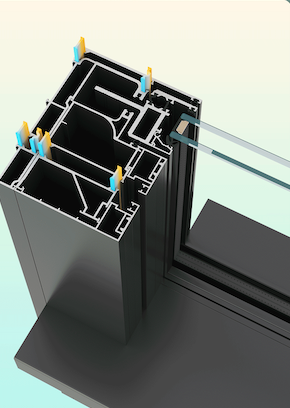

| 4 | 4-chamber structure of frame, ensuring profile strength |
| 5 | 6060-T66 profile, with 34% enhanced strength |
| 6 | Casement type adopts mushroom-shaped lock points and anti-pry lock keepers for safety and reliability |
| 7 | Glue-injected angle code connection process, enhancing corner joint strength |
| 8 | Glass sash with integrated machine + rounded corner process + corner protectors, preventing scratches, elegant and durable |
| 9 | Frame: 40mm grid-type thermal insulation strips; Sash: 35.3mm grid-type thermal insulation strips; vertical isothermal line, improving thermal insulation performance |
| 10 | Frame and sash are all standard-equipped with closed-cavity beveled retaining strips, ensuring safety |
| 11 | 4 layers of automotive-grade gasket sealing at opening position + integrated vulcanized welded duckbill gaskets, ensuring sealing performance |
| 12 | Internal and external glass gaskets are standard-equipped with Haida brand |
| 13 | Beveled retaining strips on the indoor side of glass sash, increasing recognition |
| 14 | Micro-ventilation function available |
| 15 | 8mm high water collection channel, improving water storage capacity and optimizing waterproof performance |
| 16 | 6 load-bearing ribs on frame, ensuring load-bearing capacity |
 |
 |
1.Prior to window and door design, the thickness of the installation wall shall be verified to select the corresponding product series and casing.
2.The interior and exterior colors shall be clearly specified when placing an order.
3.The glass specifications must be indicated in the order. In the absence of special instructions, the production shall be carried out in accordance with the standard - configured glass by default.
4.For construction scenarios where transportation is mainly done via elevators or stairwells, a reasonable combined frame design may be adopted.
5.The dimensions of the opening sash must be strictly controlled within the reasonable design range; otherwise, hardware installation failure or potential safety hazards may occur.
6.Technical Parameters—The data and information shall be subject to the latest updated version and information issued by the company.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
