| Parameter | Specification |
|---|---|
| Profile Thickness | 2.0mm |
| Frame Width | 115mm |
| Glass | 5mm+27A+5mm Insulating Glass |
| Hardware | CMECH |
| Opening Type | Dual Inward-Opening |
| Reference Dimension Range | 500mm ≤ Width ≤ 800mm, 500mm ≤ Height ≤ 1500mm |
Ebon Tongtai - Exploring Beauty, Offering Novelty
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
| Parameter | Specification |
|---|---|
| Profile Thickness | 2.0mm |
| Frame Width | 115mm |
| Glass | 5mm+27A+5mm Insulating Glass |
| Hardware | CMECH |
| Opening Type | Dual Inward-Opening |
| Reference Dimension Range | 500mm ≤ Width ≤ 800mm, 500mm ≤ Height ≤ 1500mm |
 |
 |
|
Air Tightness |
Water Tightness |
Wind Resistance |
U-Value |
Sound Insulation |
|
7 level |
5 level |
8 level |
1.5W(㎡-K) |
40db |
 |
 |
Performance Advantages:
1.Highstrength 6063T5 aluminum profiles.
2.Independent drainage design for strong water tightness.
3.304 stainlesssteel flyscreen for safe, durable ventilation.

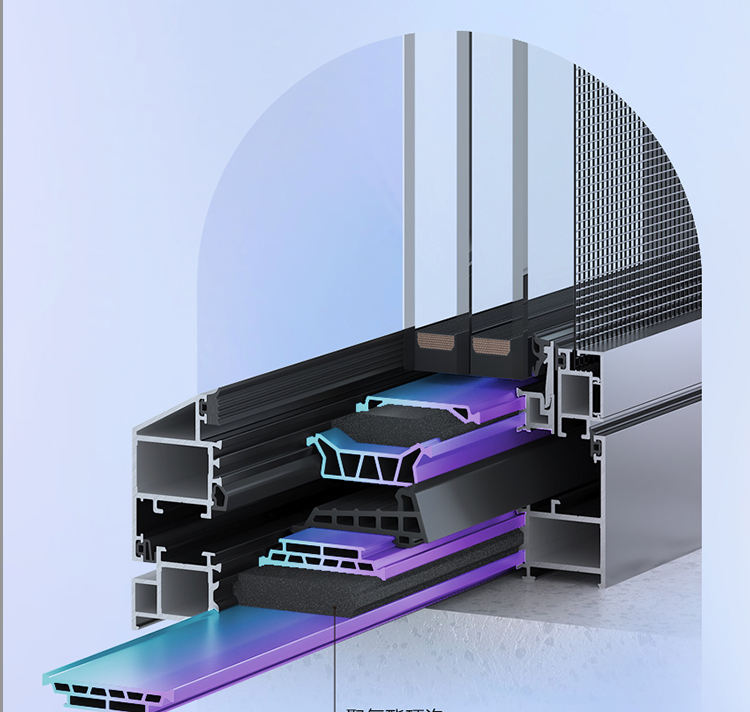

4.Vertical isothermal design for enhanced insulation and energy efficiency.

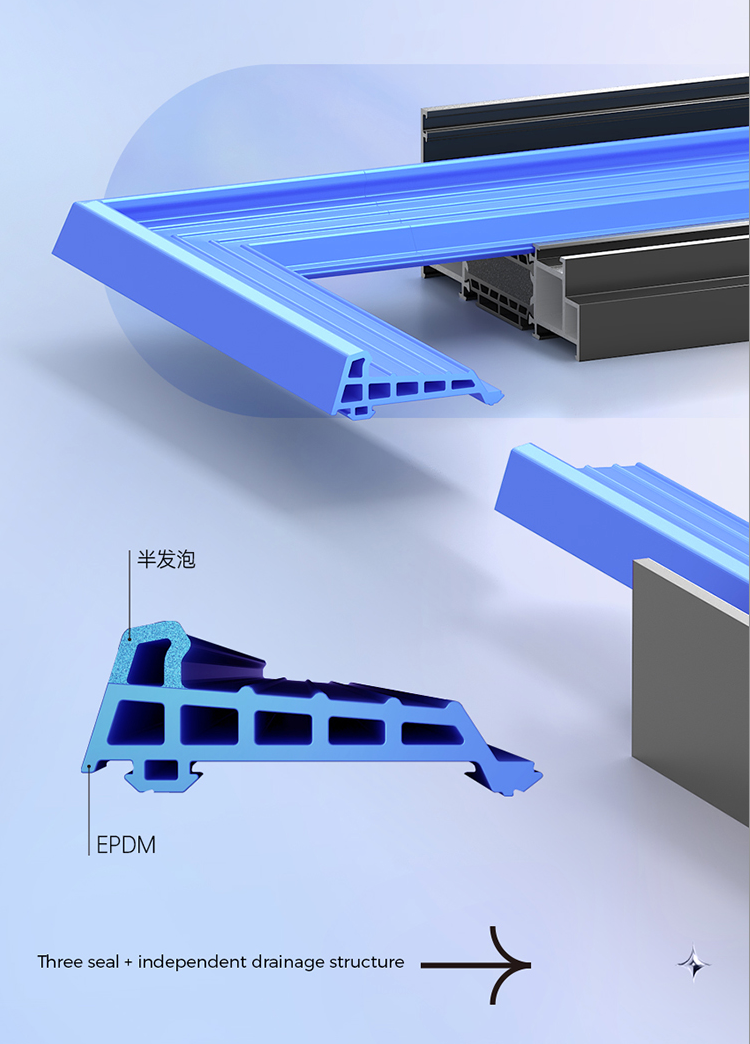

5.Tripleseal gasket system for water, moisture, and haze protection.
6.Coextruded softhard bent gasket for reliable sealing performance.
7.Injected corner connectors for stronger, more waterproof joints.
8.Premium metal corner guards for enhanced safety for you and your family.
 |
 |
Craftsmanship Detail Presentation
Sales Color Options
| Category | Color Options |
|---|---|
| Interior Color | Solid Color: Starry Sky Gray |
| Exterior Color | Mocha Brown, Starry Sky Gray |
| Item | Specification |
|---|---|
| Project Name | - |

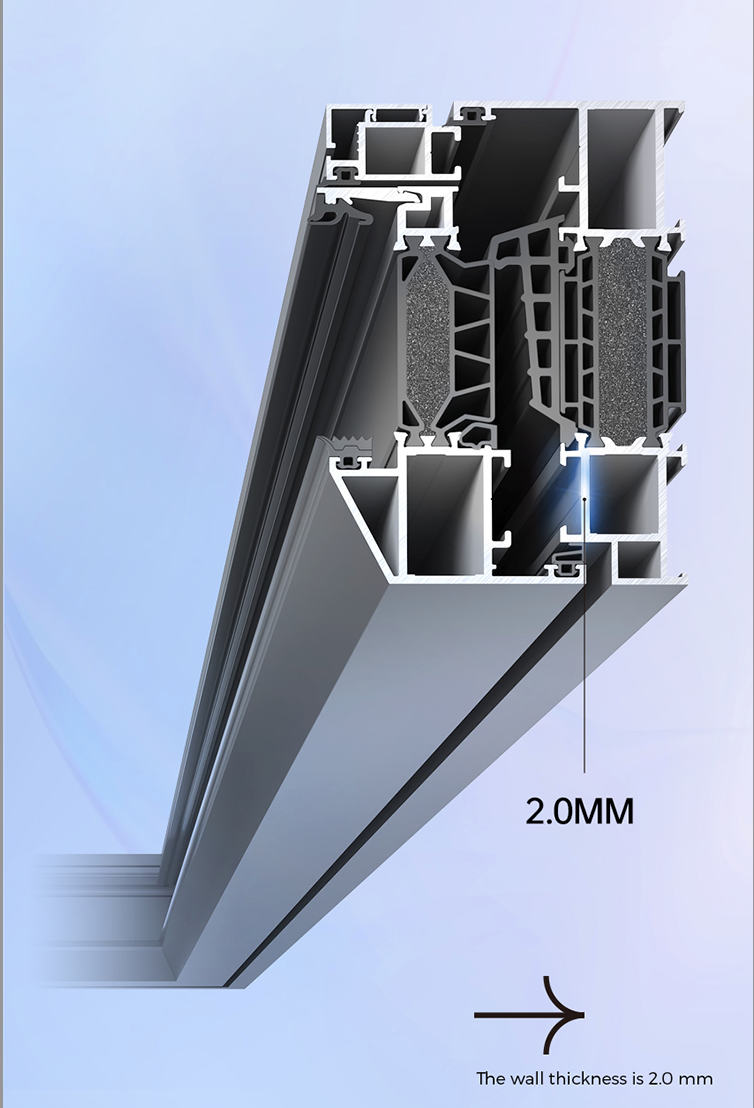

| Main Material Thickness | 2.0mm |

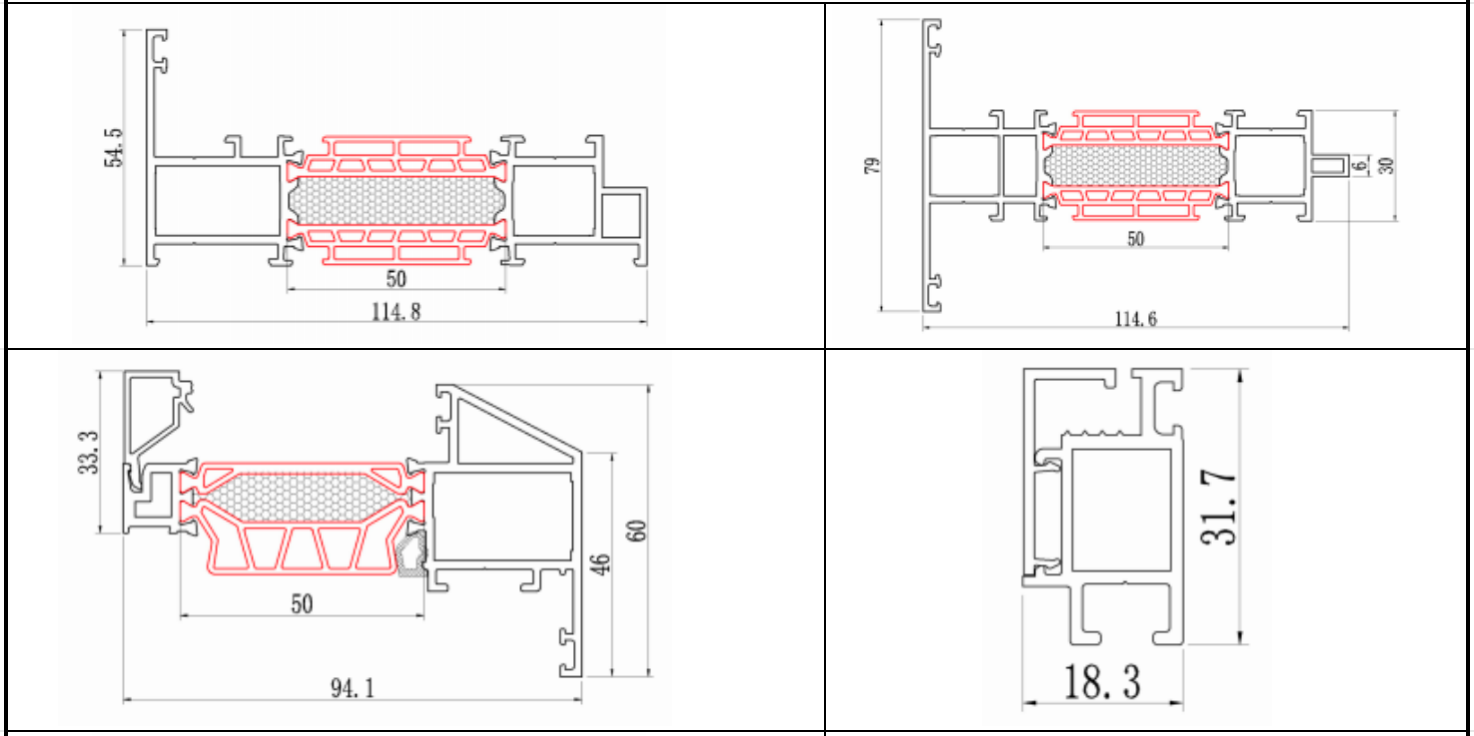

| Glass Sash Width & Thickness | Sash Width: 60mm; Sash Thickness: 94mm; Glass Notch Width: 50mm |

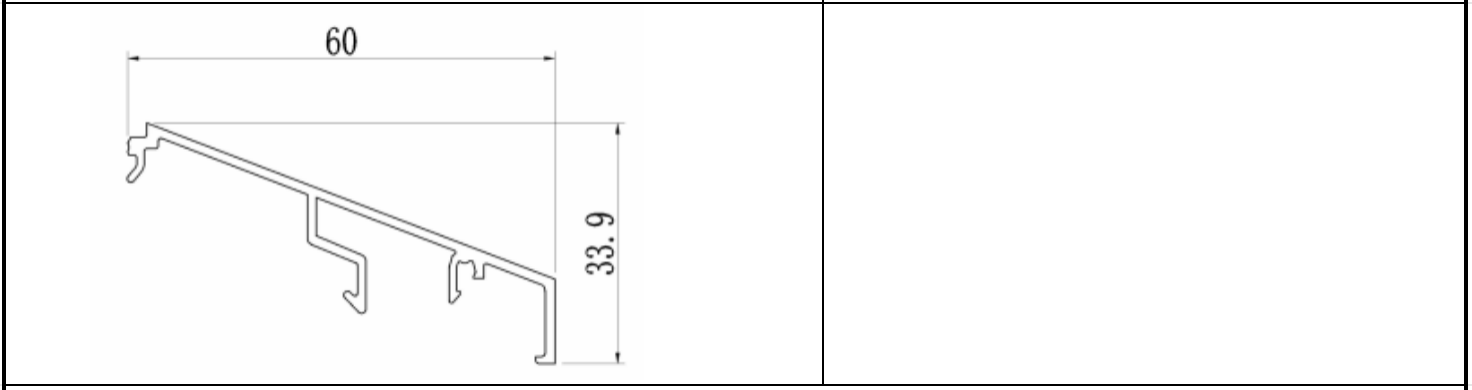

| Screen Sash Width & Thickness | Sash Width: 31.7mm; Sash Thickness: 18.2mm |
| Frame Width & Height | Wall Occupancy of Outer Frame: 115mm; Narrow Frame Width: 30mm; Wide Frame Width: 54.5mm |
| Configuration | Glass for Fixed/Opening Sash |
|---|---|

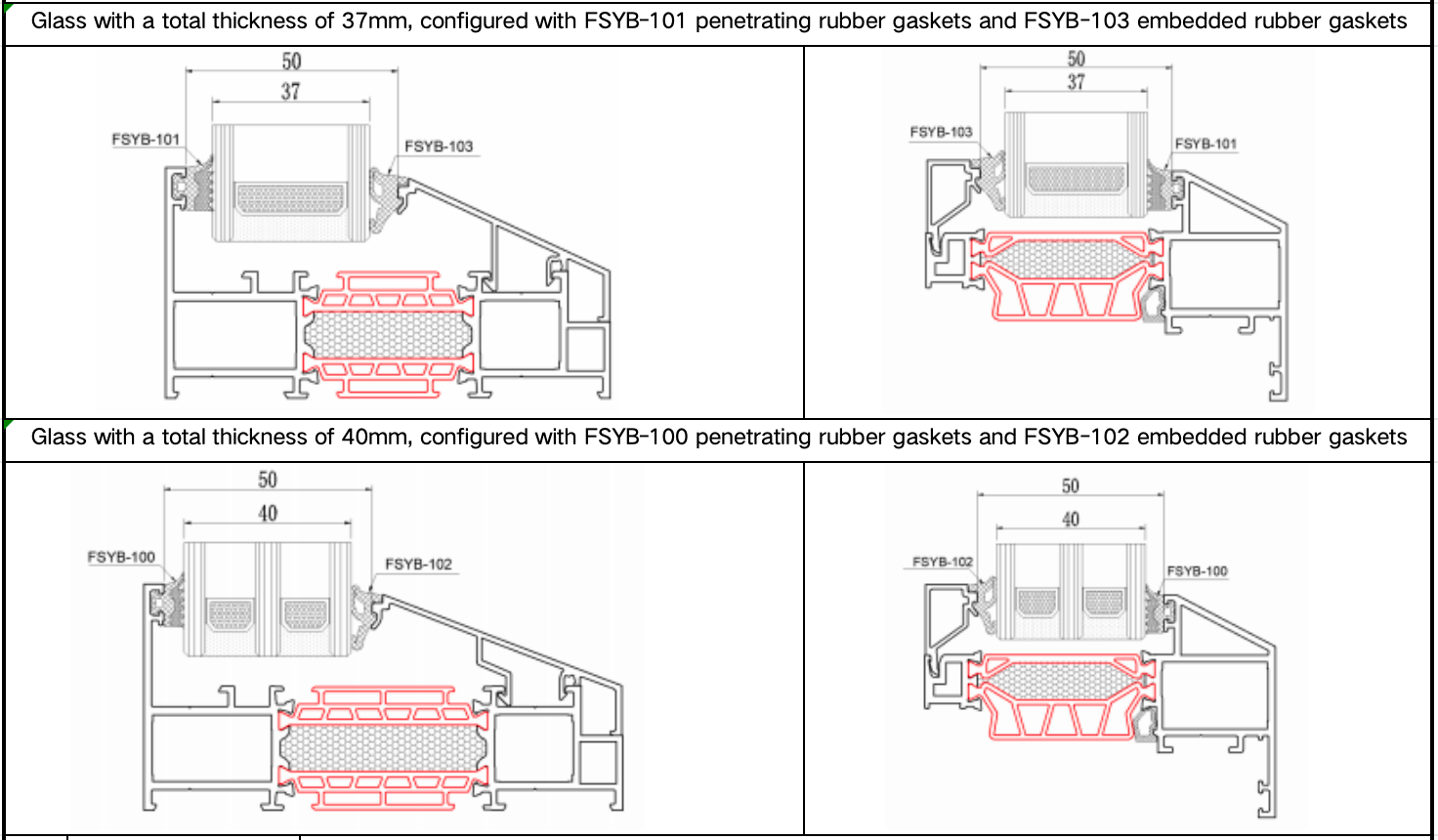

| Standard | 5mm+27A+5mm insulating glass, applicable for standard area (0–3㎡). Rubber gasket configuration refers to the 37mm total thickness glass solution shown above. |

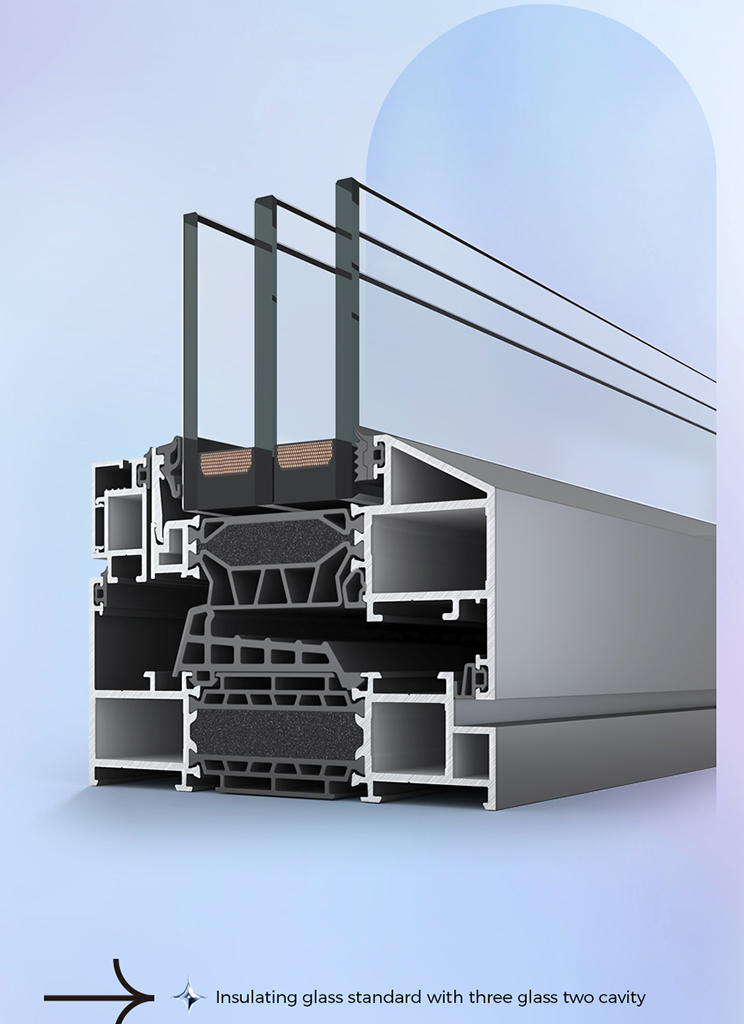

| Optional | 5mm+12A+6mm+12A+5mm triple-glazed double-cavity glass, applicable for standard area (0–3㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above. |
| Optional | 6mm+24A+6mm insulating glass, applicable for standard area (3㎡–3.5㎡). Rubber gasket configuration refers to the 37mm total thickness glass solution shown above. |
| Optional | 8mm+24A+8mm insulating glass, applicable for standard area (3.5㎡–4.5㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above. |
| Optional | 10mm+20A+10mm insulating glass, applicable for standard area (4.5㎡–6.5㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above. |
| Optional | 12mm+16A+12mm insulating glass, applicable for standard area (6.5㎡–12㎡). Rubber gasket configuration refers to the 40mm total thickness glass solution shown above. |
| Optional | For other requirements, calculate according to the total glass thickness of 37/40mm and configure the corresponding accurate rubber gaskets. |
 |
 |
| Configuration Type | Specification |
|---|---|
| Standard | High-clarity mesh as standard; diamond mesh available as an option. High-transparency mesh is not supported. |
1. Dual inward-opening. The glass sash is configured with tilt & turn windows as standard, and inward casement windows are available as an option.

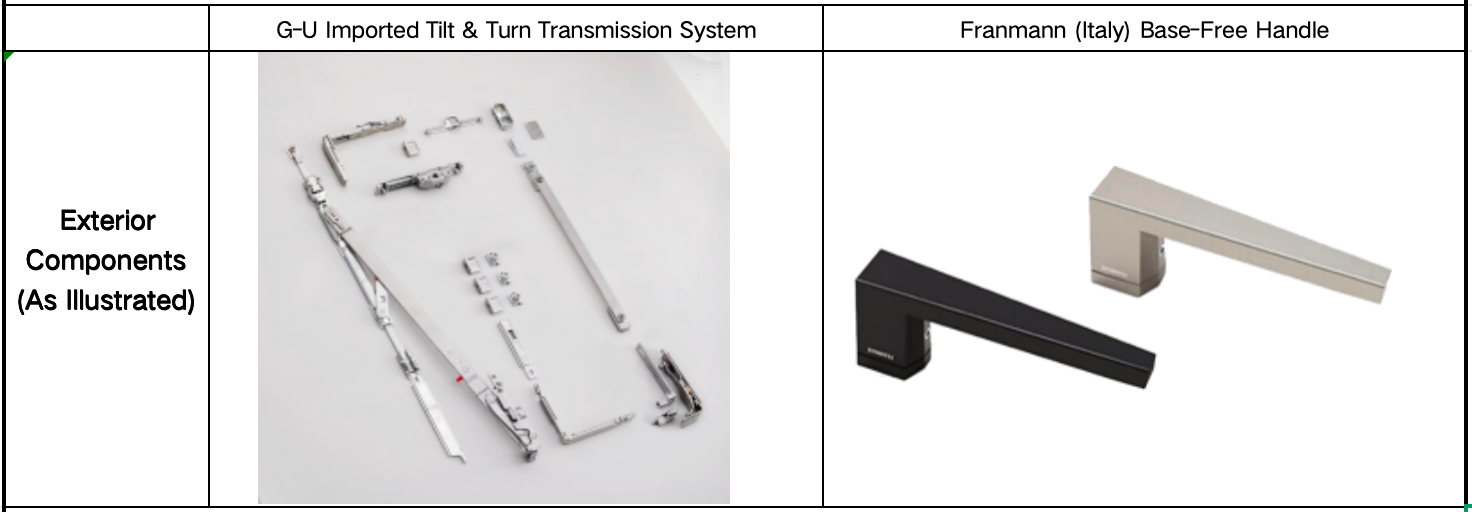

2-1.Tilt & turn: G-U concealed tilt & turn internal hardware. The standard opening angle is 90°, and 180° is available as an option.
2-2.Inward casement (non-tilt & turn): CMECH 180° inward casement internal hardware, including a full set of CMECH inward-opening hinges, transmission boxes, lock points & strike plates, and load-bearing blocks.

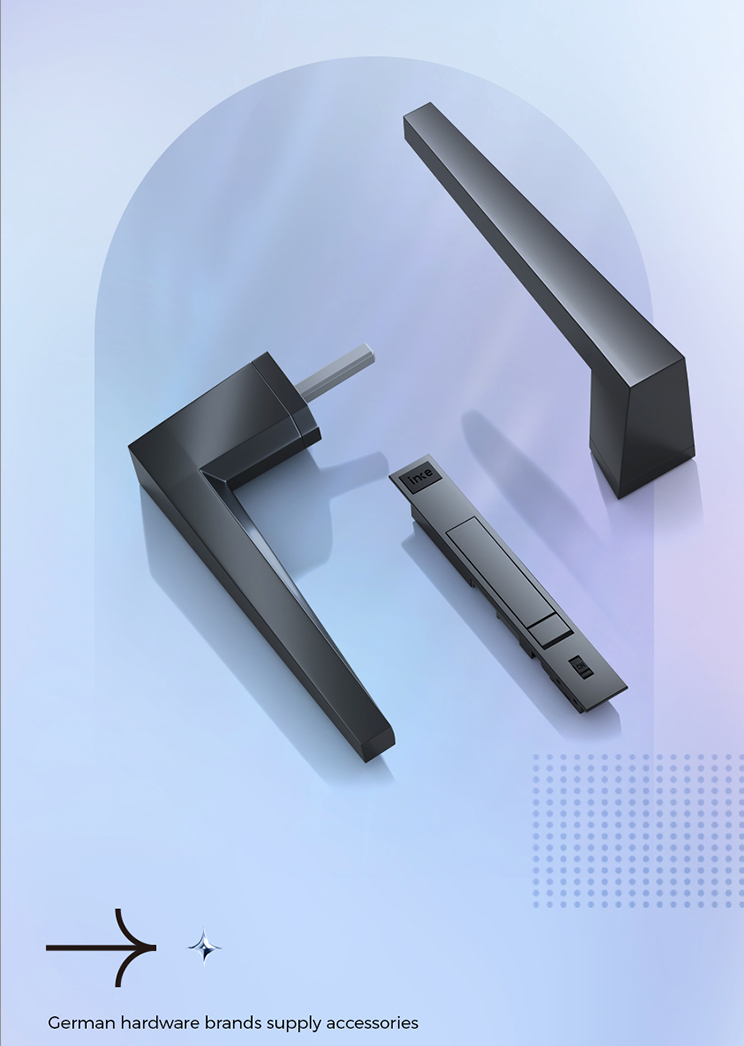

3.Franmann base-free handles. The standard color is pearl brown, and graphite gray is available as an option.
4.Special-shaped multi-cavity thermal insulation strips.
5. Polyurethane foam injection process.
6. Integrated vulcanized welded duckbill rubber gaskets.

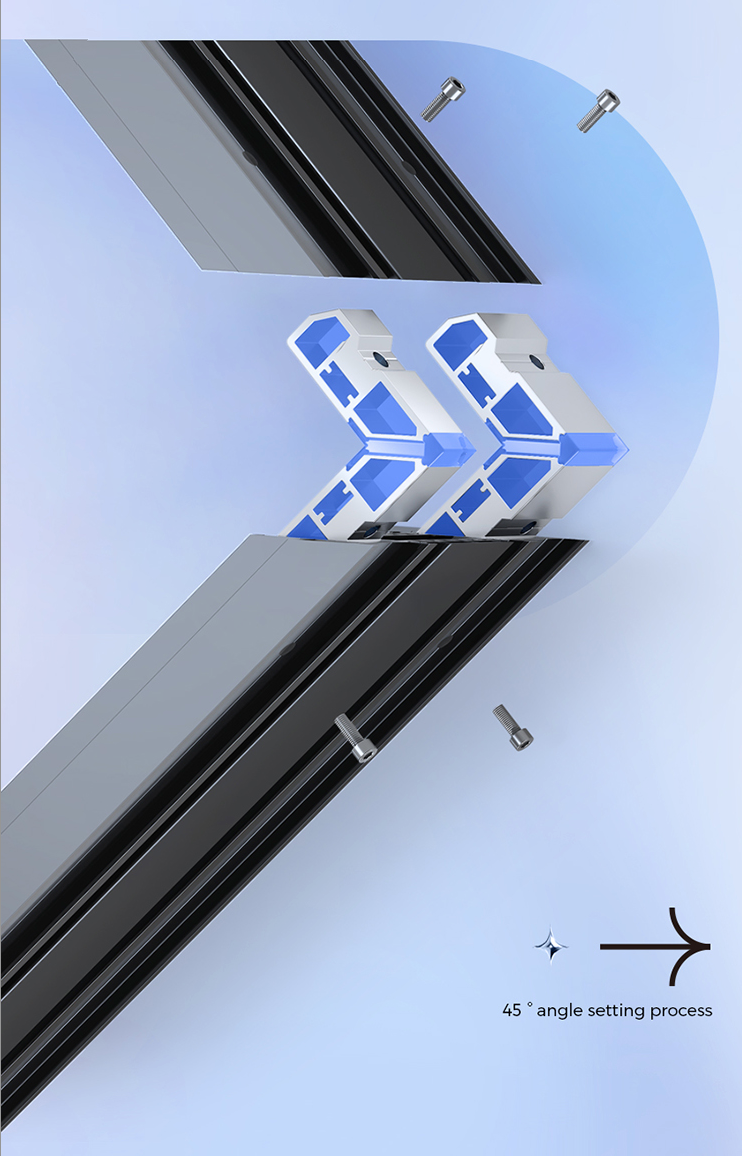

7.Frame expansion corner key gluing process and glass sash corner crimping gluing process.
8. Corner-assembled gluing plastic plug process.

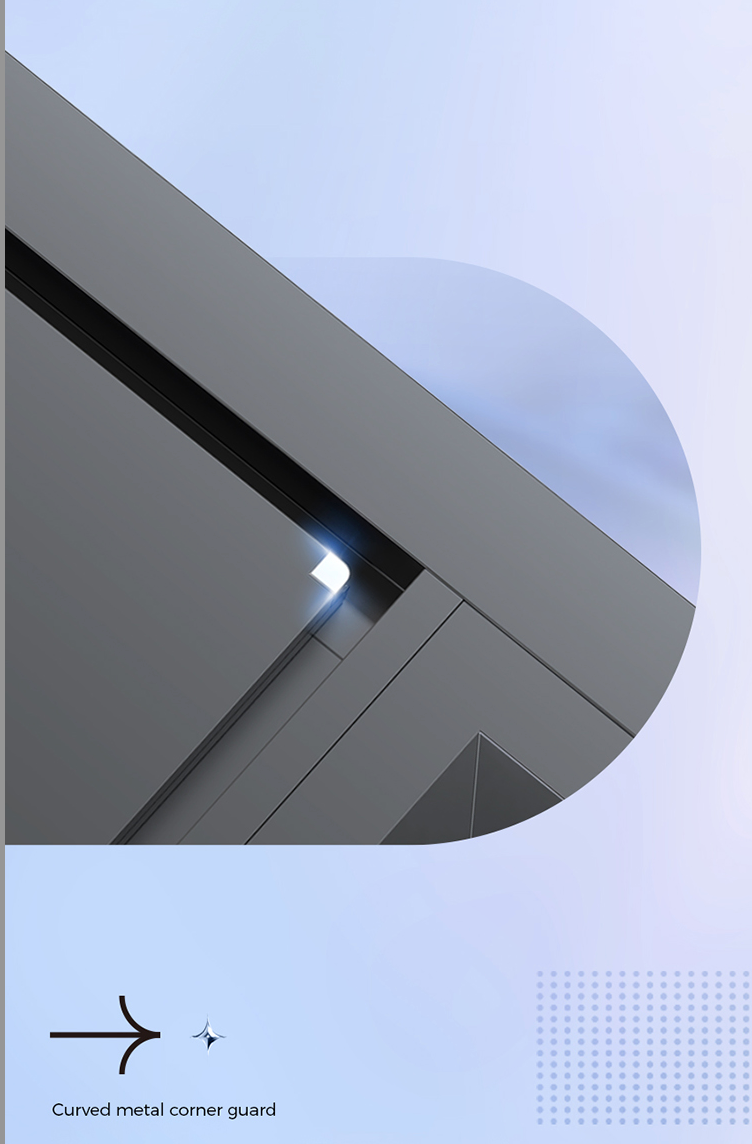

9.Stainless steel quick-installation corner guards.
10.Opening sash size limits: Sash width 500–800mm, sash height 500–1500mm.

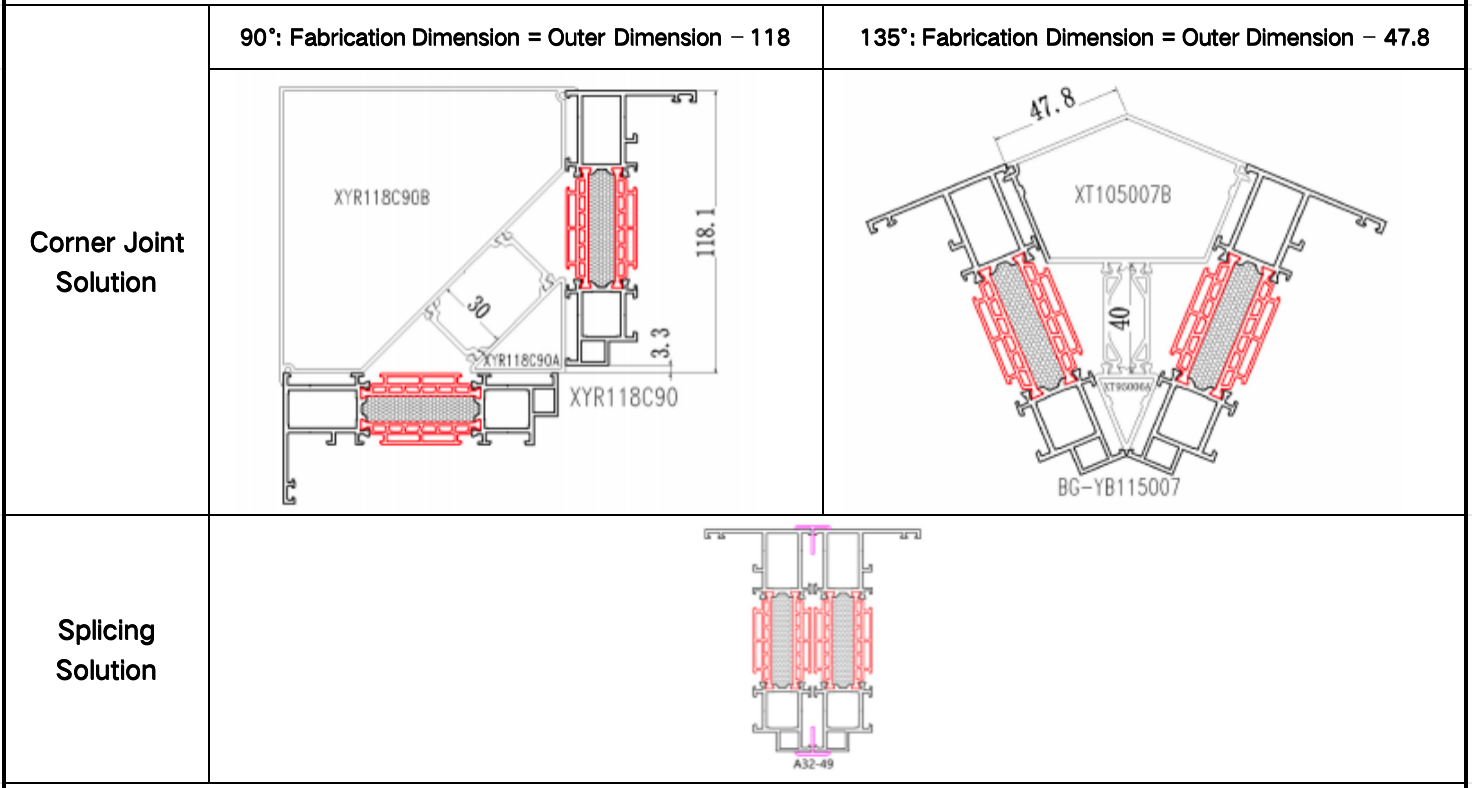

Configuration of Corner Joints and Mullion Materials
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
