| Parameter | Specification |
|---|---|
| Profile Thickness | 2.0mm |
| Frame Width | 75mm |
| Glass Configuration | 8mm+15A+8mm Insulated Glass |
| Sash Width Range | 400mm - 700mm |
| Sash Height Range | 1800mm - 2500mm |
 |
20+years Deeply committed to high-performance thermal-break windows and doors. |
 |
100,000㎡ Four modern intelligent manufacturing bases. |
 |
200+ High-performance thermal-break window and door technology patents. |
 |
≥97% 3i-Low-E glass-advanced thermal insulation with over 97% UV blocking & 95% IR blocking, 10℃ cooler than ordinary glass. |
| Air Tightness | Water Tightness | Wind Resistance | U-Value (Thermal Insulation) | Sound Insulation |
|---|---|---|---|---|
| Level 3 | Level 3 | Level 4 | 3.5 W/(㎡·K) | 25 dB |
Performance Disadvantages:
● Highstrength 6063T5 aluminum profiles
● 90° folding design saves space when opened
● Concealed overhead track with a central pivot for a minimalist, stylish appearance
● Premium powdercoating finish with superior weather resistance and refined texture
● EPDM foam sealing gasket offering excellent weather resistance
● Optional decorative glass with innovative designs and exquisite craftsmanship

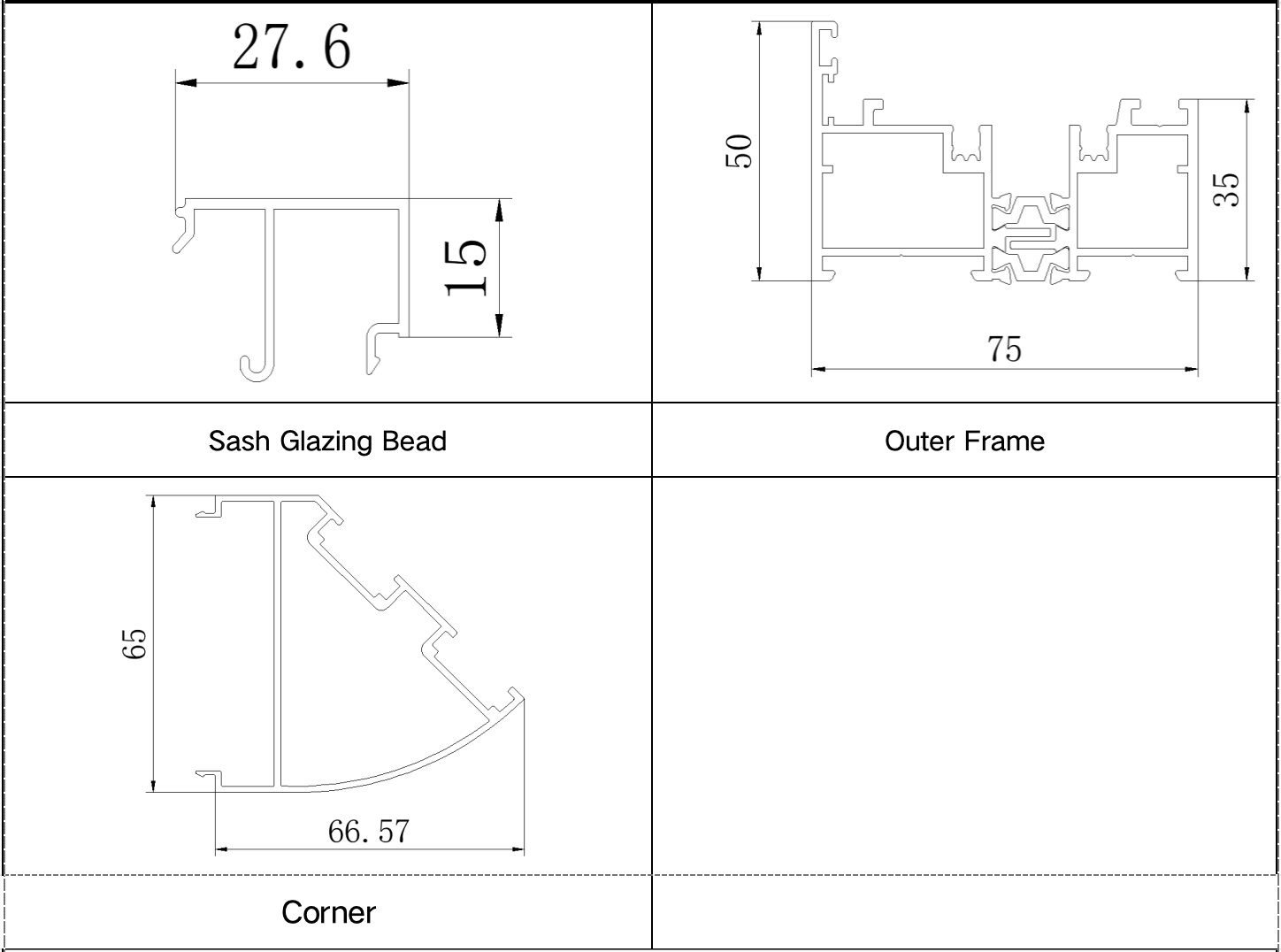

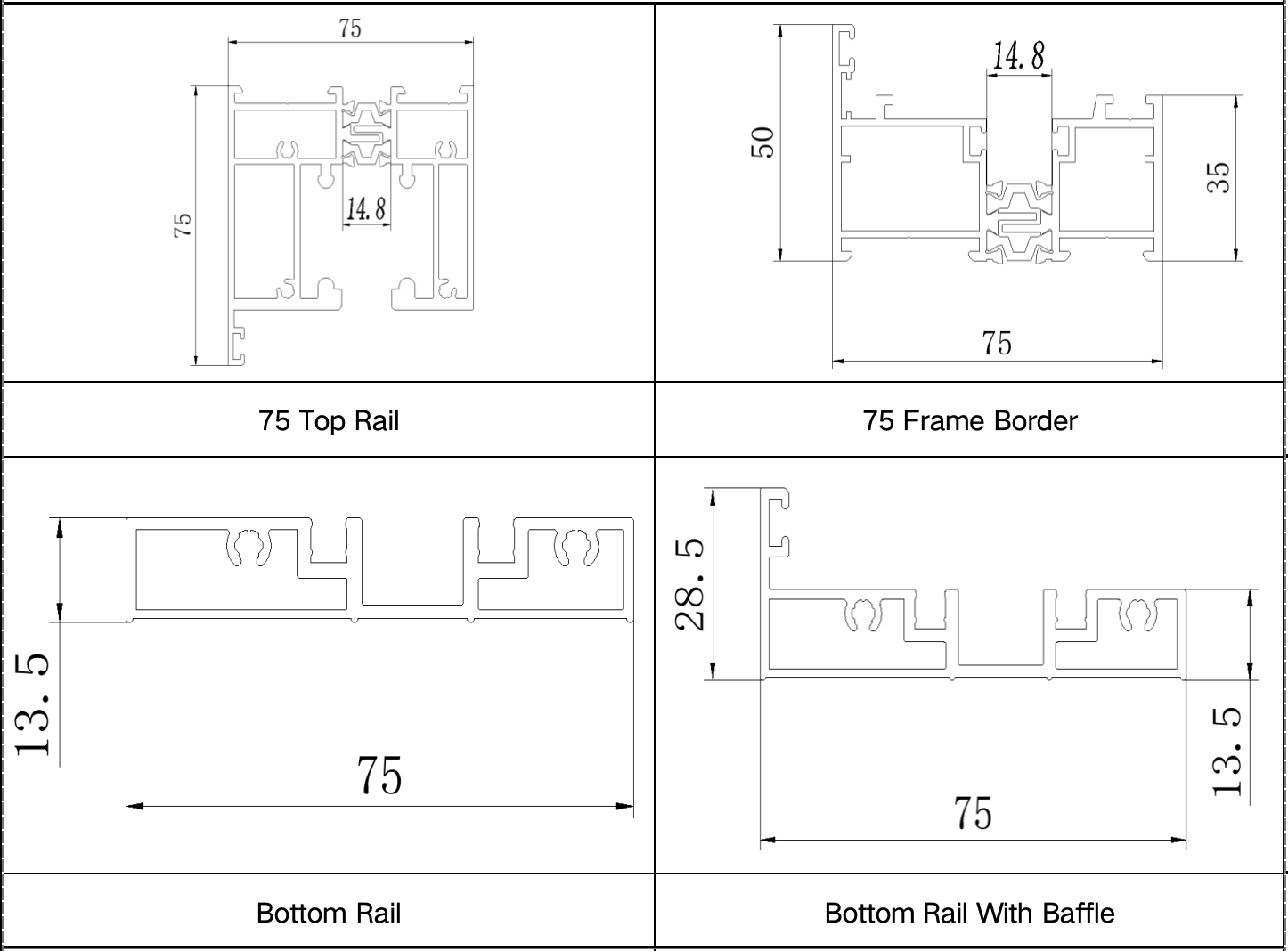

Craftsmanship Detail Presentation
Sales Colors
| Category | Available Colors |
|---|---|
| Interior Colors | Starry Sky Grey, Cream White, Mocha Brown, Elegant Black |
| Exterior Colors | Starry Sky Grey, Cream White, Mocha Brown, Elegant Black |
| Parameter Name | Dimension Data |
|---|---|
| Project Name | - |
| Main Material Thickness | Frame: 2.0mm (local), Sash: 1.8mm |
| Glass Sash Width & Thickness | Sash Width: 60mm, Sash Thickness: 84.8mm, Glass Groove: 41mm |
| Screen Sash Width & Thickness | - |
| Frame Width & Wall Occupancy | Wall Occupancy: 85mm, Frame Width: 53mm |
| Configuration | Opening Sash Glass |
|---|---|
| Standard Configuration | 5+20A+5 Insulated Glass, Bended Grey Aluminum Strip with Logo, Glued Inside and Outside |
| Type | Specification |
|---|---|
| Standard (Optional) | 1. Standard outward opening folding door 2. Equipped with Kaisenberg handle and hardware 3. Single-sided handle, swing door handle with lock cylinder 4. Size limit: sash width 400-700mm, height 800-2500mm, single sash load 25kg Default handle height: 1000mm |
| Optional Accessory | 1. Bottom rail without baffle 2. Double-sided handle |
| Notice | Refer to details and accessory list for reference |
Key Information & Core Selling Points
● Unobstructed Panoramic Views: Featuring a minimalist narrow frame design, the door panels stack completely out of the way when folded, maximizing your opening and inviting breathtaking snow mountain views seamlessly into your interior.
● Ultimate Thermal Insulation: Crafted with premium thermal break aluminum profiles and multi-layer 3i-Low-E insulated glass, this system effectively blocks indoor-outdoor heat transfer. It keeps the interior as warm as spring even in freezing weather while preventing glass condensation.
● Heavy-Duty Capacity & Smooth Operation: Engineered specifically for oversized and ultra-high glass panels. Equipped with imported load-bearing rollers and a precision hardware system, it ensures light, smooth sliding and folding without sagging over time.
● Barrier-Free Flush Track Design: The bottom track utilizes a recessed or ultra-low profile design, providing a seamless transition between indoor and outdoor flooring. It prevents tripping, is easy to clean, and visually extends your living space.
● High-Standard Weather Sealing: Utilizing automotive-grade EPDM weatherstripping with a multi-layered seal structure, it maintains superior wind resistance and watertight performance even in the harshest weather conditions.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
